Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

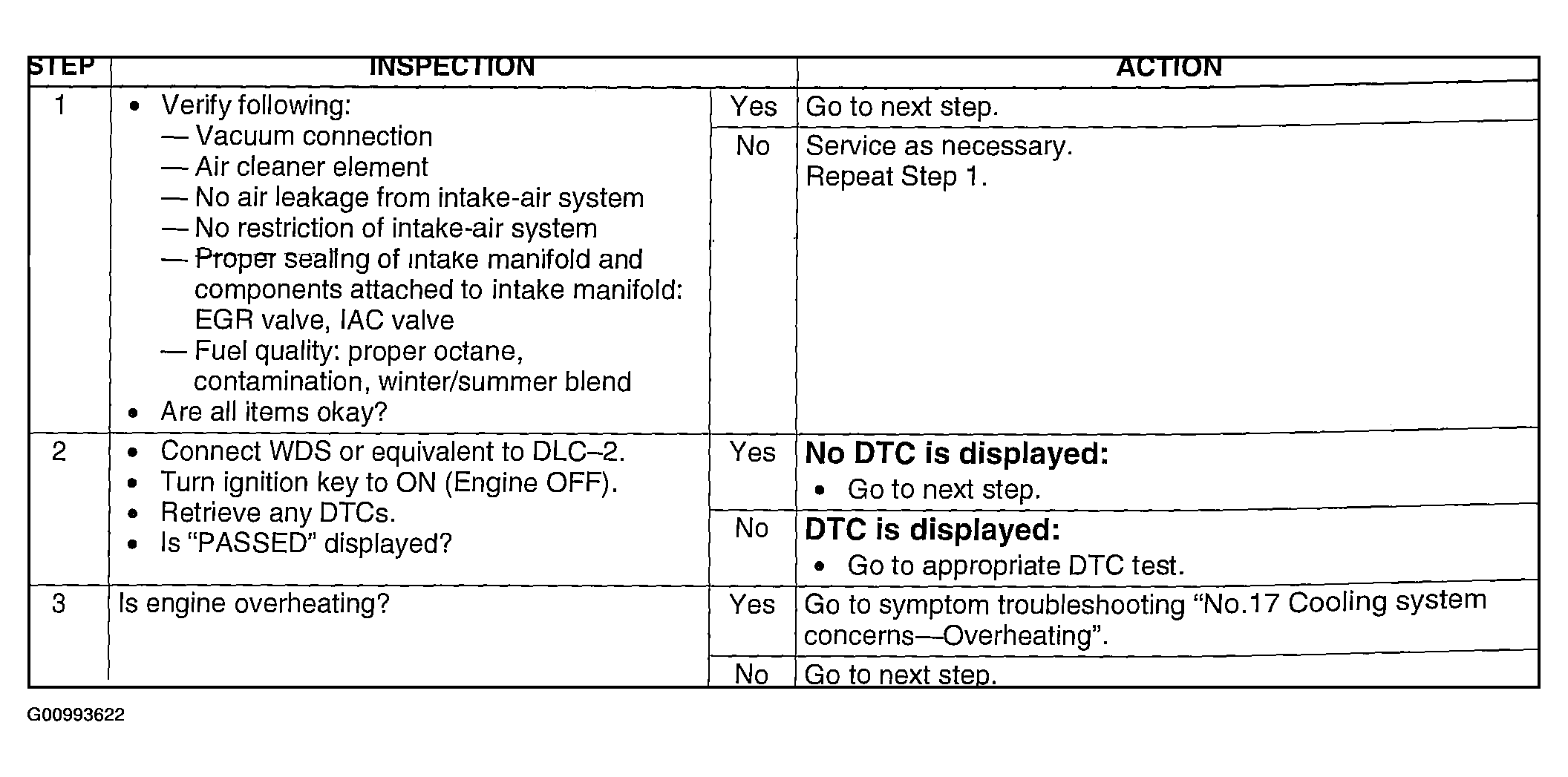

Fig 1: Symptom No.12 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

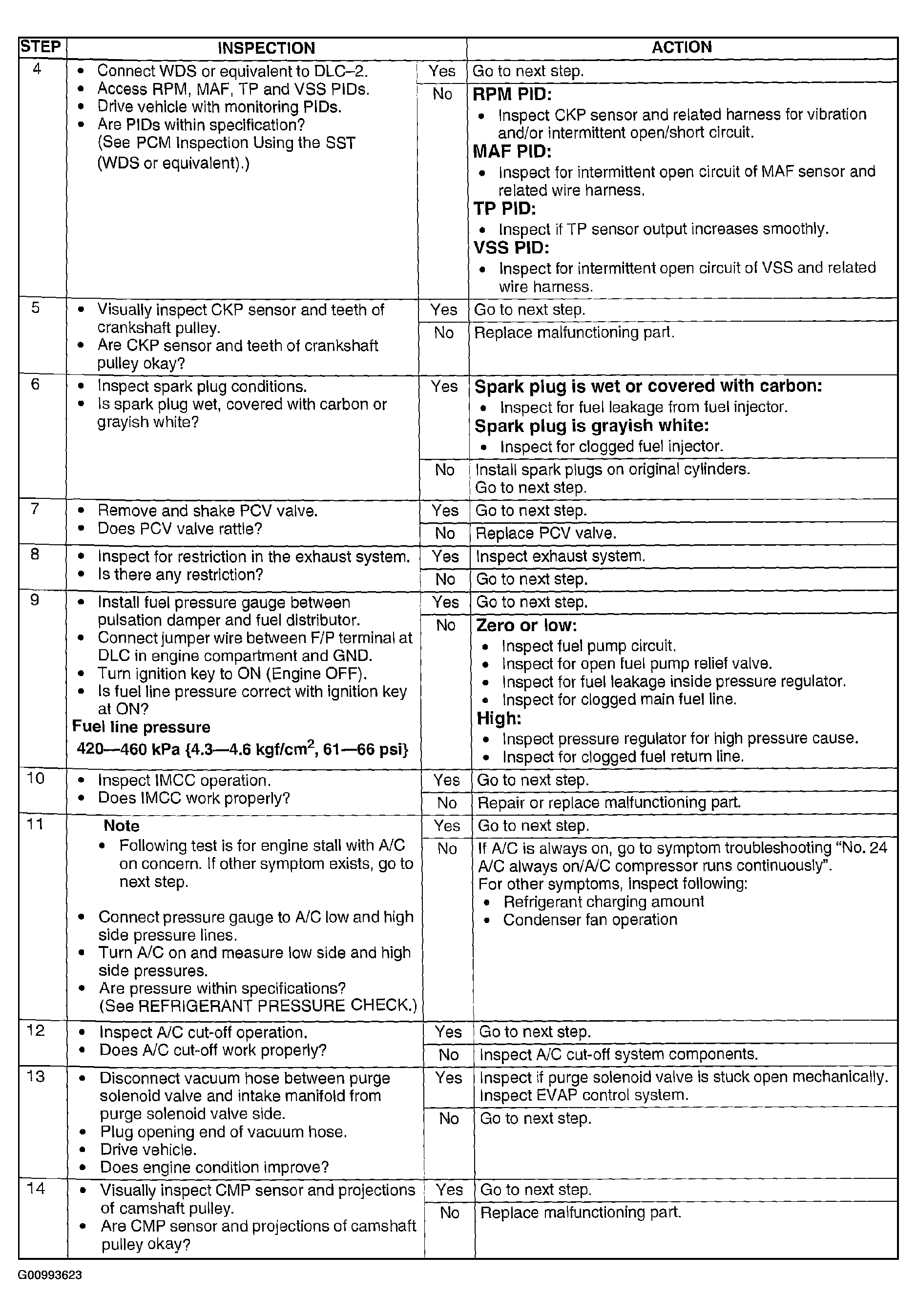

Fig 2: Symptom No.12 Diagnostic Procedure Chart (Step 4-14)

Courtesy of MAZDA MOTORS CORP.

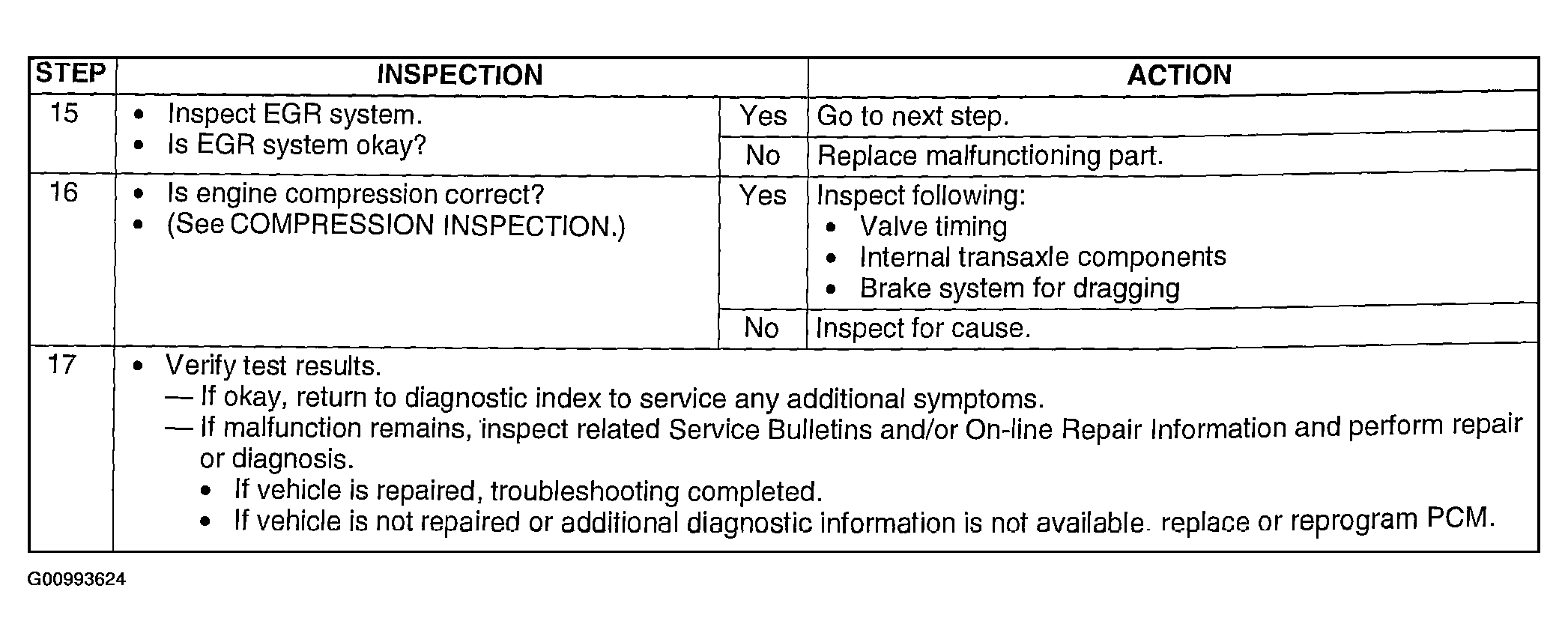

Fig 3: Symptom No.12 Diagnostic Procedure Chart (Step 15-17)

Courtesy of MAZDA MOTORS CORP.
