Intake Manifold Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the intake manifold installation bolts in the order indicated.
Tightening torque

8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

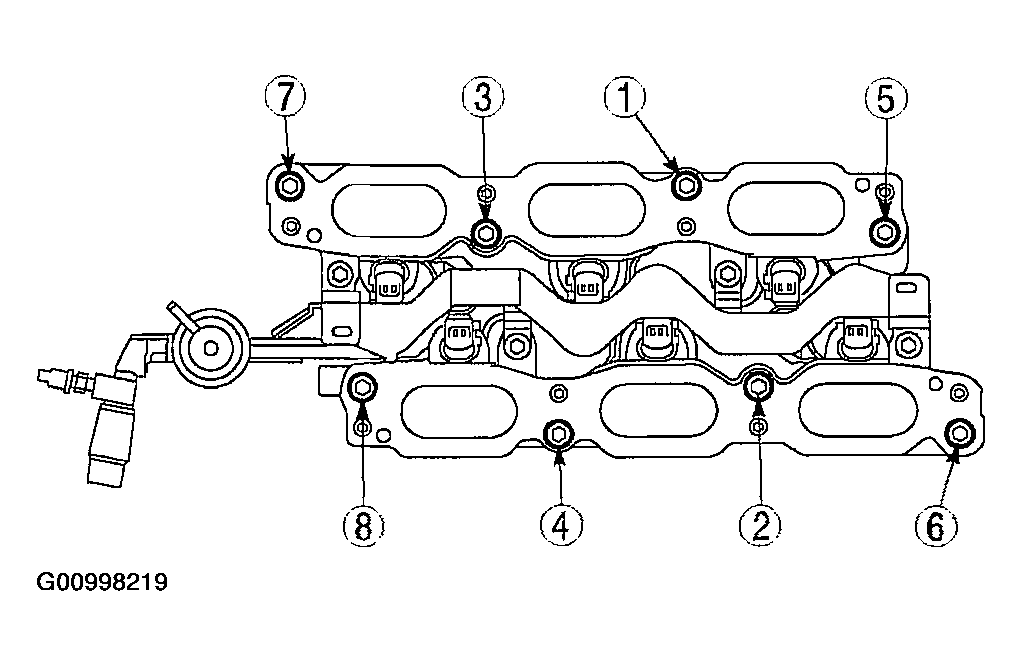

Fig 1: Tightening Sequence Order Of Intake Manifold Bolts
Courtesy of MAZDA MOTORS CORP.
