Dynamic Chamber Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the dynamic chamber installation bolts in the order indicated.
Tightening torque

8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

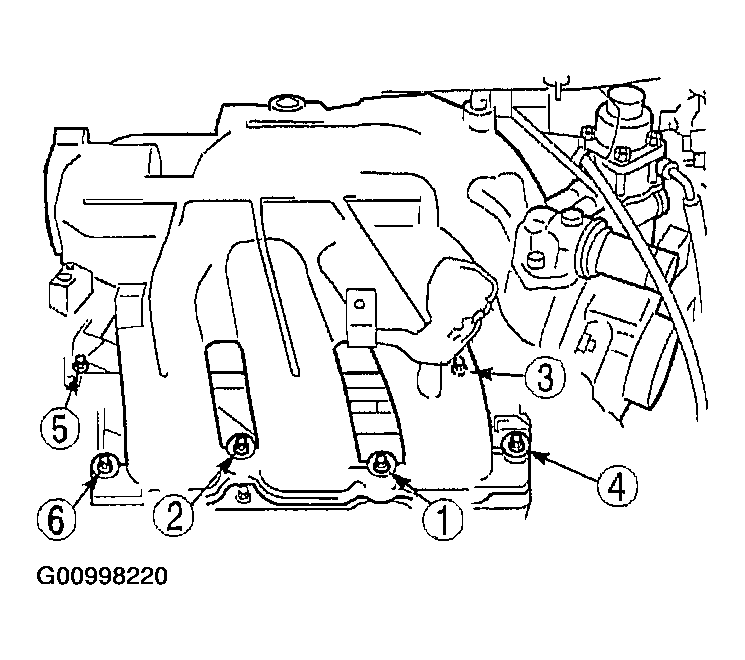

Fig 1: Tightening Sequence Order Of Dynamic Chamber Bolts
Courtesy of MAZDA MOTORS CORP.
