Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

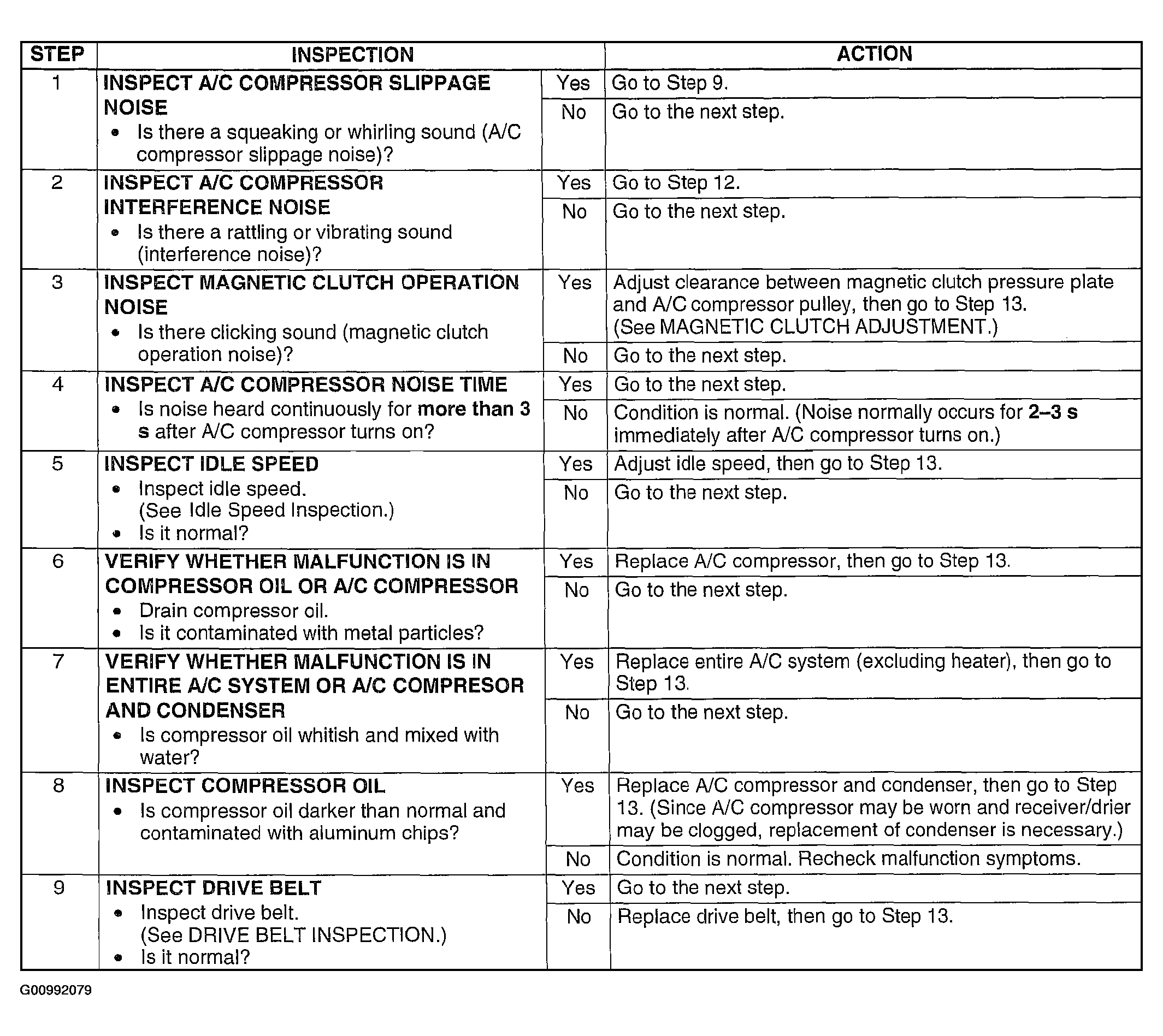

Fig 1: Diagnostic Procedure - Noise While Operating A/C System (Steps 1-9)

Courtesy of MAZDA MOTORS CORP.

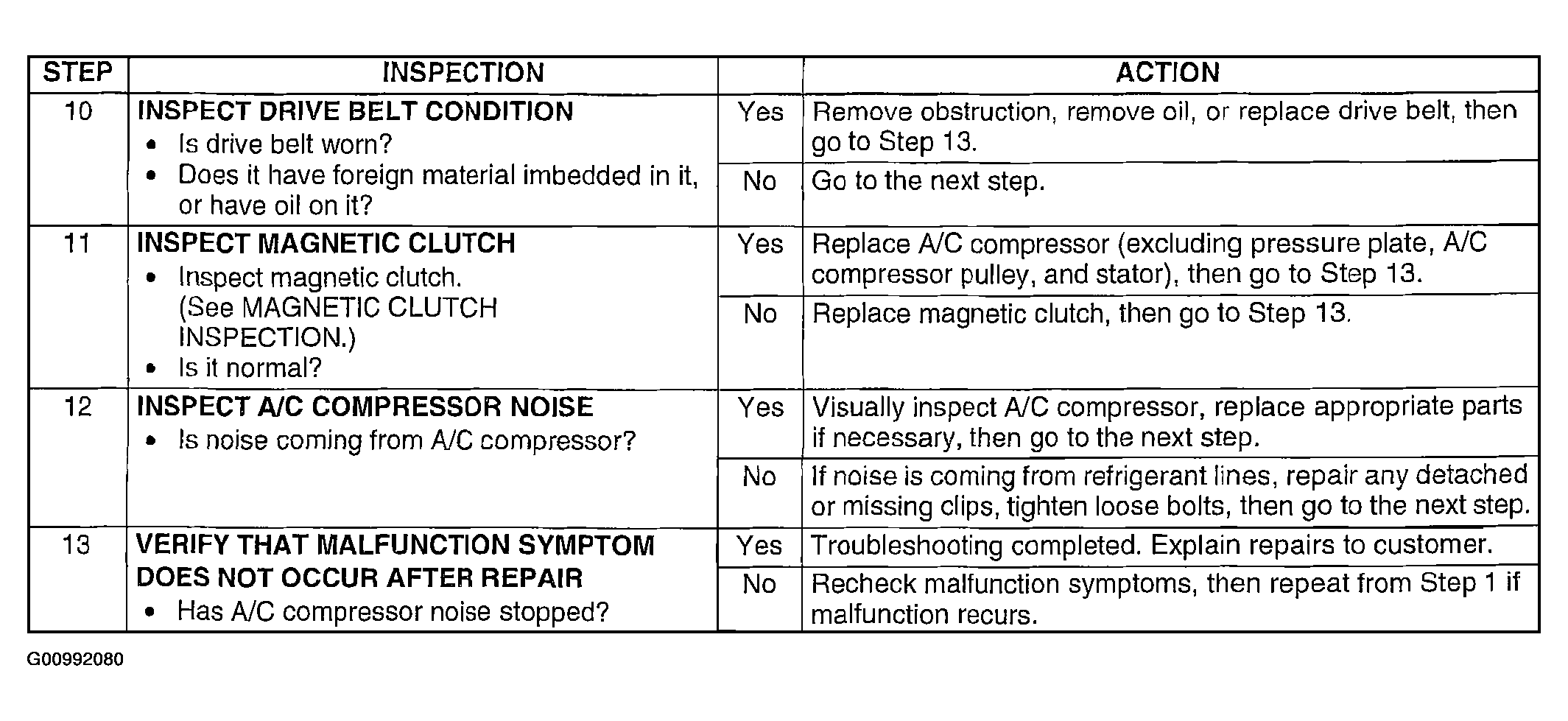

Fig 2: Diagnostic Procedure - Noise While Operating A/C System (Steps 10-13)

Courtesy of MAZDA MOTORS CORP.
