Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

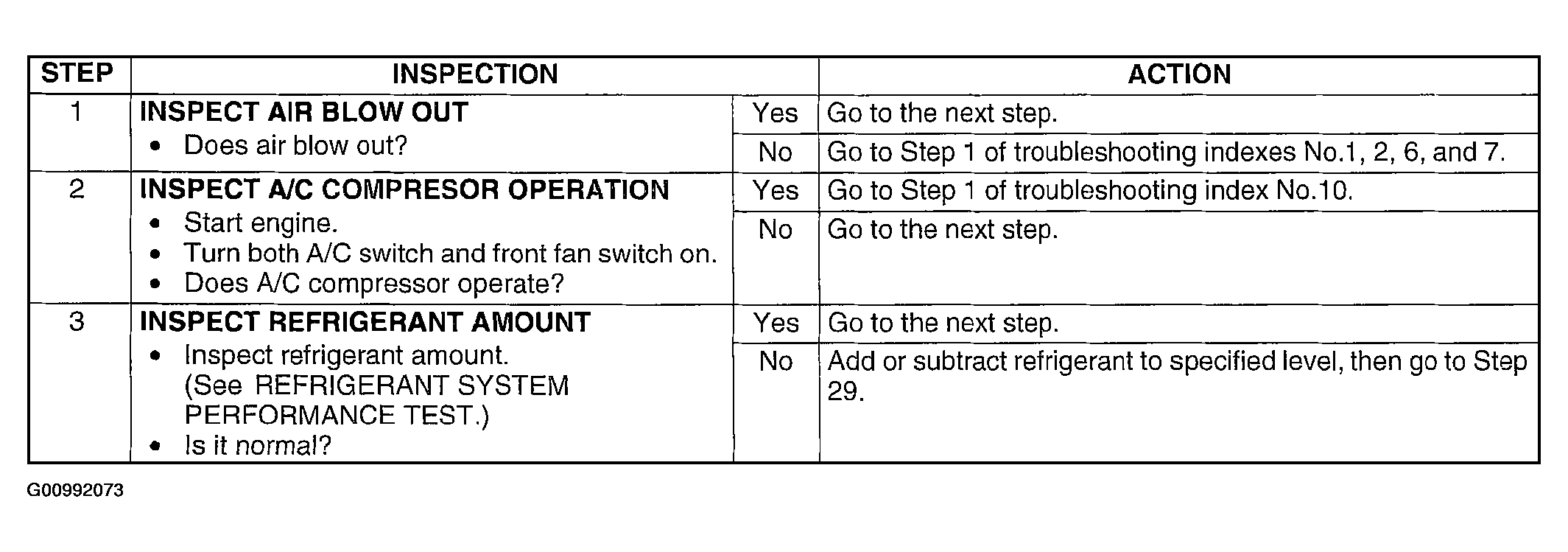

Fig 1: Diagnostic Procedure - No Cool Air (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Diagnostic Procedure - No Cool Air (Steps 4-9)

Courtesy of MAZDA MOTORS CORP.

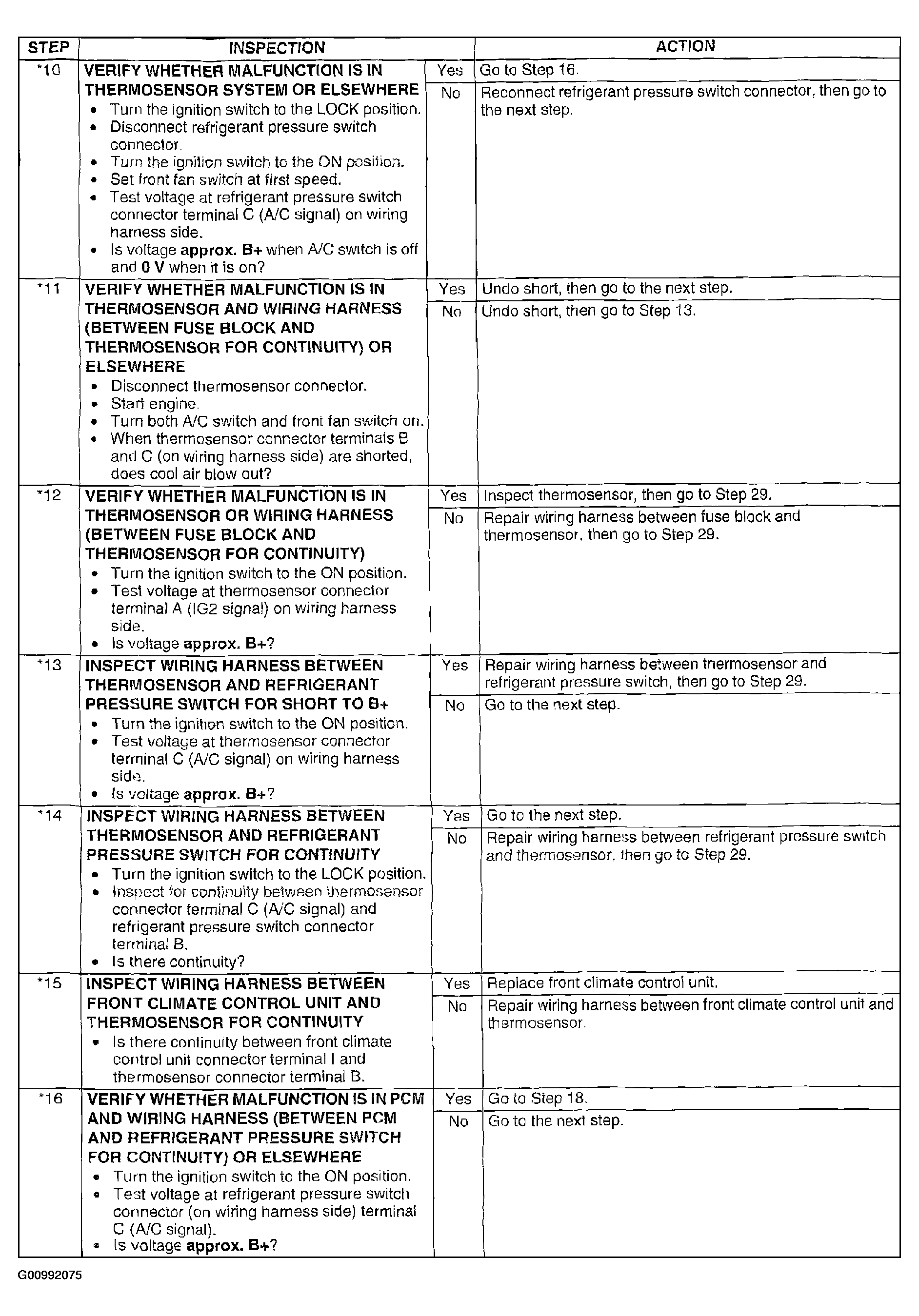

Fig 3: Diagnostic Procedure - No Cool Air (Steps 10-16)

Courtesy of MAZDA MOTORS CORP.

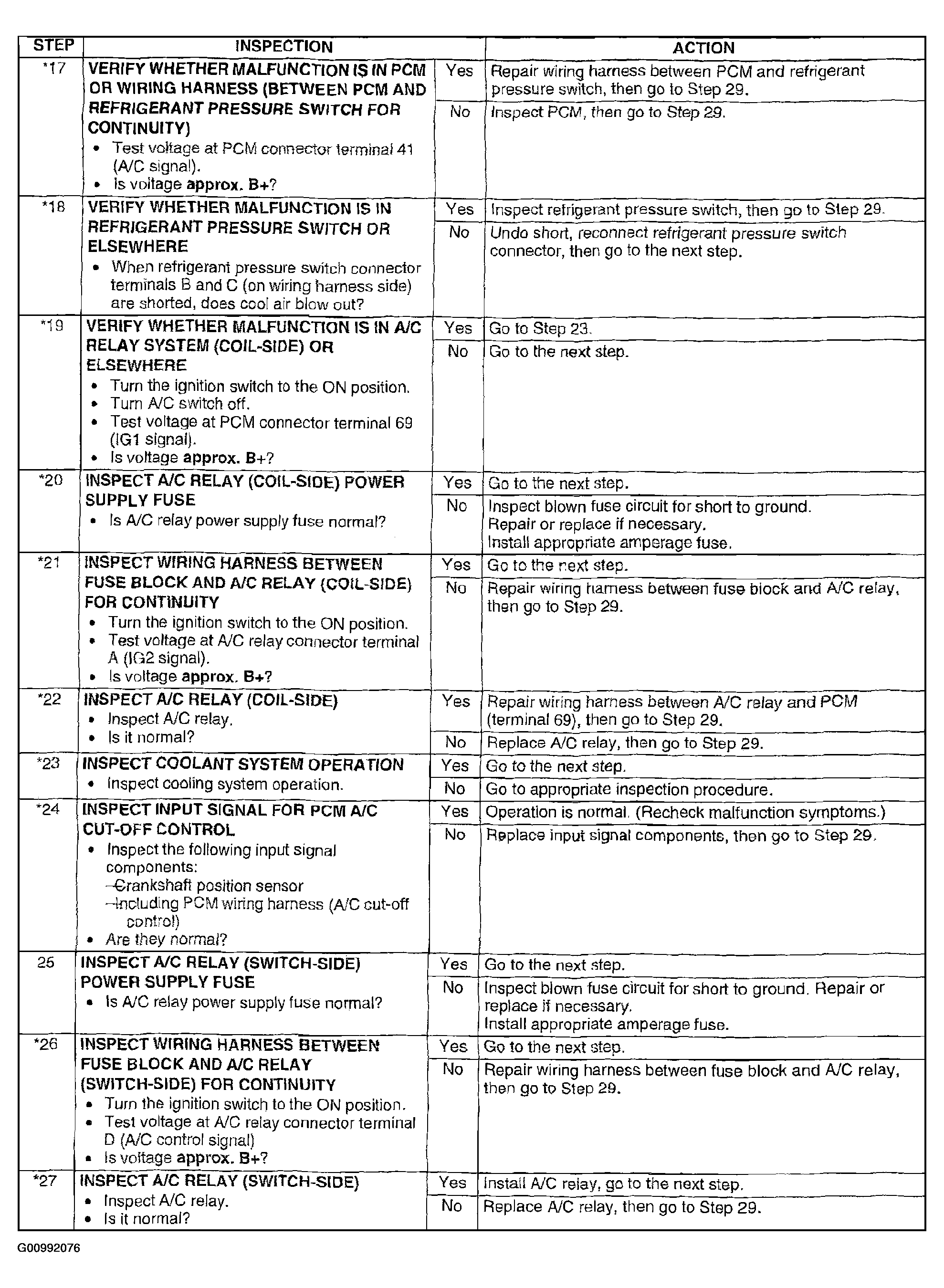

Fig 4: Diagnostic Procedure - No Cool Air (Steps 17-27)

Courtesy of MAZDA MOTORS CORP.

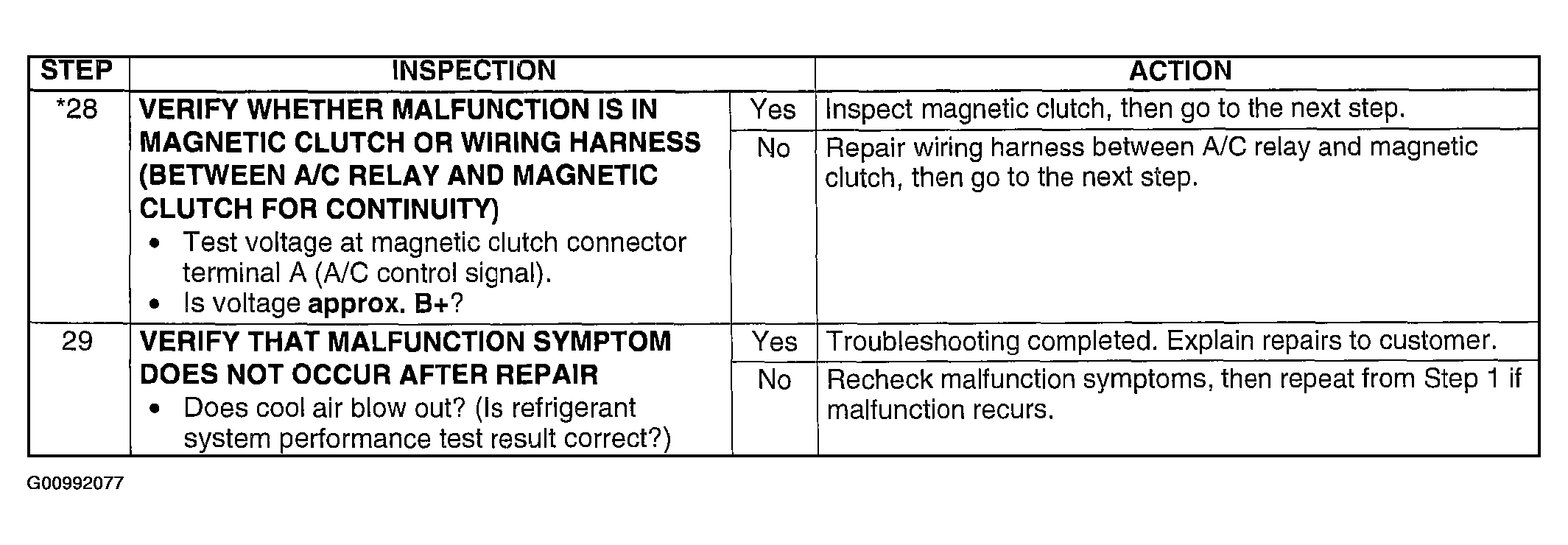

Fig 5: Diagnostic Procedure - No Cool Air (Steps 28-29)

Courtesy of MAZDA MOTORS CORP.
