Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

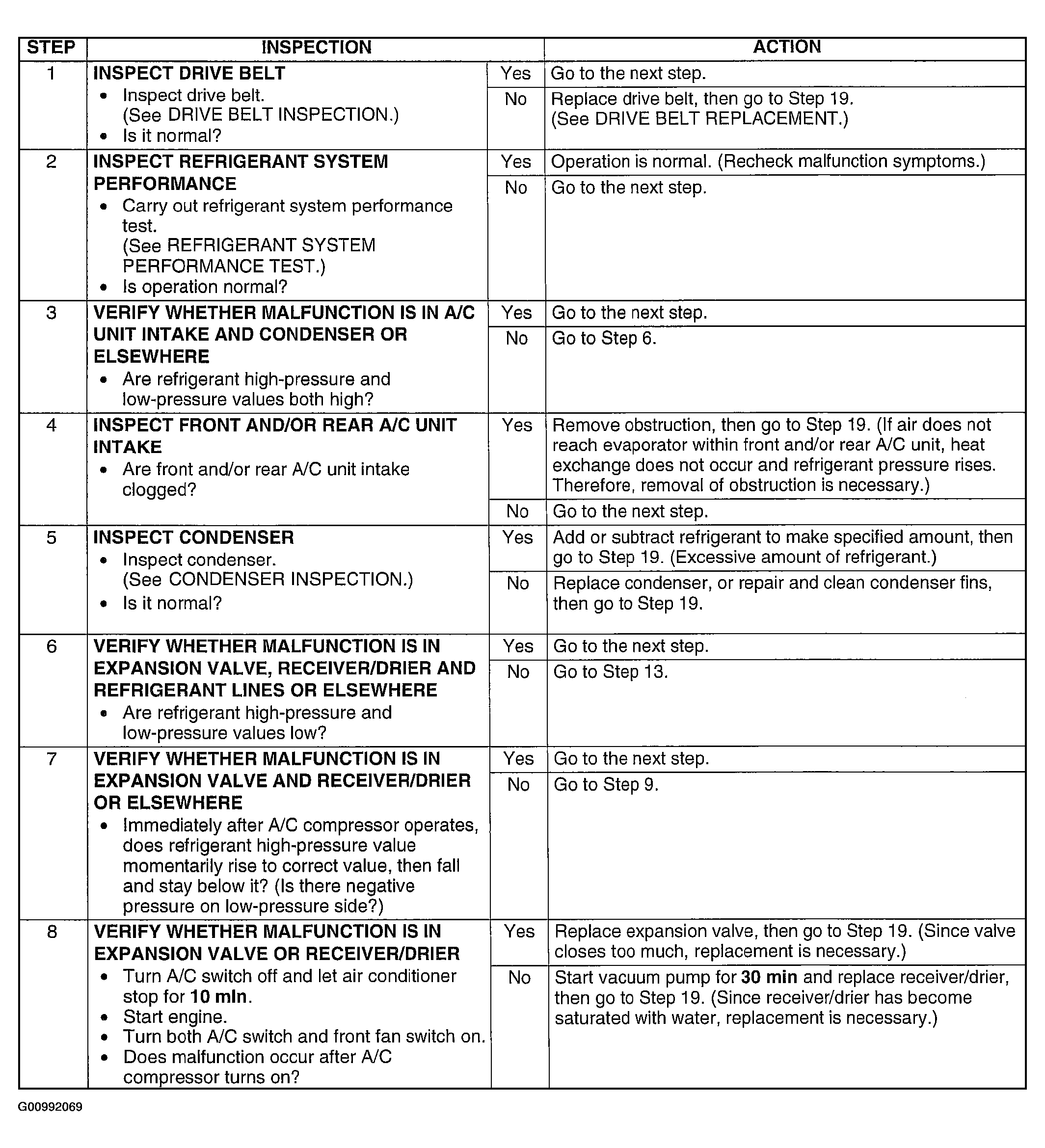

Fig 1: Diagnostic Procedure - Air From Vent Not Cold Enough (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.

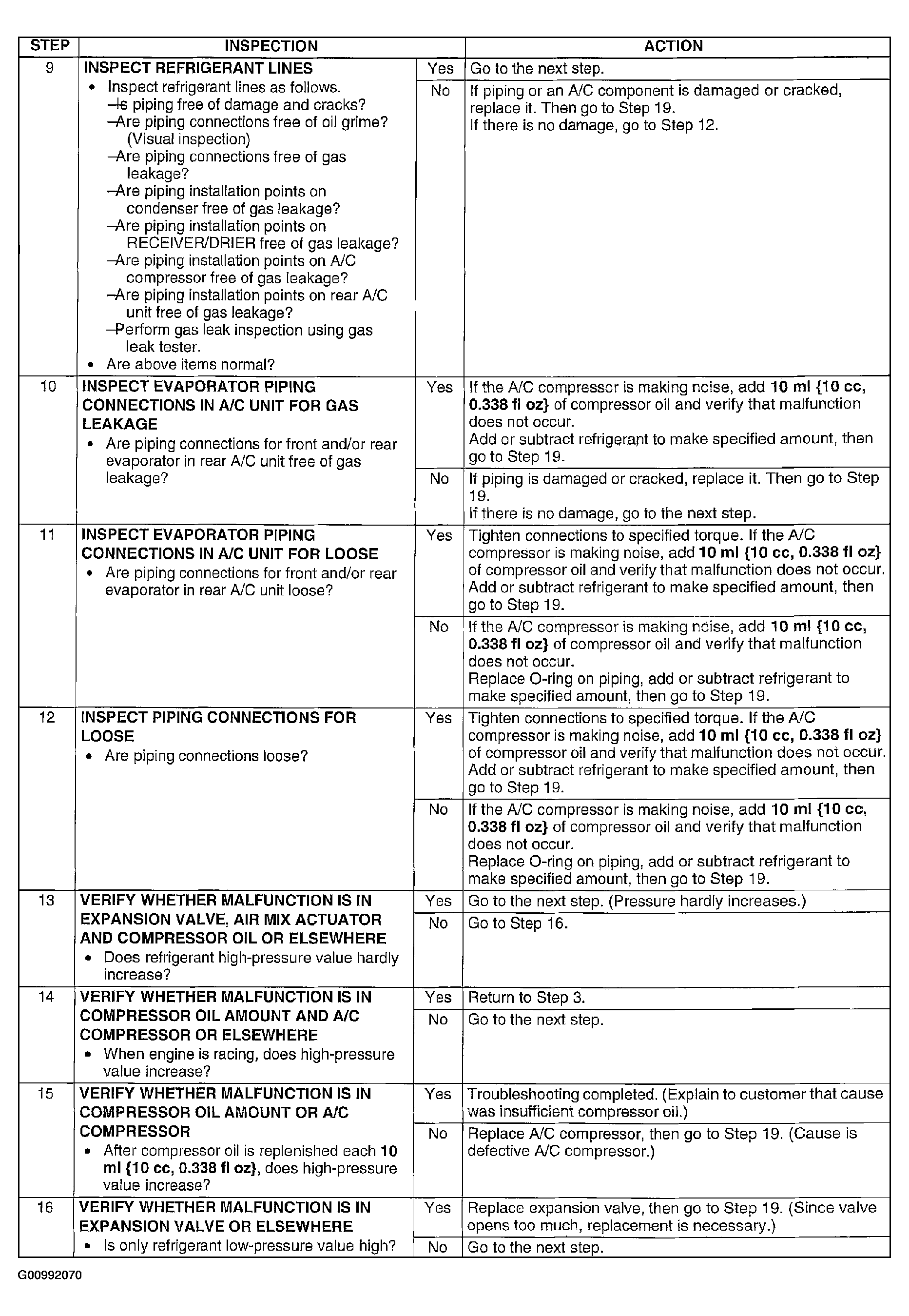

Fig 2: Diagnostic Procedure - Air From Vent Not Cold Enough (Steps 9-16)

Courtesy of MAZDA MOTORS CORP.

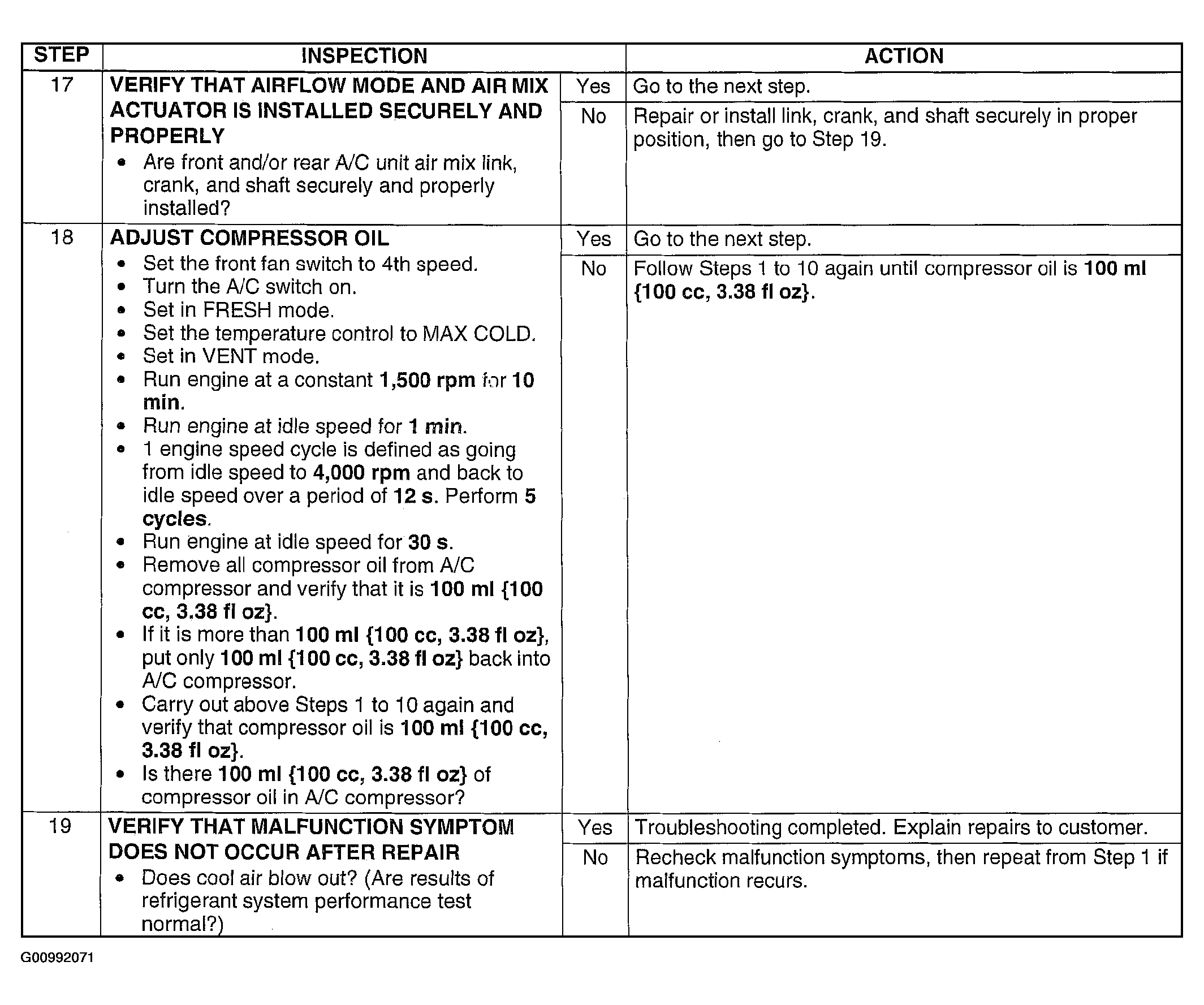

Fig 3: Diagnostic Procedure - Air From Vent Not Cold Enough (Steps 17-19)

Courtesy of MAZDA MOTORS CORP.
