Rear Airflow Mode And Air Mix Actuator Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the rear side trim (RH). See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.

Fig 1: Removal Order Of Rear Airflow Mode And Air Mix Actuator
Courtesy of MAZDA MOTORS CORP.

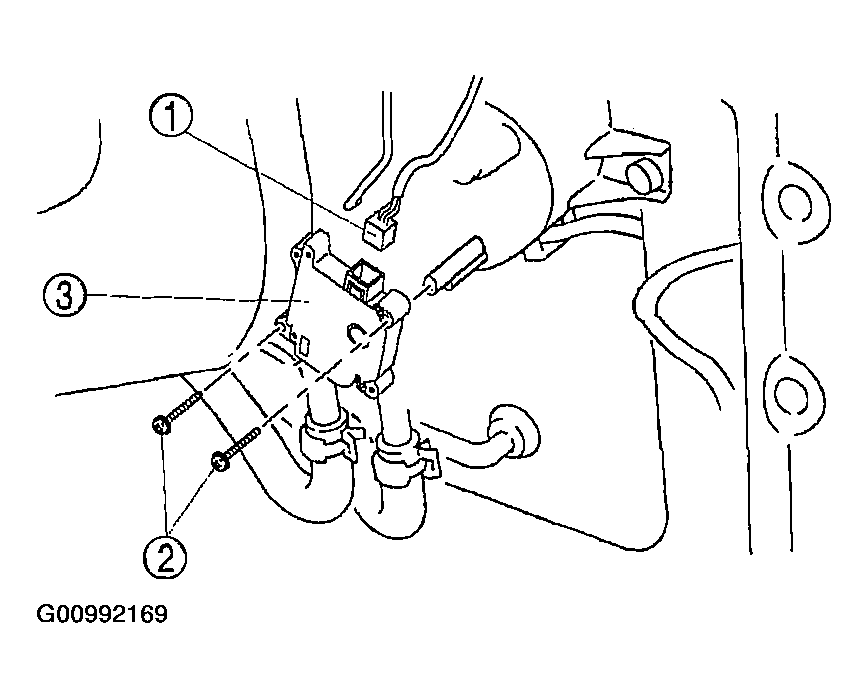

Fig 2: Removing/Installing Rear Airflow Mode And Air Mix Actuator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
