Body Side

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the B-pillar lower trim.
  3. Disconnect the sliding door circuit contact connector.
  4. Remove the bolts.
  5. Remove the sliding door circuit contact.
  6. Install in the reverse order of removal.

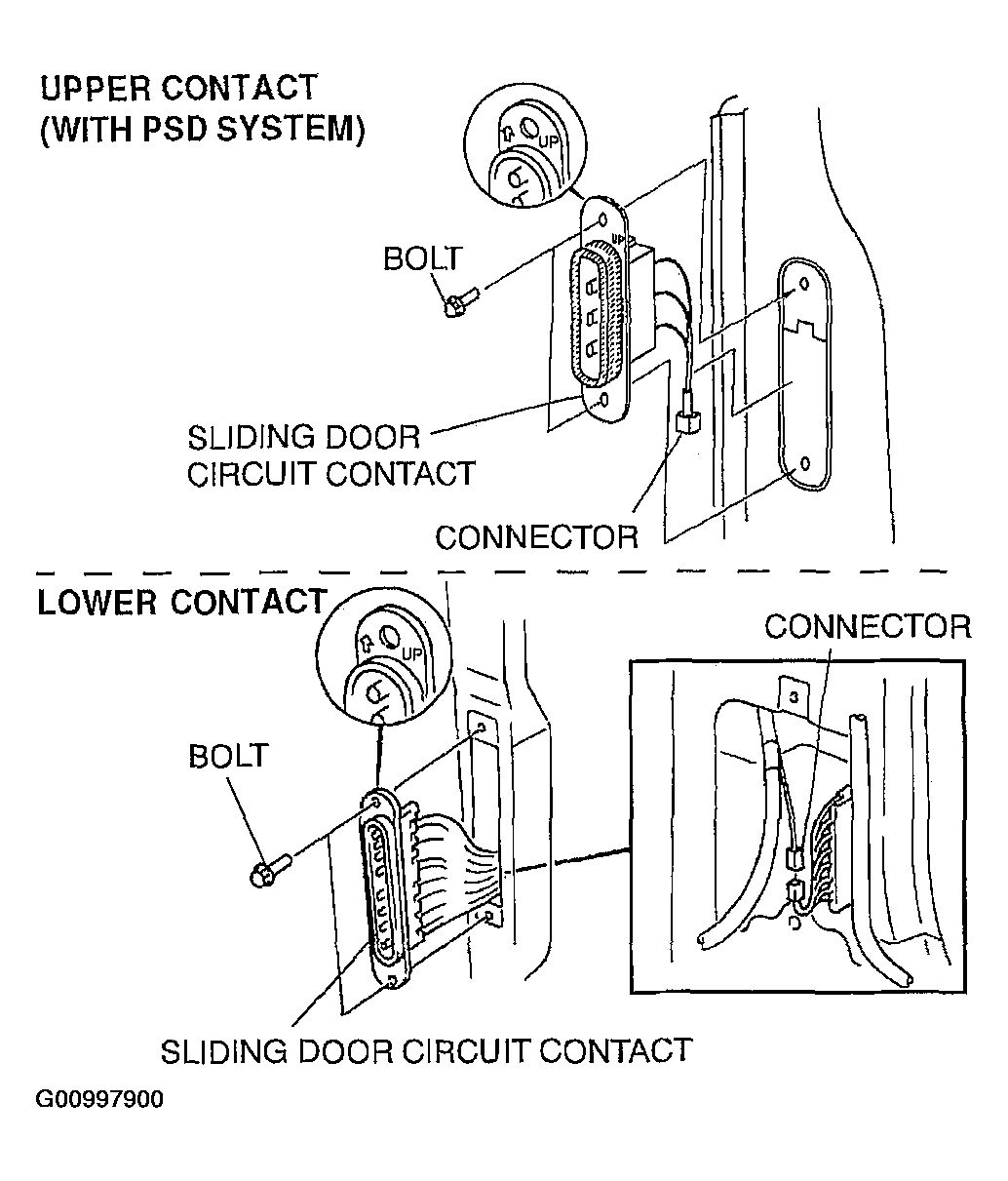

    Fig 1: Removing/Installing Sliding Door Circuit Contact - Body Side
    G00997900Courtesy of MAZDA MOTORS CORP.
