Sliding Door Adjustment

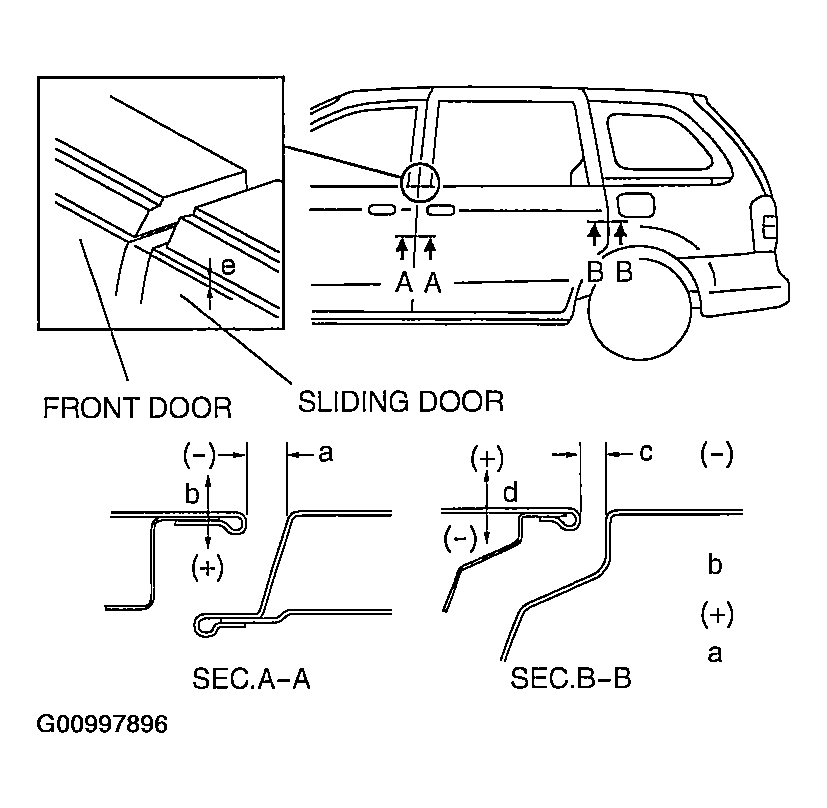

Fig 1: Measuring Gap & Height Between Sliding Door & Body

Courtesy of MAZDA MOTORS CORP.

• If not as specified, loosen the roller installation bolts or the door lock striker installation screws, and reposition the door. (See SLIDING DOOR DISASSEMBLY/ASSEMBLY .) (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)

Clearance

1. a: 3.5-6.5 mm {0.14-0.25 in}
2. b: -1.5-1.5 mm {-0.05-0.05 in}
3. c: 3.5-6.5 mm (0.14-0.25 in}
4. d: -1.5-1.5 mm {-0.05-0.05 in}
5. e: 0-1.0 mm {0-0.03 in}
