Power Sliding Door (PSD) Front Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the PSD front switch.
Inspect for continuity between the PSD front switch terminals using an ohmmeter.
- If not as specified, replace the PSD front switch.

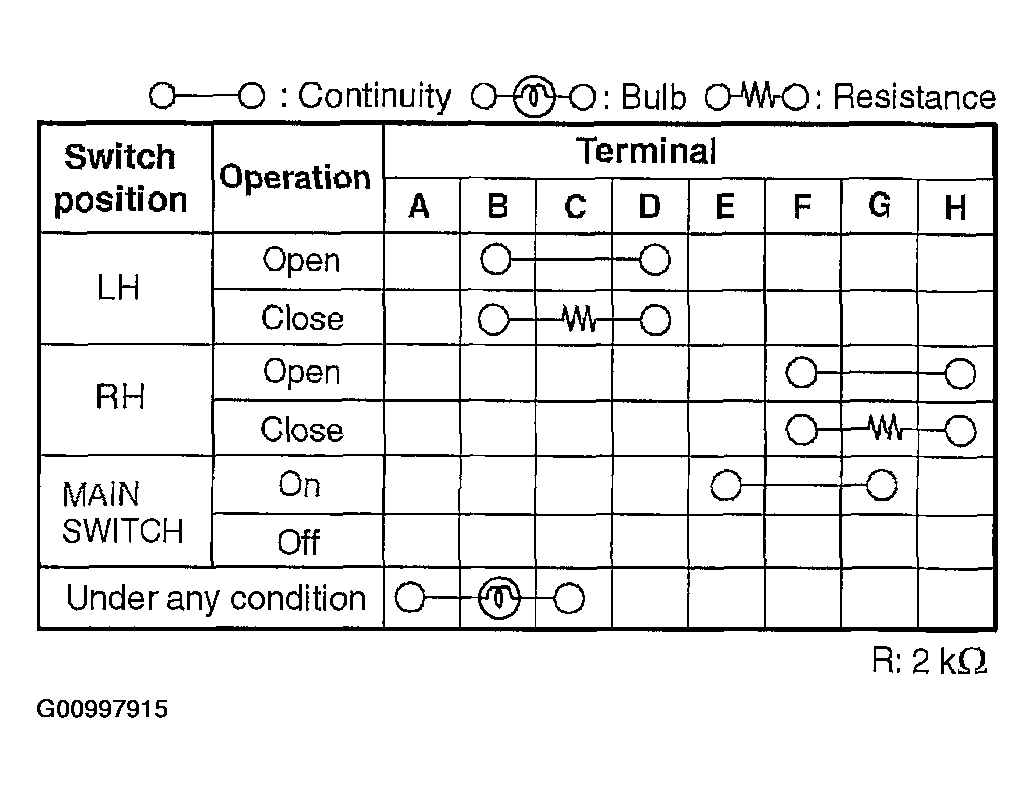

  Fig 1: Power Sliding Door Front Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Power Sliding Door Front Switch Terminals Connection
  Courtesy of MAZDA MOTORS CORP.
