Rear Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

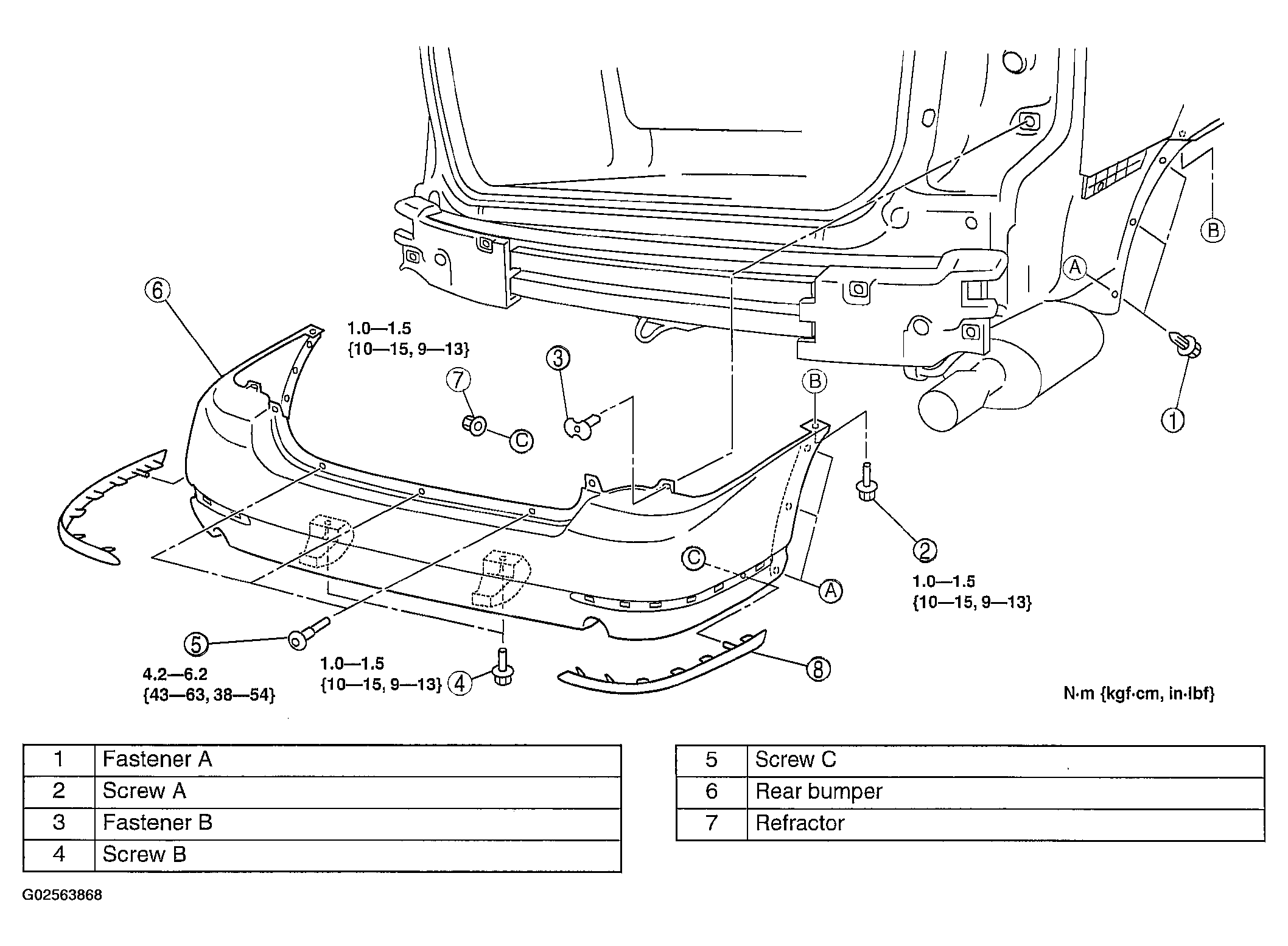

    Fig 1: Removing/Installing Rear Bumper
    G02563868Courtesy of MAZDA MOTORS CORP.
