Without TCS

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

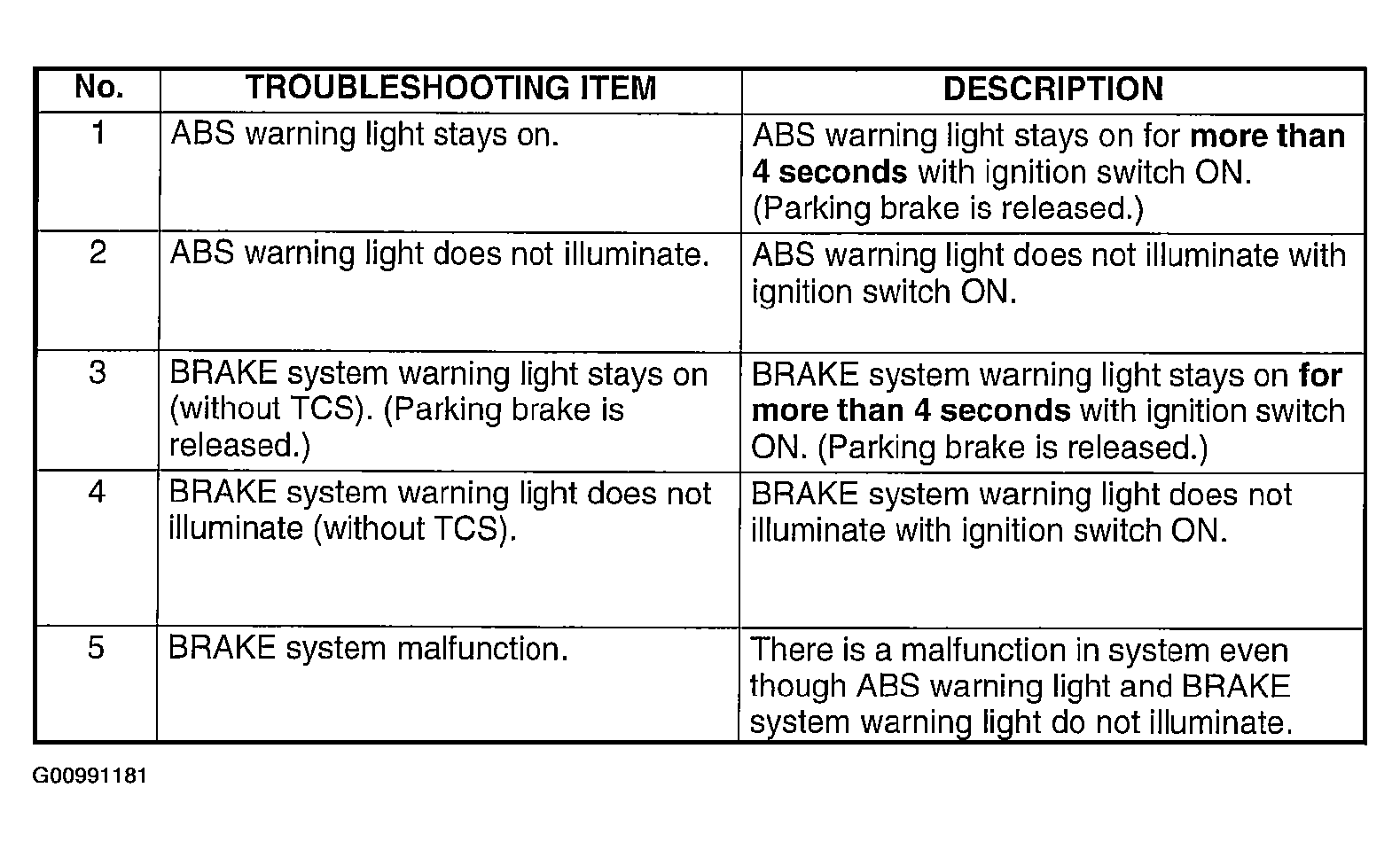

Fig 1: Symptom Troubleshooting - Without TCS
G00991181Courtesy of MAZDA MOTORS CORP.

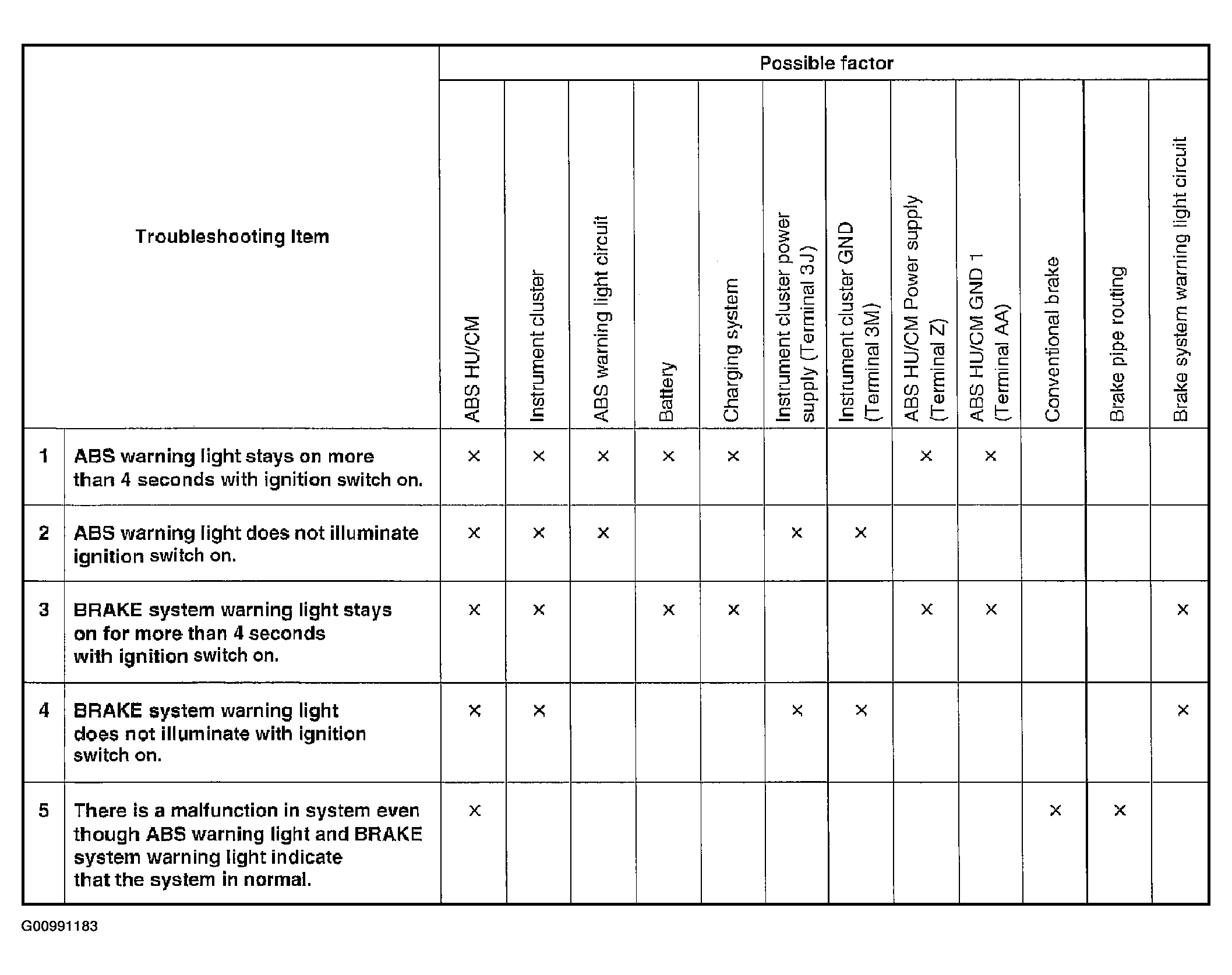

Fig 2: Troubleshooting & Possible Factors - Without TCS
G00991183Courtesy of MAZDA MOTORS CORP.
