Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

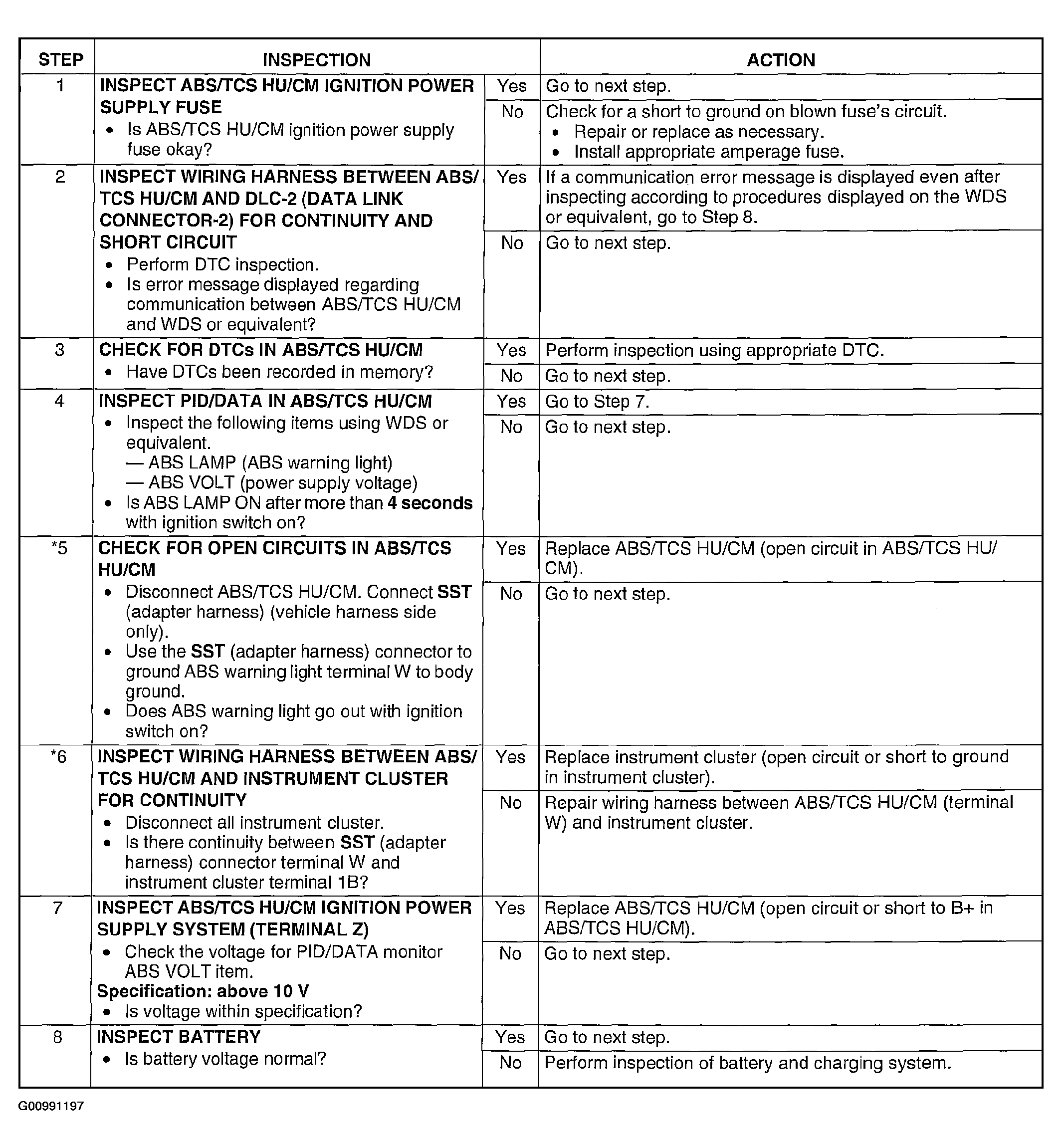

Fig 1: Diagnostic Procedure - NO. 1 Warning Light Stays On (With TCS) [1 Of 2]

Courtesy of MAZDA MOTORS CORP.

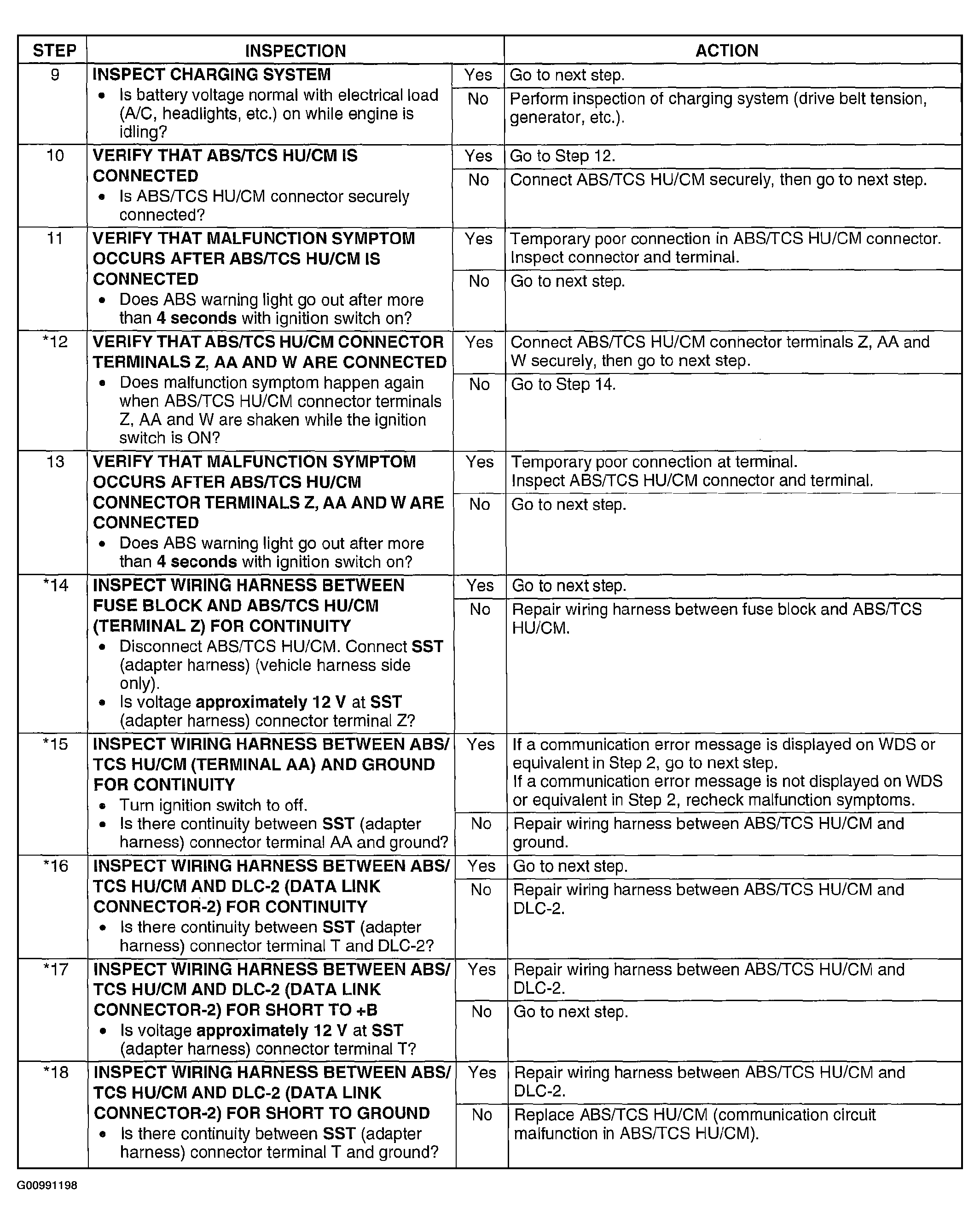

Fig 2: Diagnostic Procedure - NO. 1 Warning Light Stays On (With TCS) [2 Of 2]

Courtesy of MAZDA MOTORS CORP.
