Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

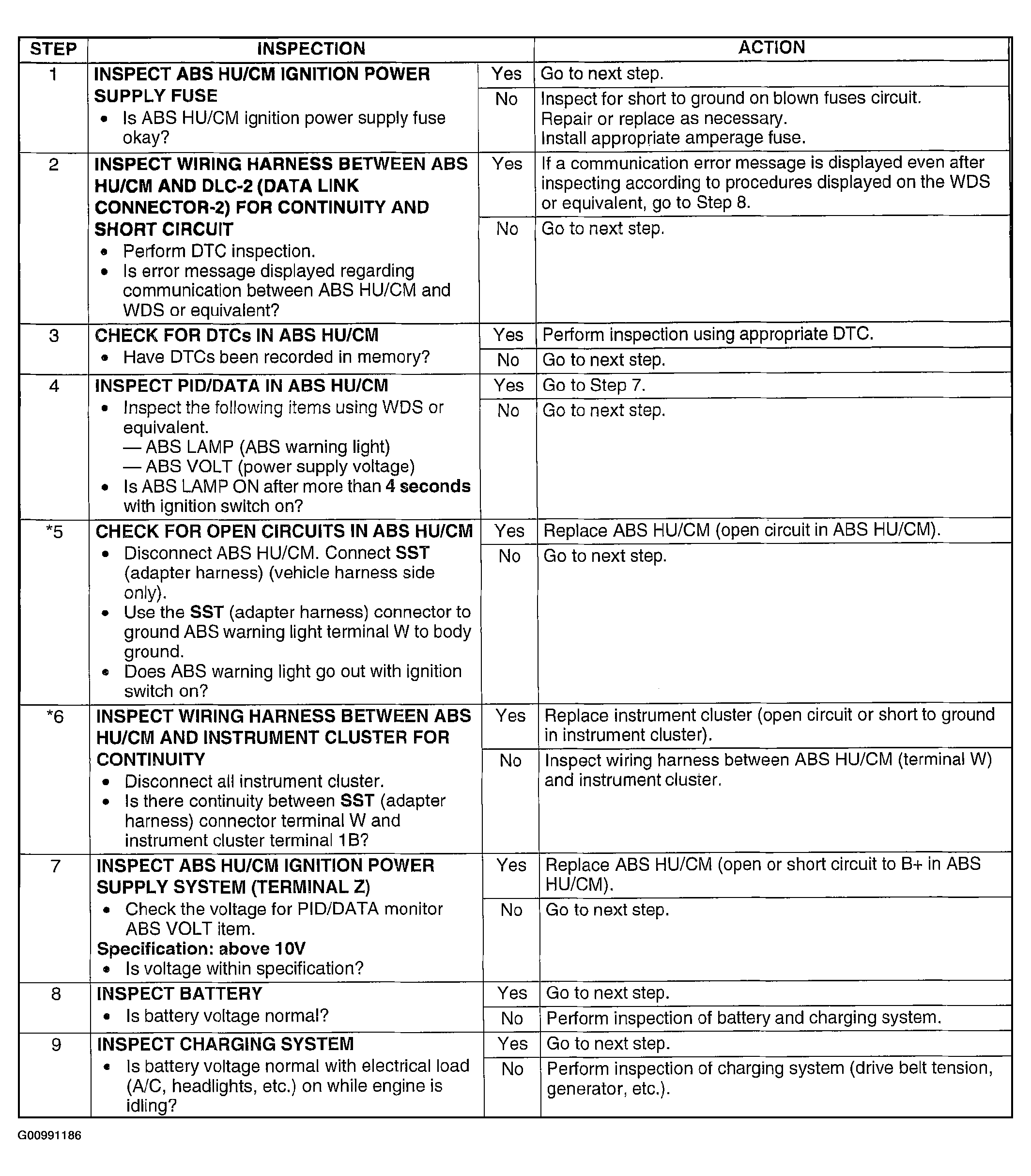

Fig 1: Diagnostic Procedure - NO. 1 ABS Warning Light Stays On (Without TCS) [Steps 1-9]

Courtesy of MAZDA MOTORS CORP.

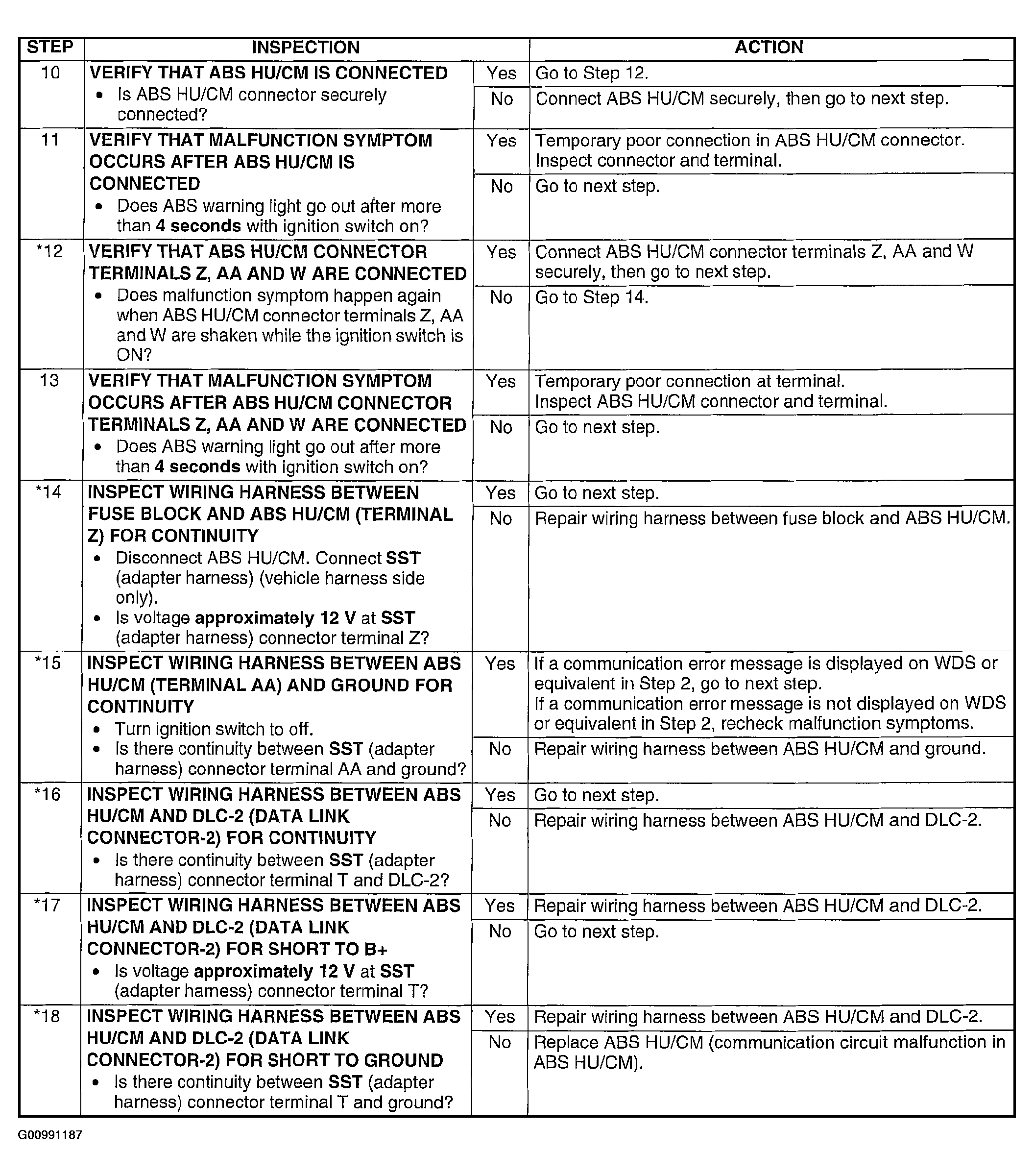

Fig 2: Diagnostic Procedure - NO. 1 ABS Warning Light Stays On (Without TCS) [Steps 10-18]

Courtesy of MAZDA MOTORS CORP.
