PID/DATA Monitor And Record Function Table

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

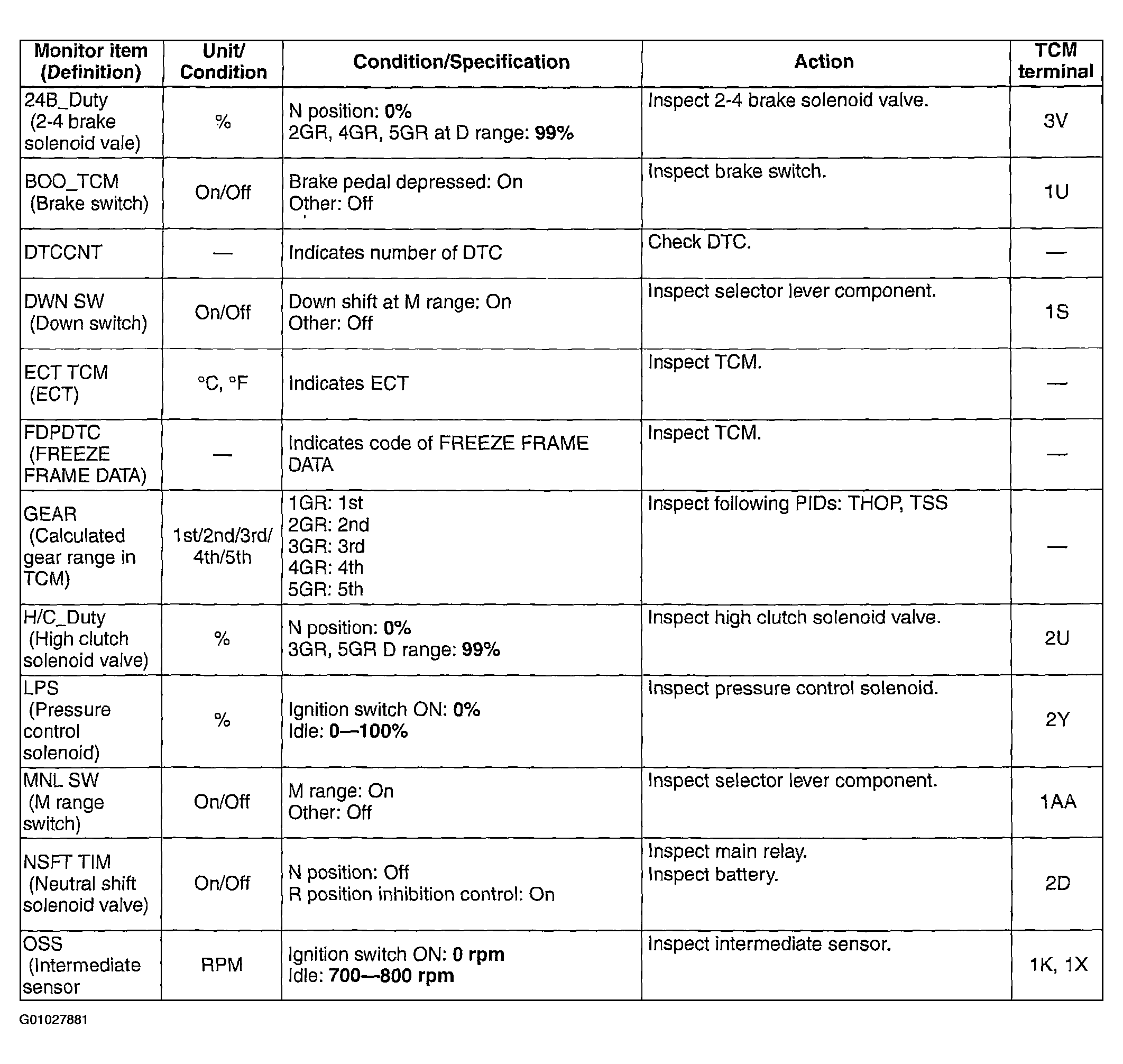

Fig 1: PID/DATA Monitor And Record Function (1 Of 2)
G01027881Courtesy of MAZDA MOTORS CORP.

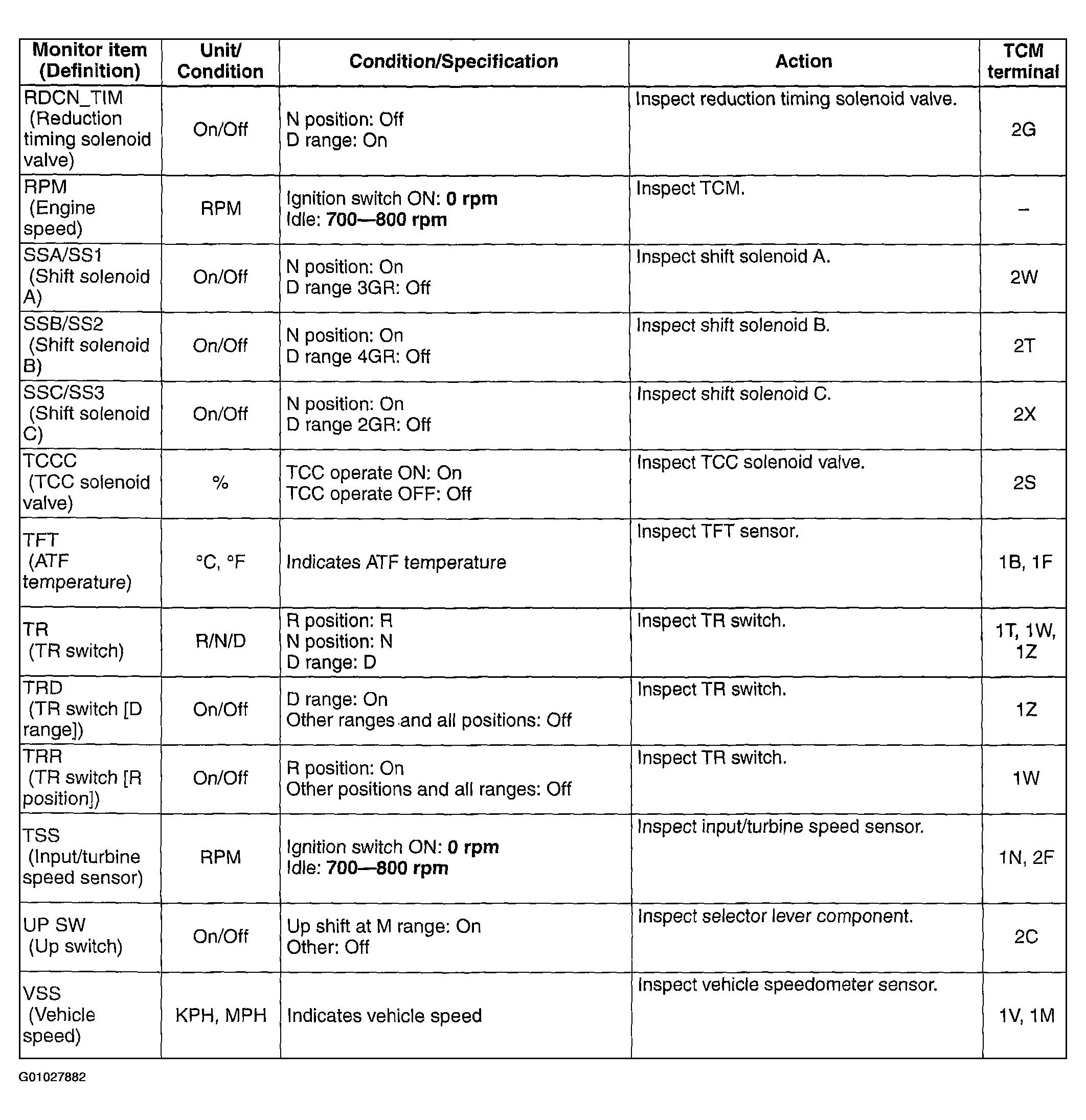

Fig 2: PID/DATA Monitor And Record Function (2 Of 2)
G01027882Courtesy of MAZDA MOTORS CORP.
