Automatic Transaxle Control System Wiring Diagram

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

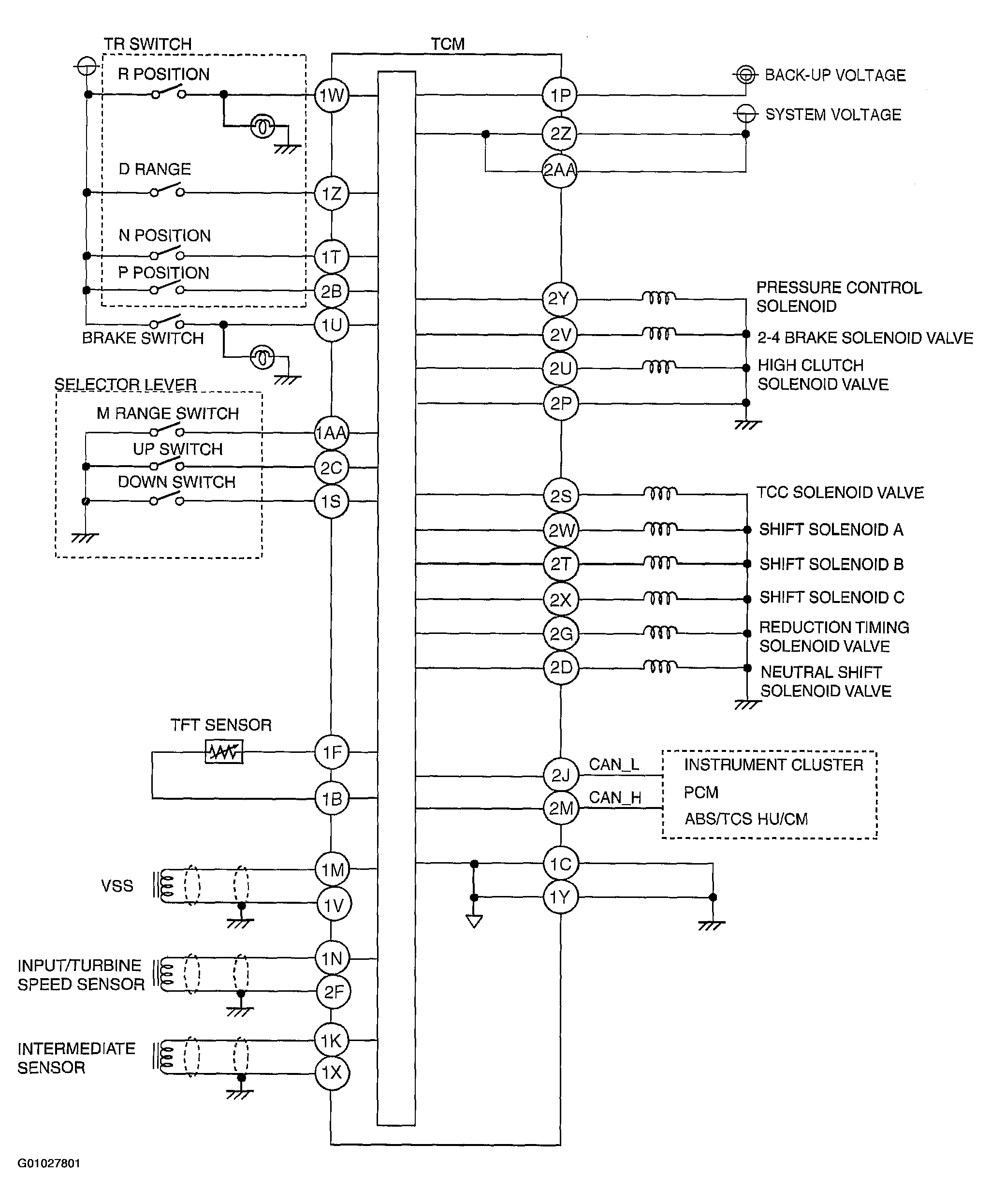

Fig 1: Automatic Transaxle Control System Circuit Diagram
G01027801Courtesy of MAZDA MOTORS CORP.
NOTE: For wiring diagram, see TRANSMISSION .
