Automatic Transaxle Shift Mechanism Location Index

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

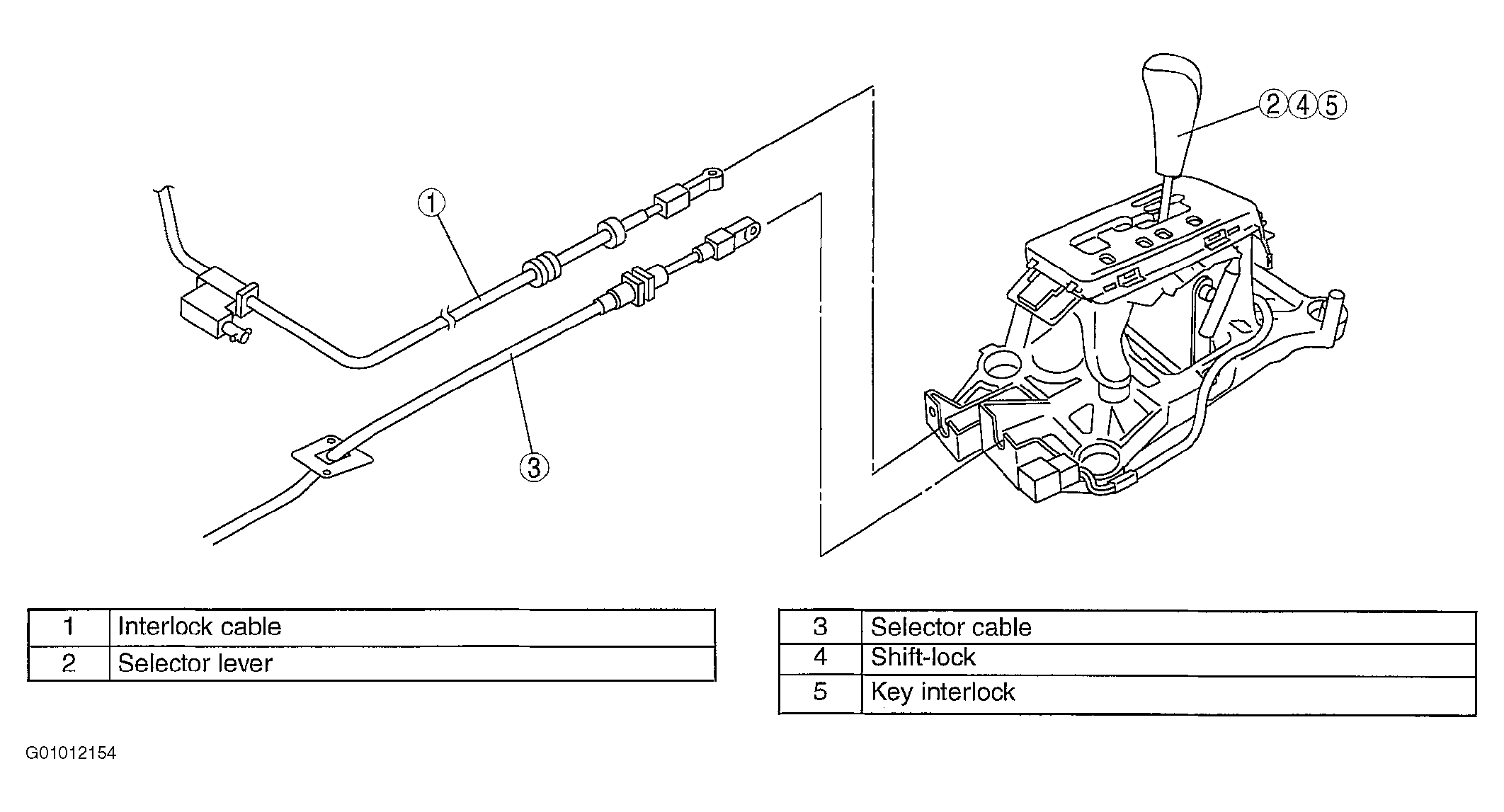

Fig 1: Locating Automatic Transaxle Shift Mechanism Components
G01012154Courtesy of MAZDA MOTORS CORP.
