TCM Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated. See Fig 1.
  3. Install in the reverse order of removal.
  4. Connect the negative battery cable.

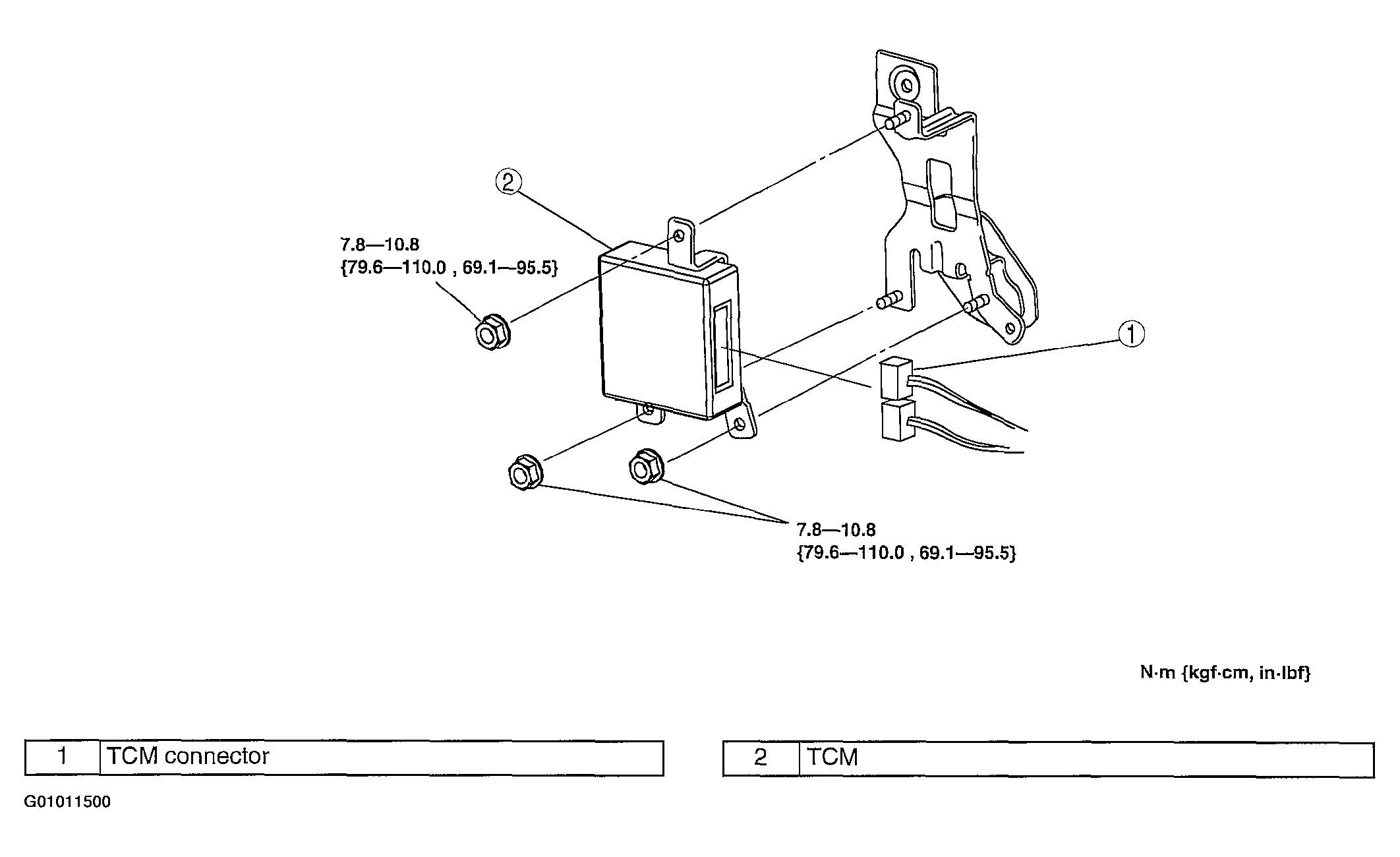

Fig 1: Removing/Installing TCM
G01011500Courtesy of MAZDA MOTORS CORP.
