Resistance Inspection (On-Vehicle)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the terminal component No. 1 connector.

Fig 1: Disconnecting Terminal Component No. 1 Connector
Courtesy of MAZDA MOTORS CORP.
Measure the resistance between the following terminals.
- If not as specified, inspect each solenoid valve. (See RESISTANCE INSPECTION (OFF-VEHICLE) .)
ATF temperature: 20°C (68°F)

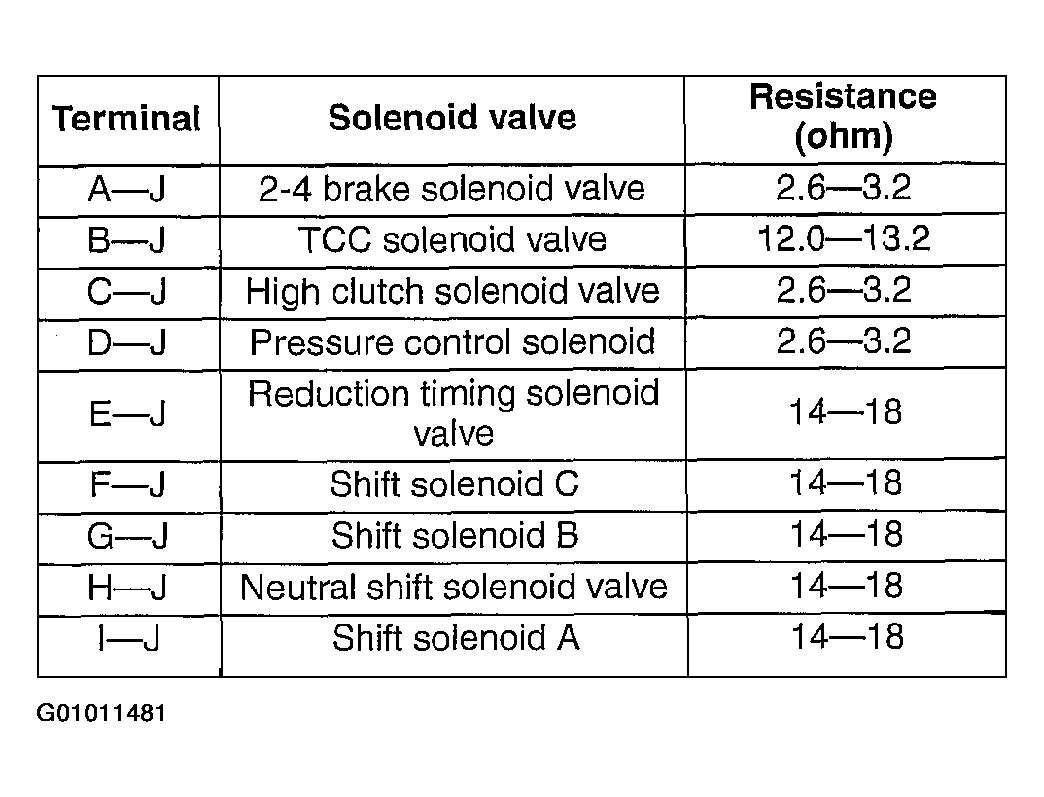

Fig 2: Terminal Component No. 1 Connector Resistance Specification
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Terminals Of Component No. 1 Connector
Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No. 1 connector.
Connect the negative battery cable.
