Oil Cooler Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

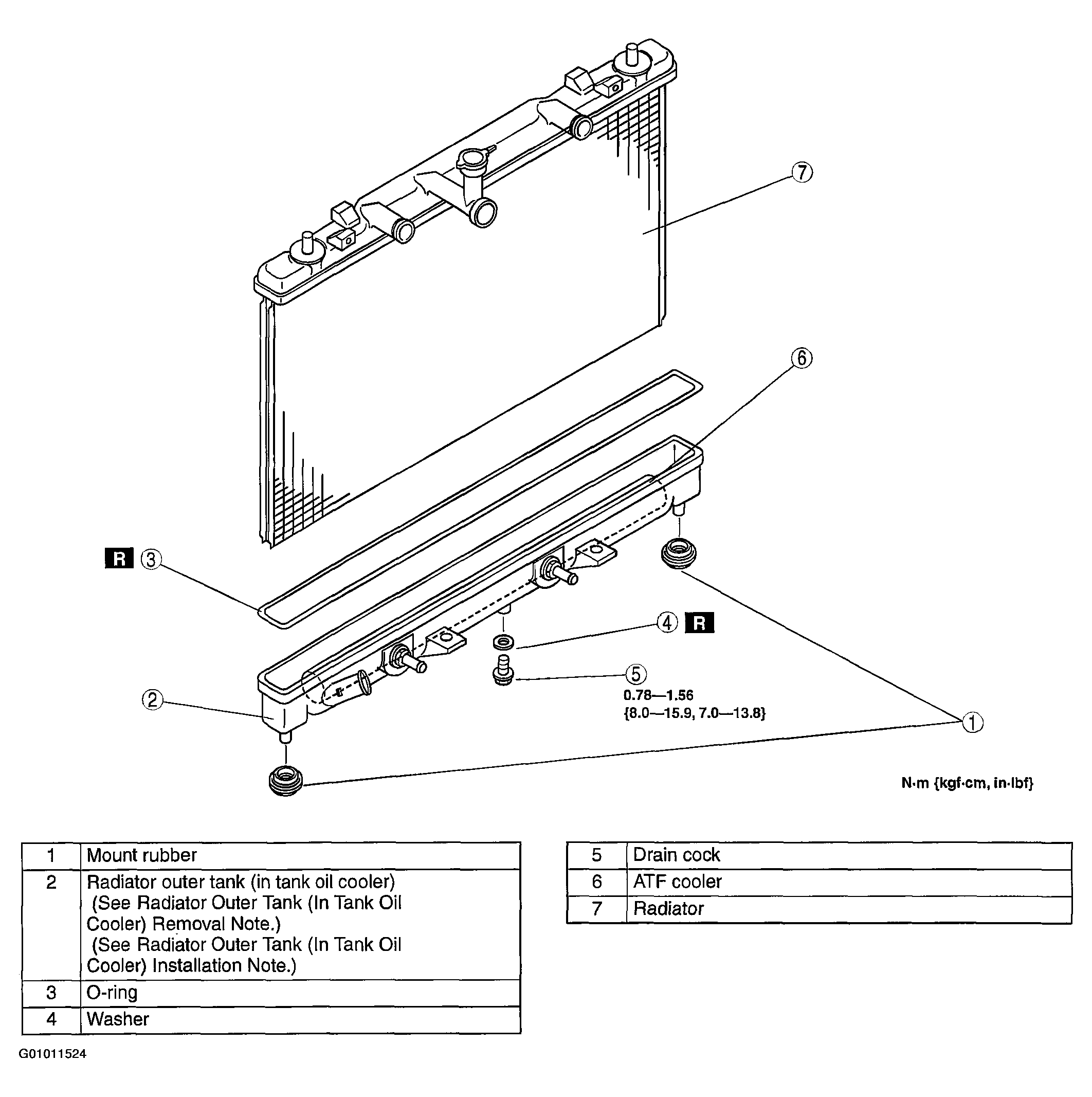

- Disassemble in the order indicated. See Fig 1.
- Assemble in the reverse order of disassembly.
