Evaluation of time lag test

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

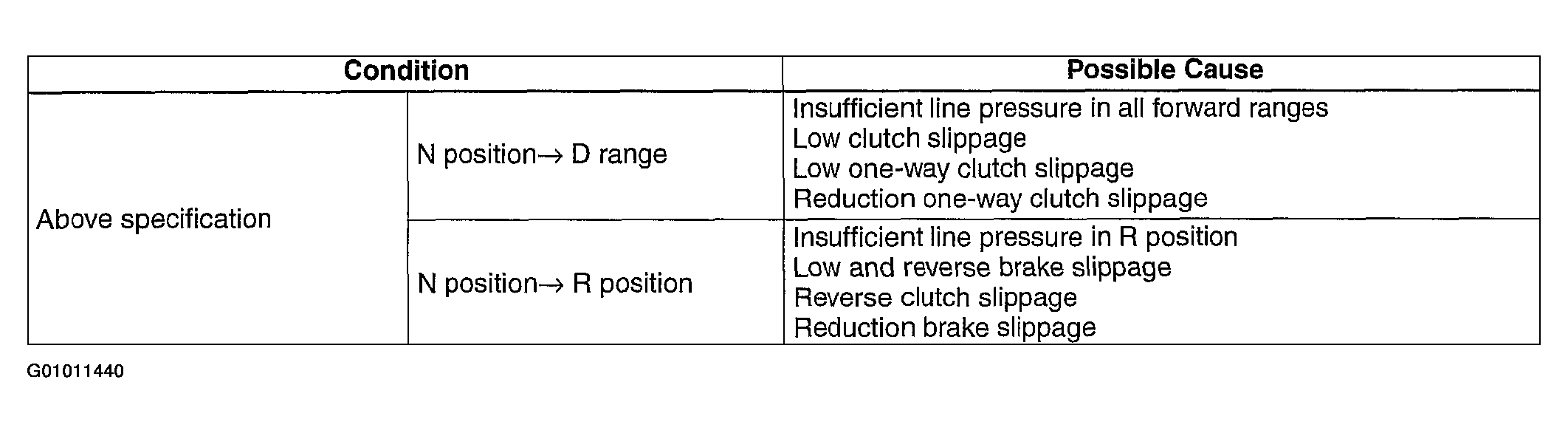

Fig 1: Evaluating Time Lag Test
G01011440Courtesy of MAZDA MOTORS CORP.
