No. 1 Engine Mount Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dynamic chamber. (See INTAKE-AIR SYSTEM [AJ] .)
  2. Install the SST  to the cylinder head.

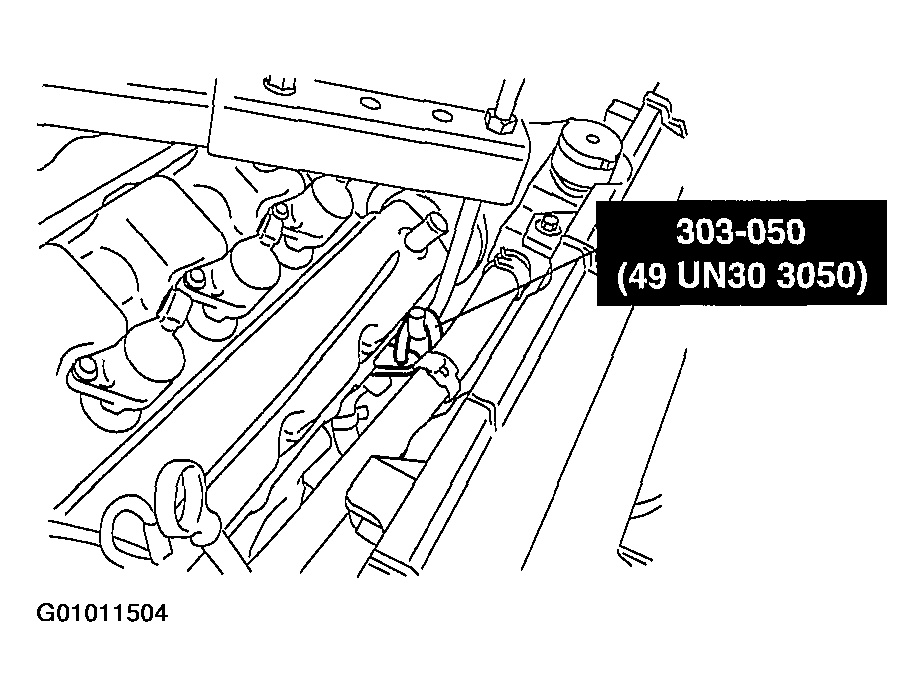

    Fig 1: Installing SSTs To Cylinder Head
    G01011504Courtesy of MAZDA MOTORS CORP.
  3. Support the engine using the SSTs  before removing the No. 1 engine mount.
  4. Remove the No. 1 engine mount.
Fig 2: Supporting Engine Using SSTs
G01011505Courtesy of MAZDA MOTORS CORP.
