TCM Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Connect the negative battery cable.

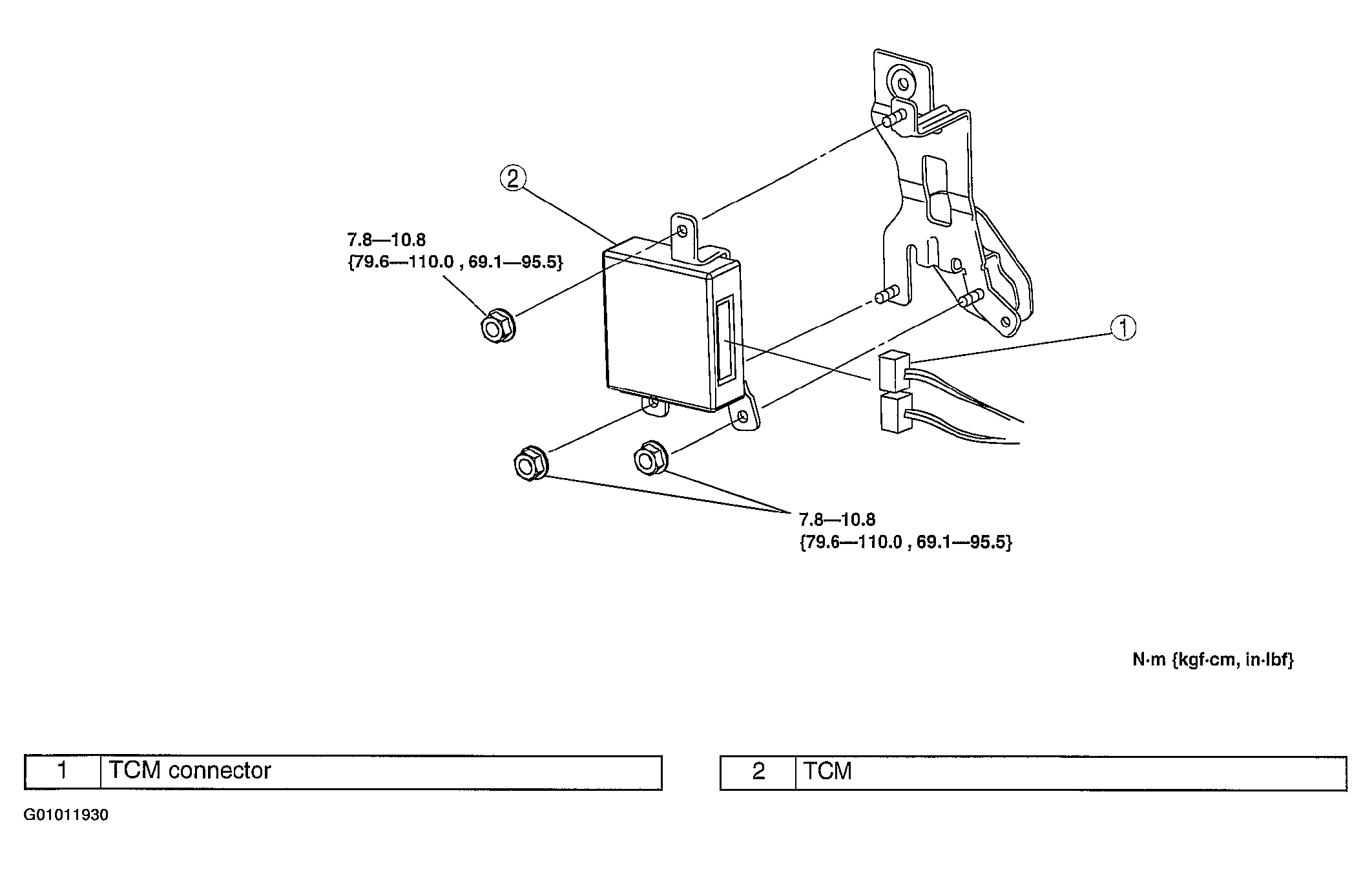

Fig 1: Removing TCM
G01011930Courtesy of MAZDA MOTORS CORP.
