Solenoid Valve Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL .)
  4. Remove the solenoid valve(s).
  5. Apply ATF to a new O-ring and install it on the solenoid valve.
    Fig 1: Identifying Solenoid Valves
    G01011916Courtesy of MAZDA MOTORS CORP.
  6. Install the solenoid valve in the control valve body.

    Tightening Torque

    7.8-10.8 N.m

    (80-110 kgf.cm, 69.5-95.4 in.lb)

  7. Install the control valve body. (See CONTROL VALVE BODY REMOVAL .)
  8. Install the under cover.
  9. Connect the negative battery cable.

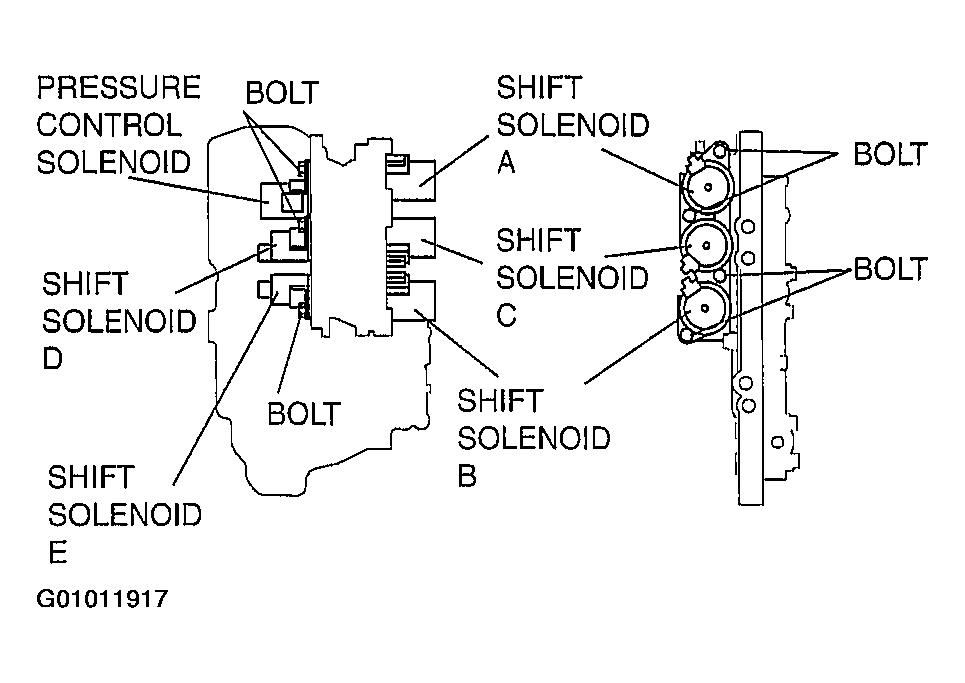

    Fig 2: Locating Shift Solenoid
    G01011917Courtesy of MAZDA MOTORS CORP.
  10. Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL INSPECTION .)
  11. Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
  12. Carry out the road test. (See ROAD TEST .)
