Shift Diagram

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

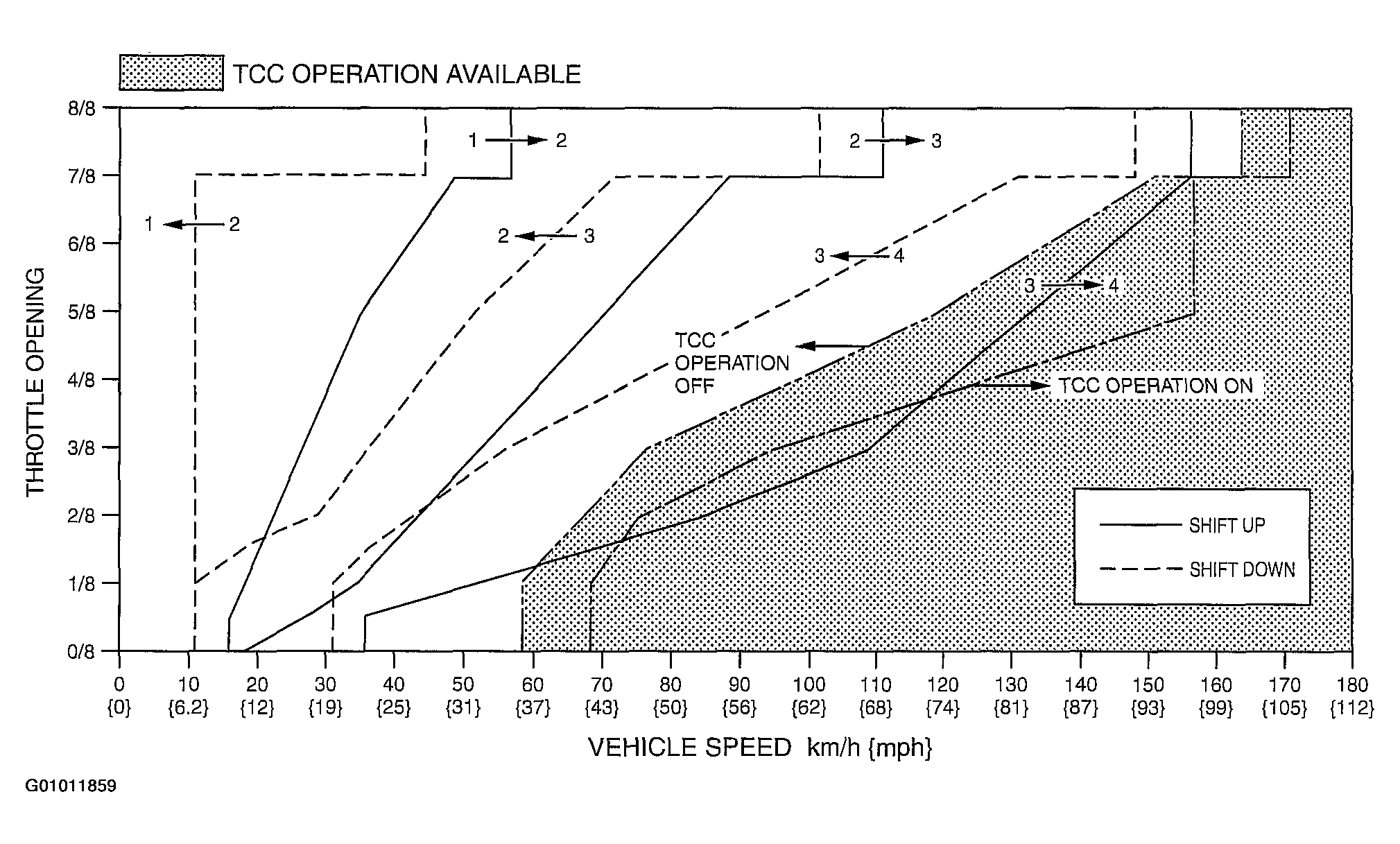

Fig 1: TCC Operation Shift Diagram - D Range (Normal Mode)
G01011859Courtesy of MAZDA MOTORS CORP.
