D Range Test

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform road test preparation. (See ROAD TEST PREPARATION .)
  2. Shift the selector lever to D range.
  3. Accelerate the vehicle at half and WOT.
  4. Verify that 1-->2, 2-->3, and 3-->4 upshifts and downshifts are obtained. The shift points must be as shown in the table below.
    • If not as specified, inspect the TCM and ATX. (See TCM INSPECTION .)
  5. Drive the vehicle in 4GR, 3GR, and 2GR and verify that kickdown occurs for 4-->3, 3-->2, 2-->1 downshifts, and that the shift points are as shown in the table below.
    • If not as specified, inspect the TCM and ATX. (See TCM INSPECTION .)
  6. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR and 4GR.
    • If not as specified, inspect the TCM and ATX. (See TCM INSPECTION .)
  7. Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.
    • If not as specified, inspect the TCM and ATX. (See TCM INSPECTION .)

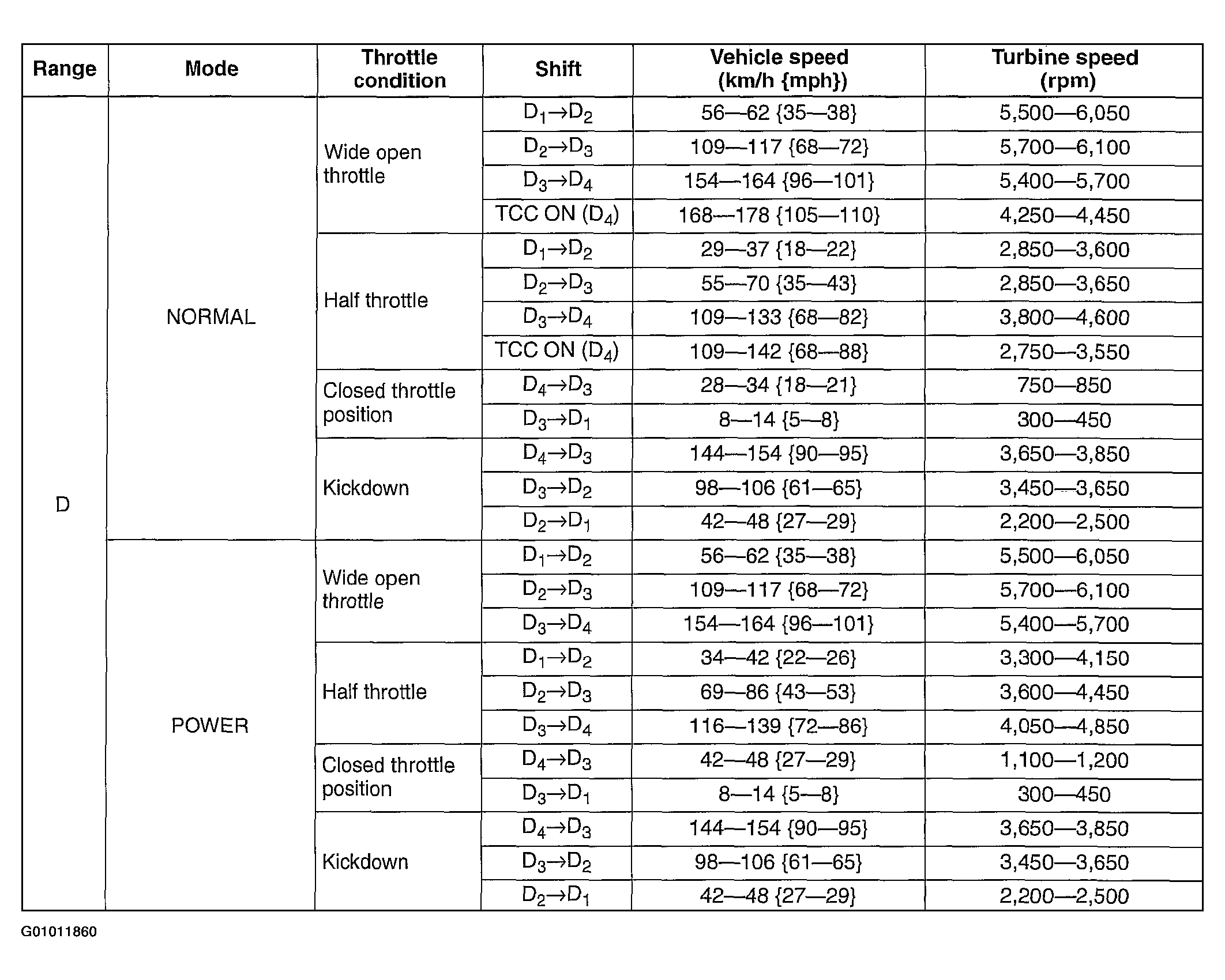

Fig 1: Vehicle Speed At Shift Point Table - D Range
G01011860Courtesy of MAZDA MOTORS CORP.
