Time Lag Test

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Perform mechanical system test preparation. (See MECHANICAL SYSTEM TEST PREPARATION .)
Start the engine and warm up the engine until the ATF temperature reaches 60-70 °C (141-158 °F).
Shift the selector lever from N position to D range.
Use a stopwatch to measure the time it takes from shifting until engagement is felt. Take 3 measurements for each test and average the results using the following formula.

Fig 1: Average Time Lag Formula
Courtesy of MAZDA MOTORS CORP.
Perform the test for the following shifts in the same manner.
- N position-->R position
Average time lag

N position-->D range: 0.4-0.7 sec.

N position-->R position: 0.4-0.7 sec.

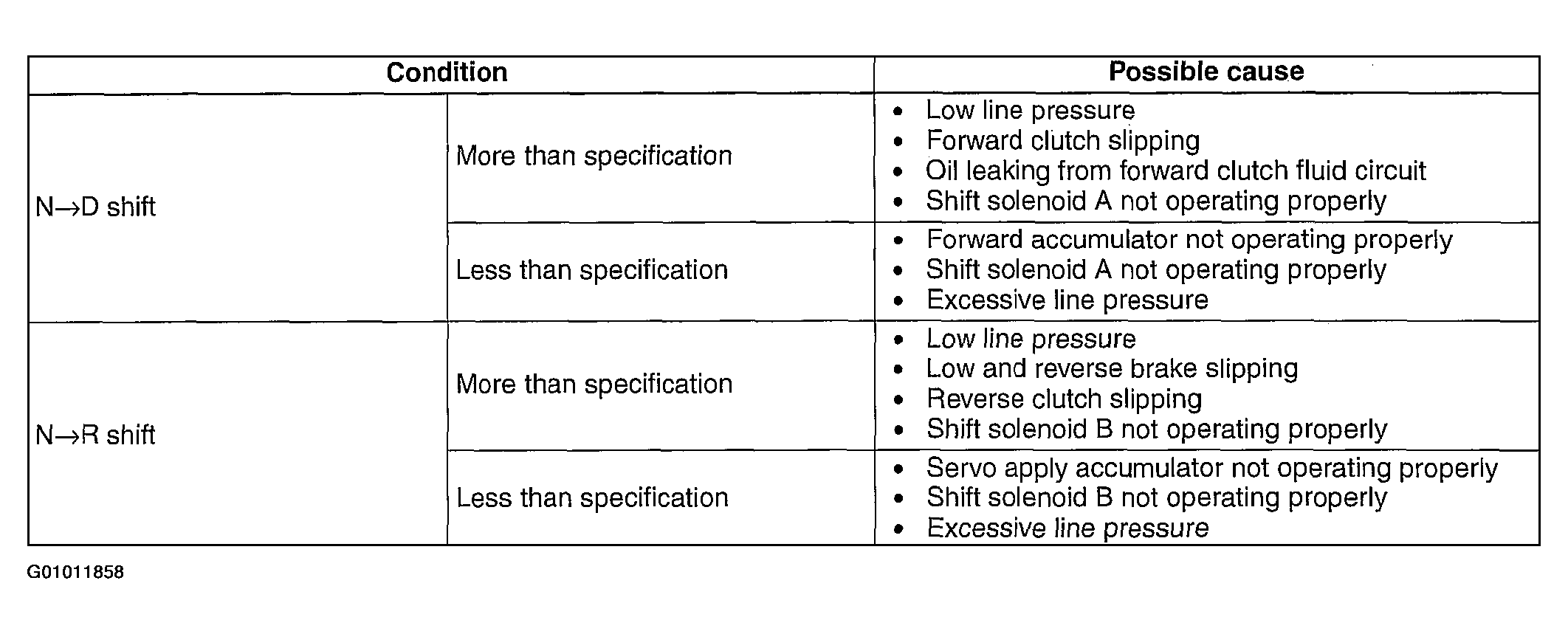

Fig 2: Evaluating Time Lag Test

Courtesy of MAZDA MOTORS CORP.
