Input/Turbine Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the input/turbine speed sensor connector.
  5. Remove the input/turbine speed sensor.
  6. Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.
  7. Install the input/turbine speed sensor.

    Tightening Torque

    8-11 N.m (82-112 kgf.cm, 71-97 in.lb)

  8. Connect the input/turbine speed sensor connector.

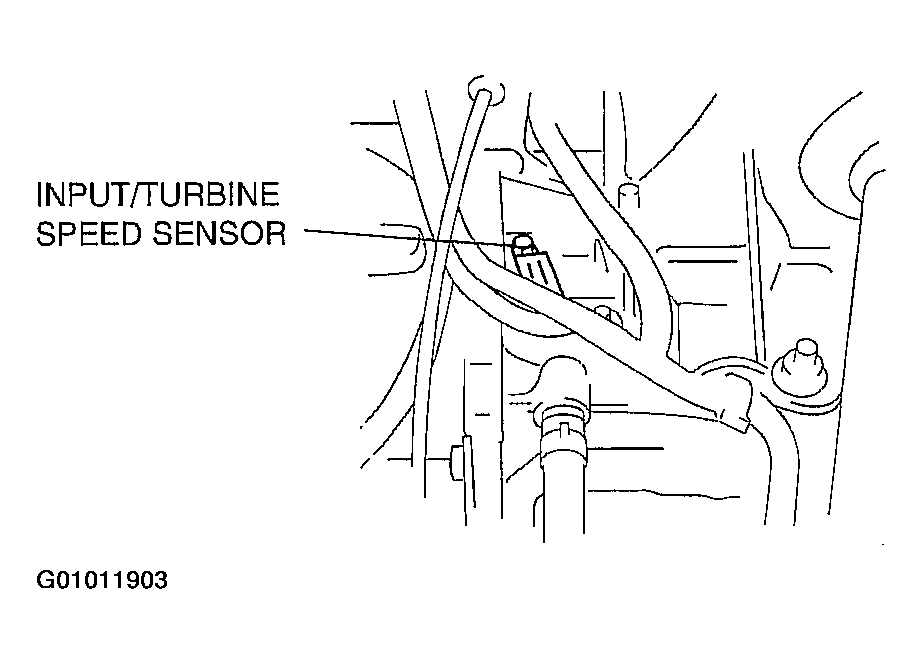

    Fig 1: Removing Input/Turbine Speed Sensor
    G01011903Courtesy of MAZDA MOTORS CORP.
  9. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  10. Install the battery and battery tray.
  11. Connect the negative battery cable.
