Automatic Transaxle Location Index

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

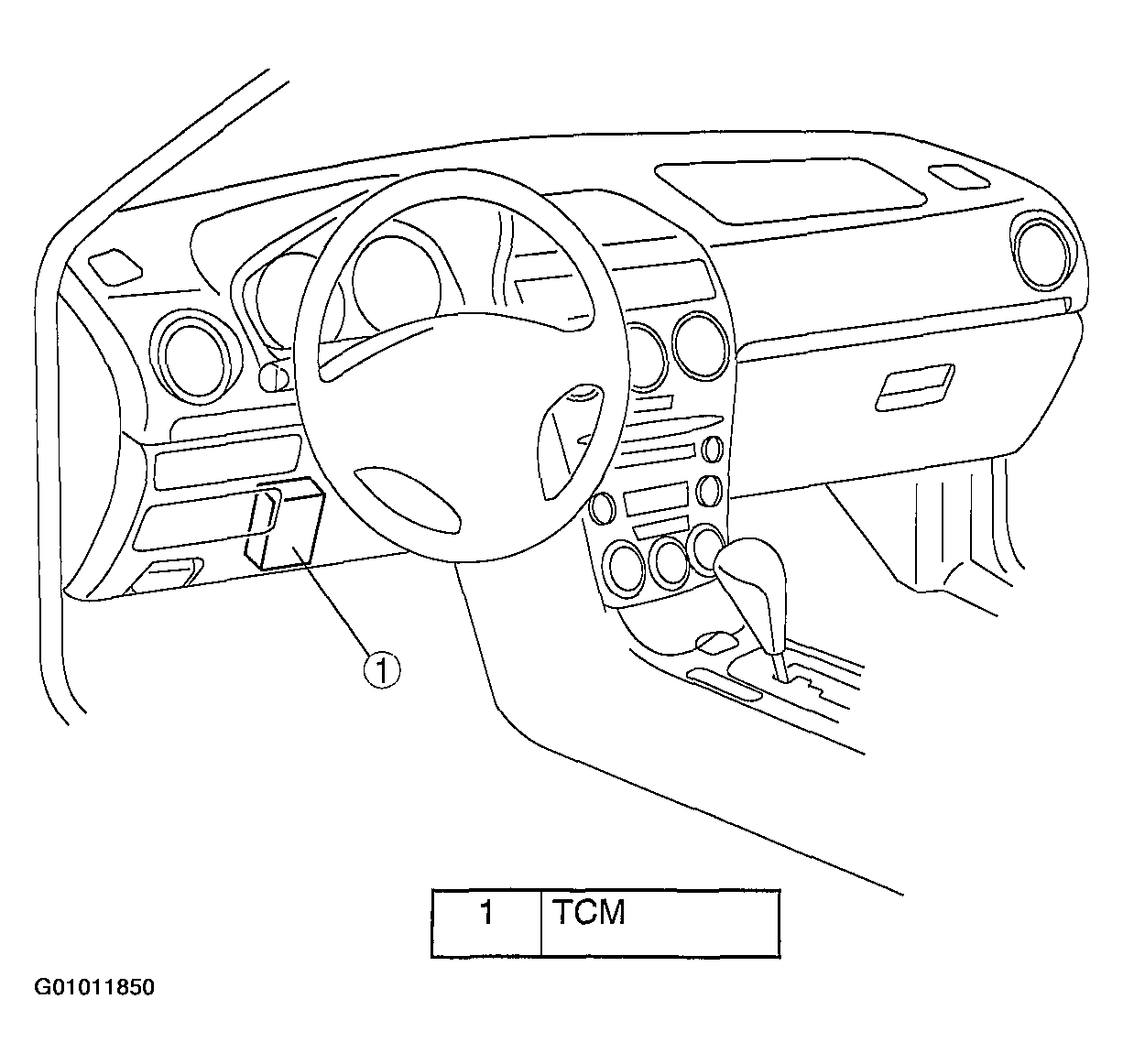

Fig 1: Locating TCM

Courtesy of MAZDA MOTORS CORP.

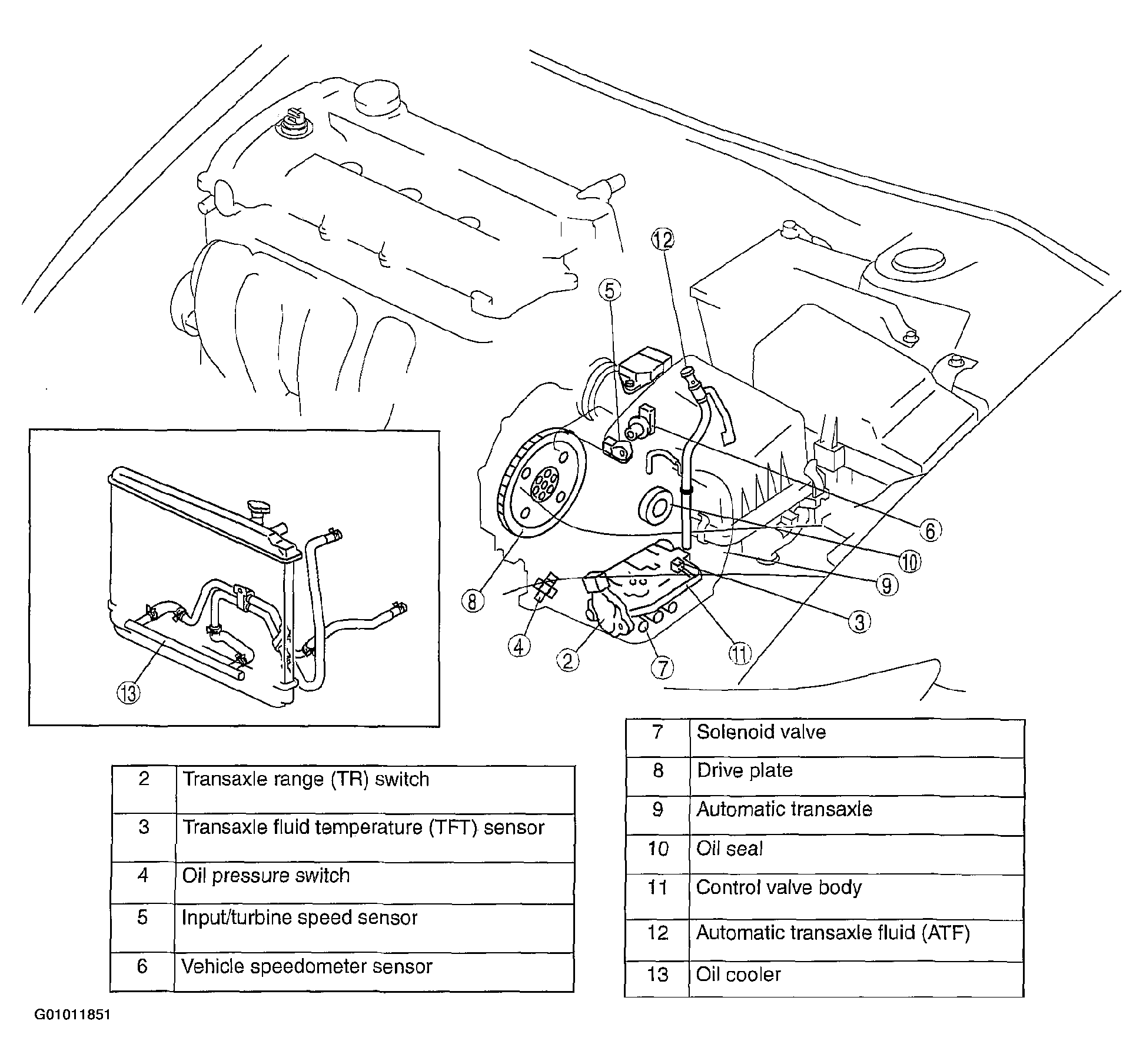

Fig 2: Automatic Transaxle Location Index

Courtesy of MAZDA MOTORS CORP.
