Reverse Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the reverse switch connector.

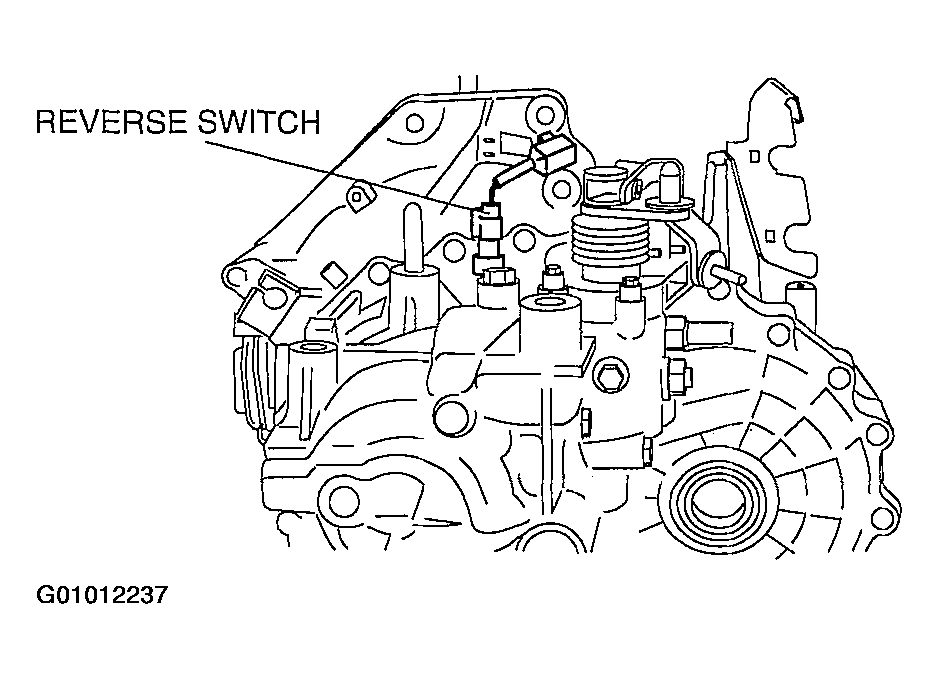

Fig 1: Disconnecting Reverse Switch Connector
Courtesy of MAZDA MOTORS CORP.
Shift the shift lever to each position, and inspect for continuity between terminals A and B.
- If not as specified, replace the reverse switch. (See REVERSE SWITCH REMOVAL/INSTALLATION .)
Fig 2: Checking Reverse Switch Continuity
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Reverse Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Connect the reverse switch connector.
