A65M-R Manual Transaxle Models

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

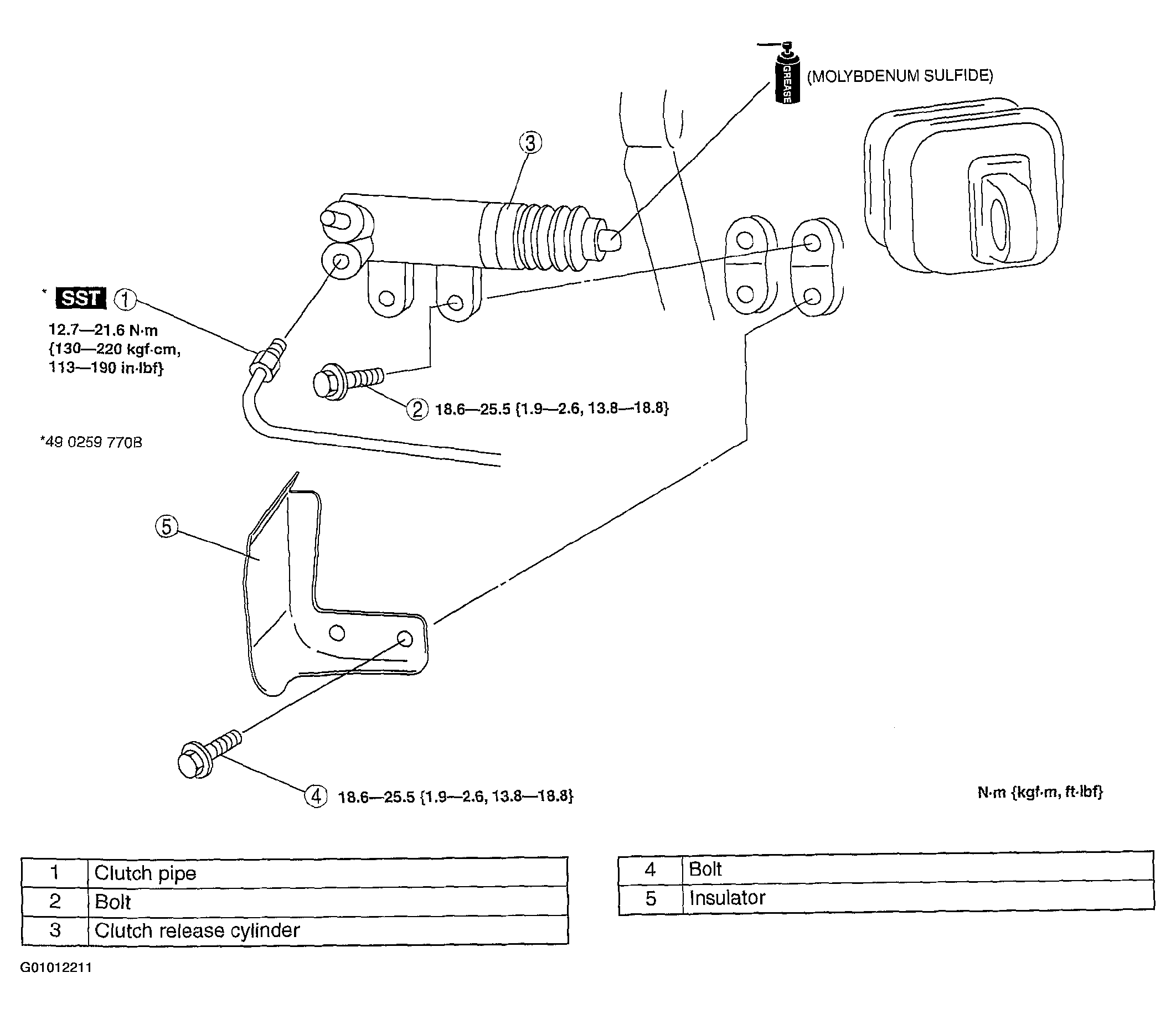

Fig 1: Removing/Installing Clutch Release Cylinder (A65M-R)

Courtesy of MAZDA MOTORS CORP.
