Clutch Release Cylinder Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

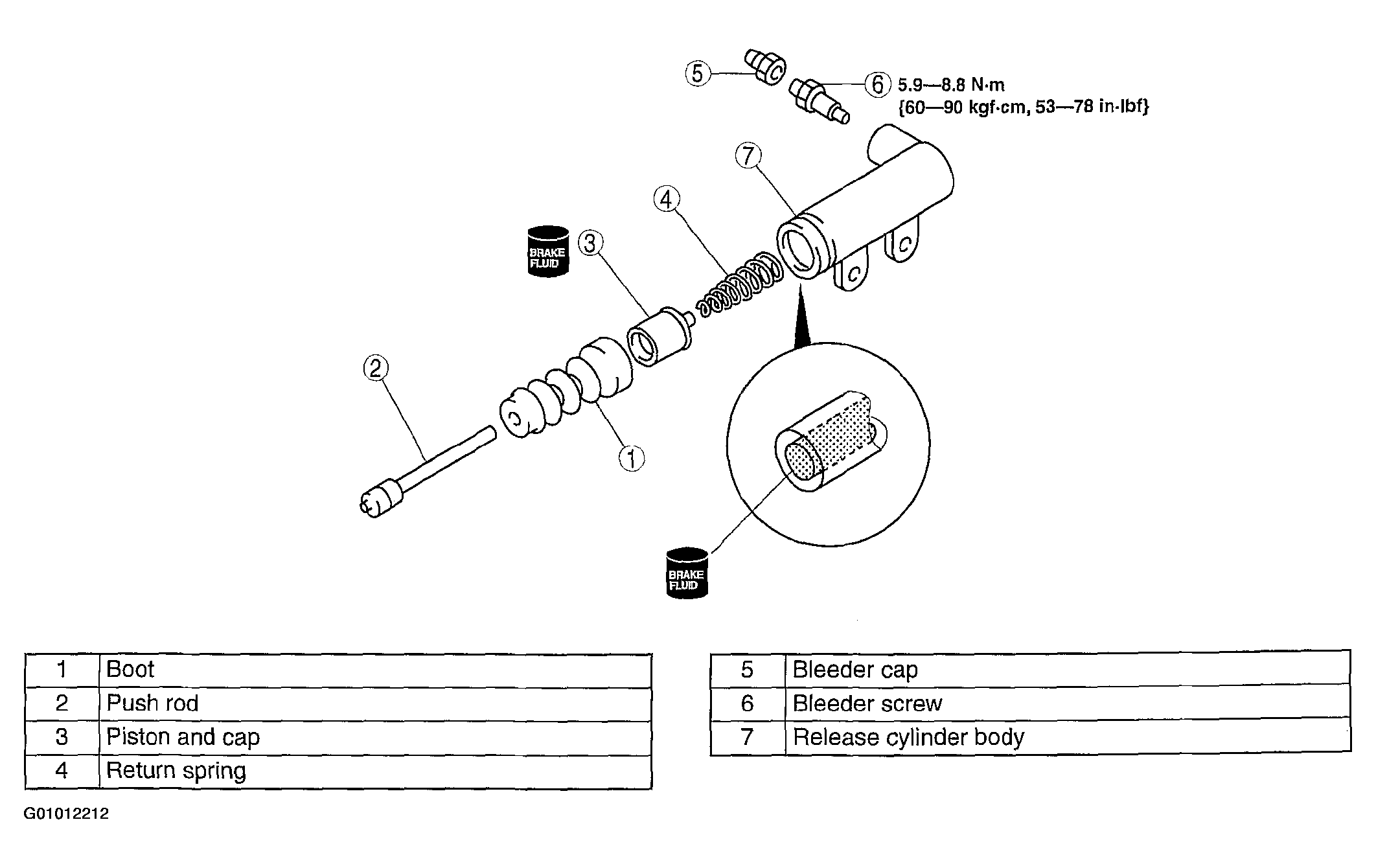

Fig 1: Disassembling/Assembling Clutch Release Cylinder
G01012212Courtesy of MAZDA MOTORS CORP.
