Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.
  4. After installation, inspect the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT .)

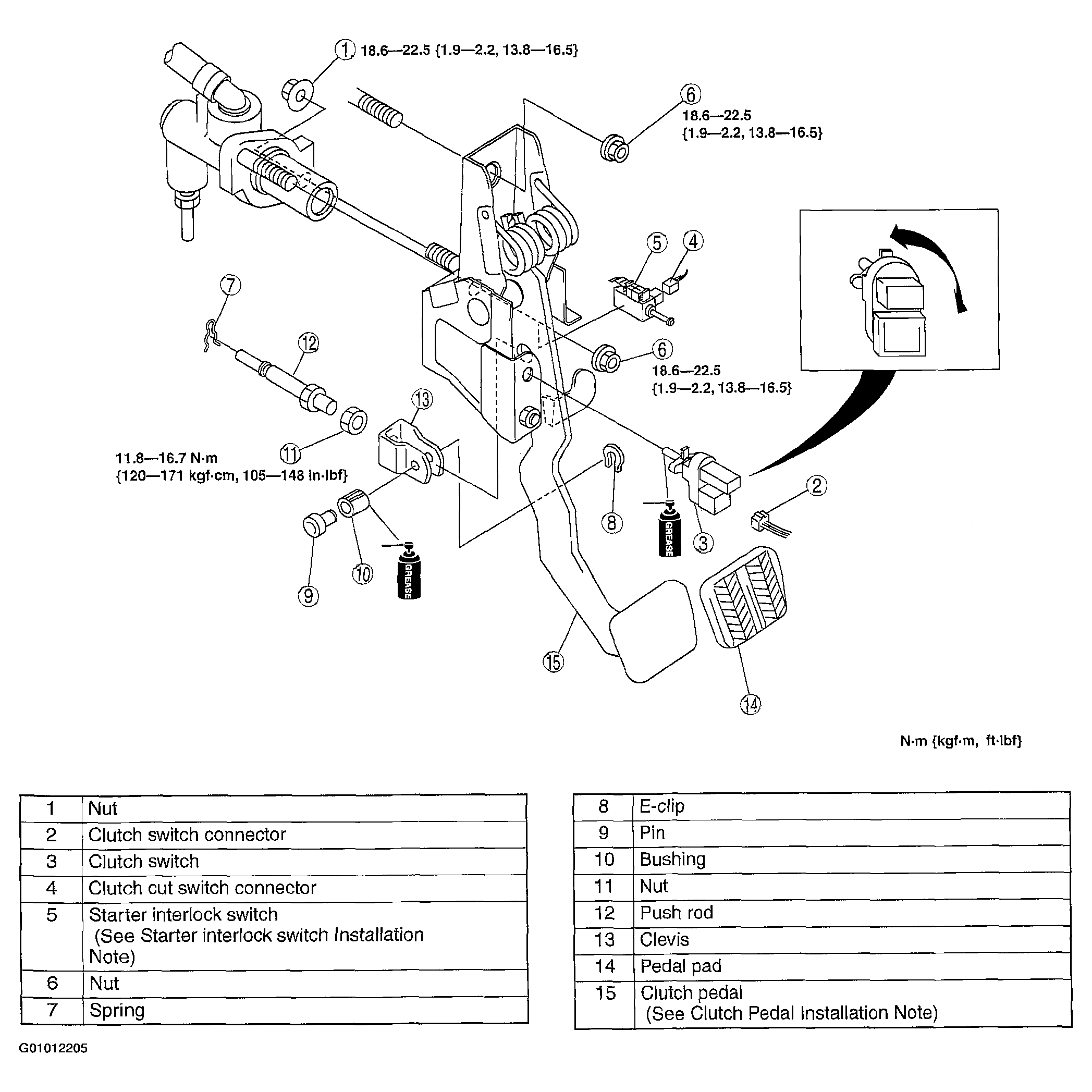

Fig 1: Removing/Installing Clutch Pedal
G01012205Courtesy of MAZDA MOTORS CORP.
