Quick Diagnosis Chart

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

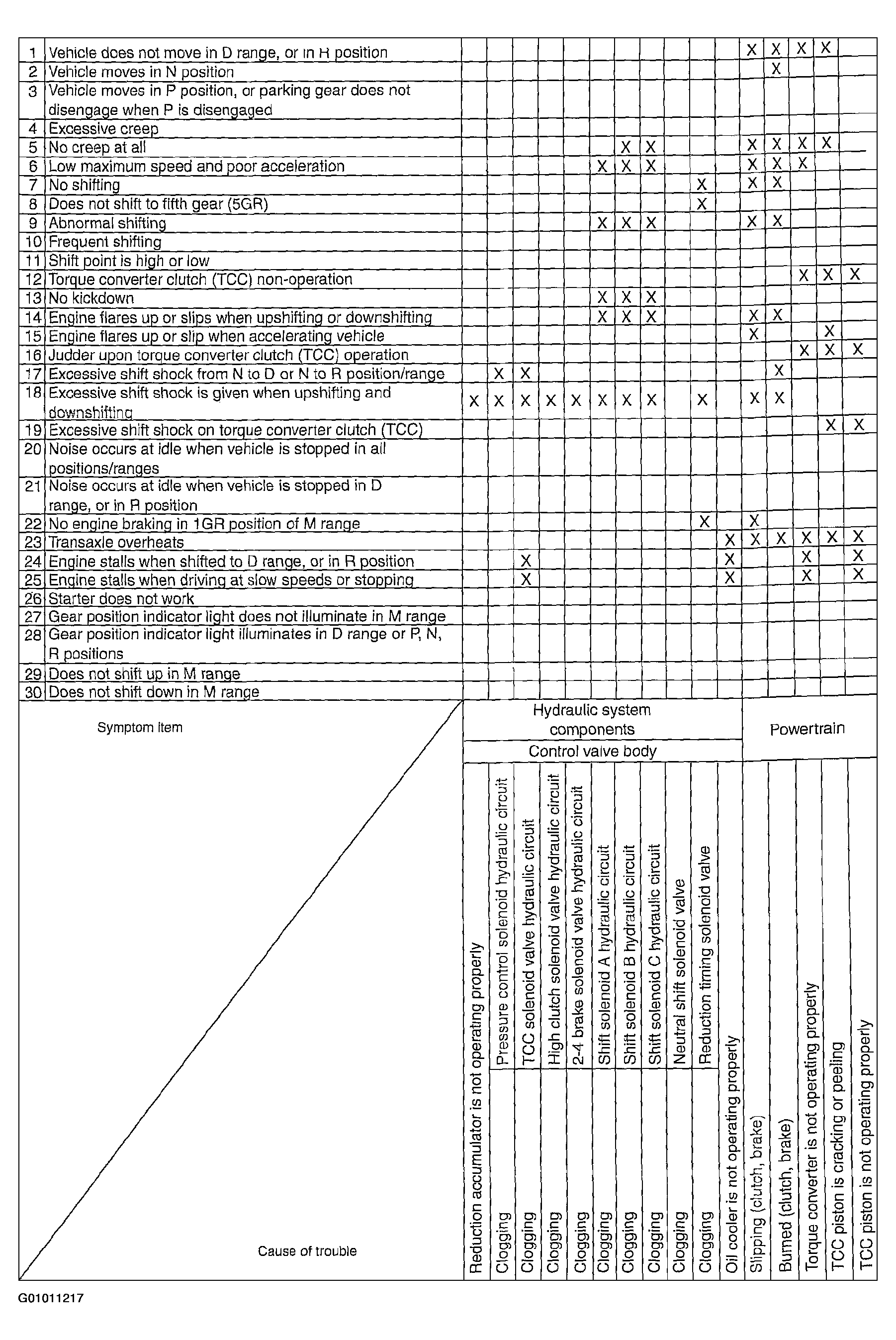

Fig 1: Quick Diagnosis Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

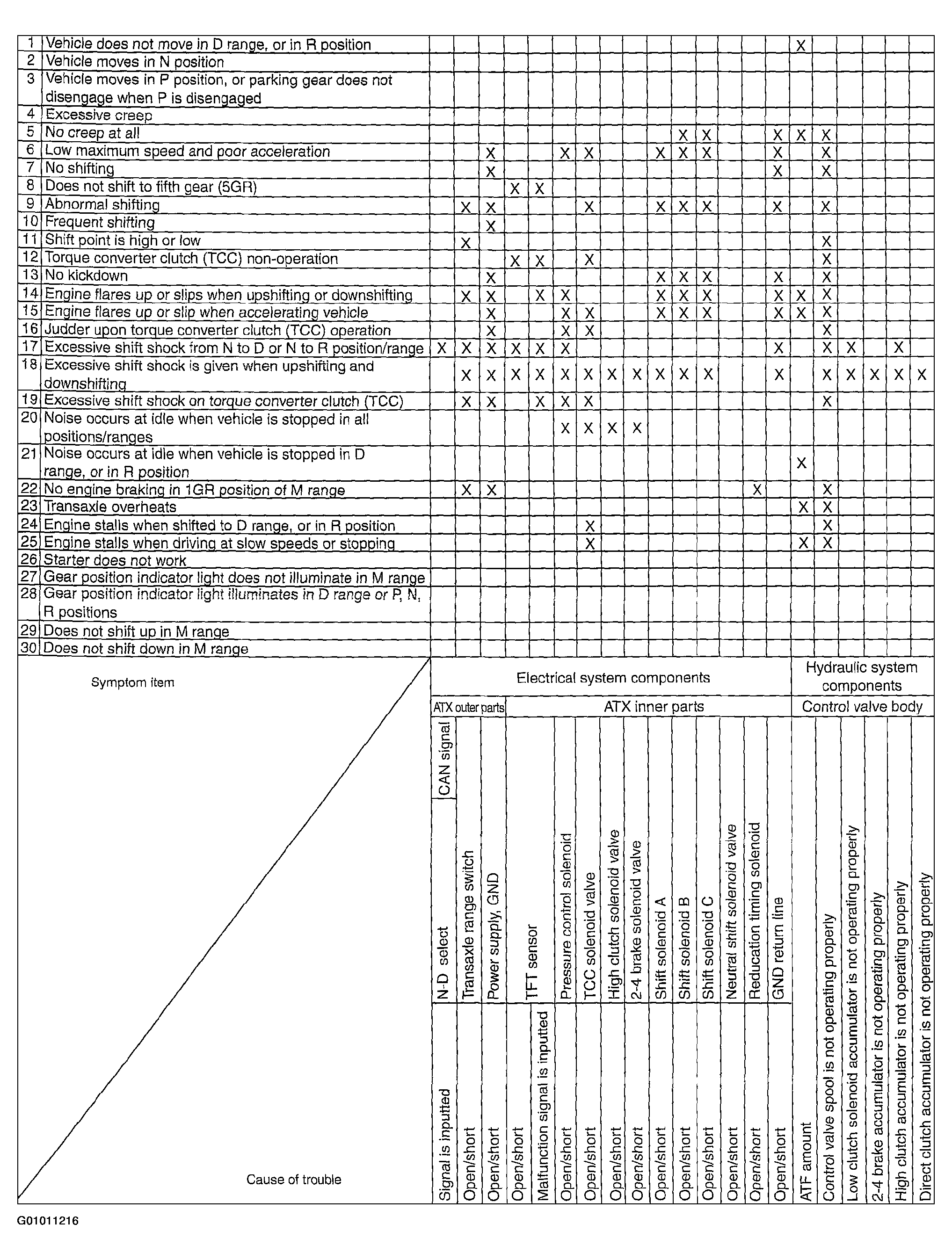

Fig 2: Quick Diagnosis Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

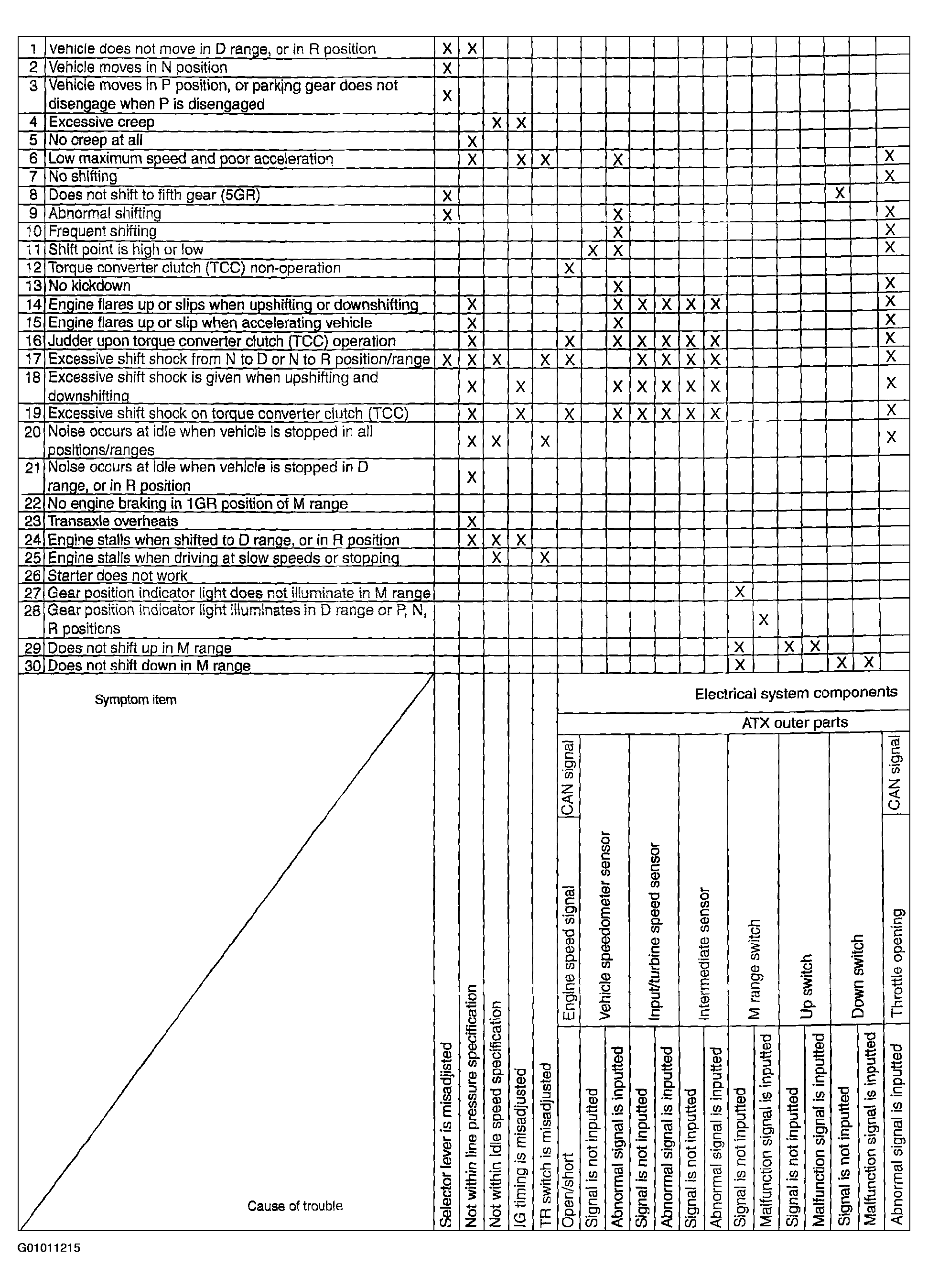

Fig 3: Quick Diagnosis Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
