Basic Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

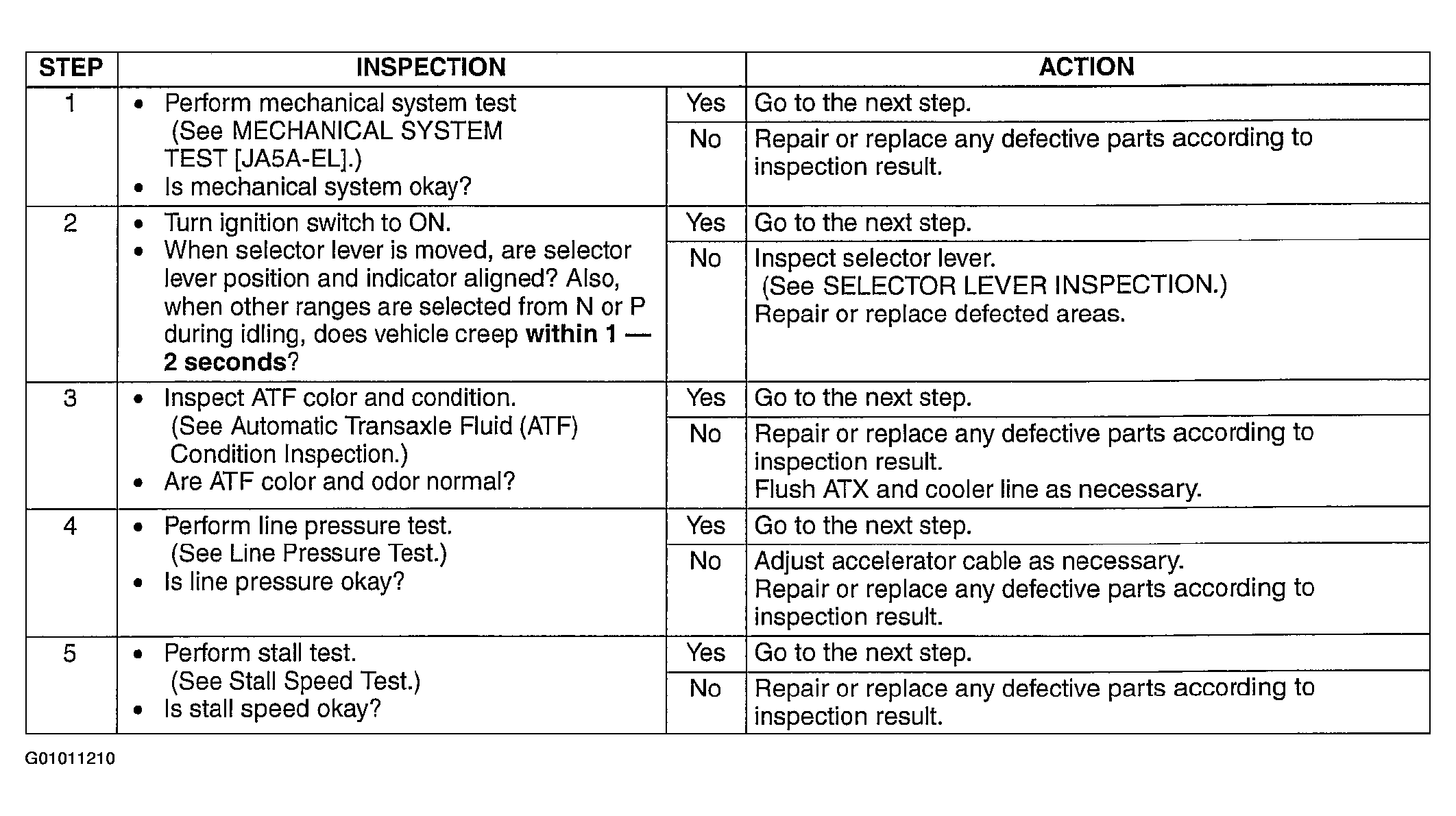

Fig 1: Basic Inspection (Steps 1 - 5)

Courtesy of MAZDA MOTORS CORP.

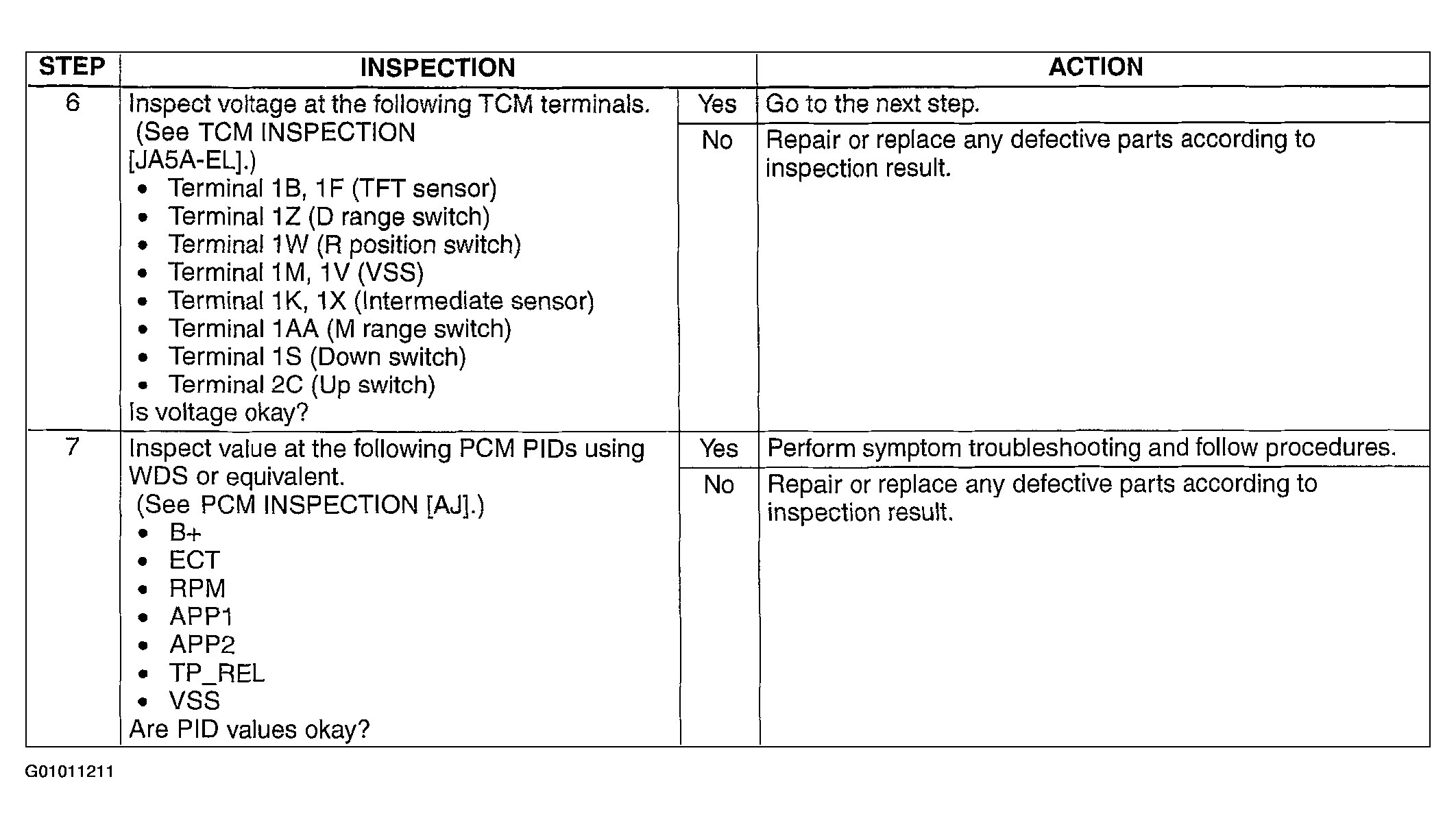

Fig 2: Basic Inspection (Steps 6 & 7)

Courtesy of MAZDA MOTORS CORP.
