Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION )
Inspect for continuity between the wiper and washer switch terminals using an ohmmeter.

If not as specified, replace the wiper and washer switch.

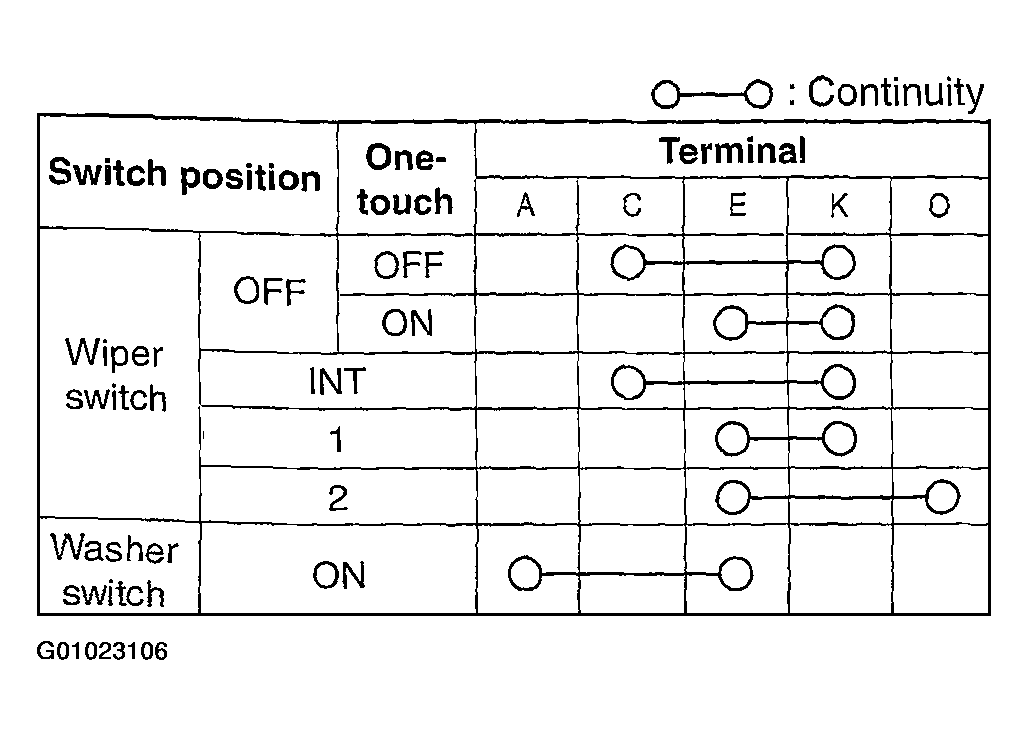

Fig 1: Wiper & Washer Switch Continuity
Courtesy of MAZDA MOTORS CORP.

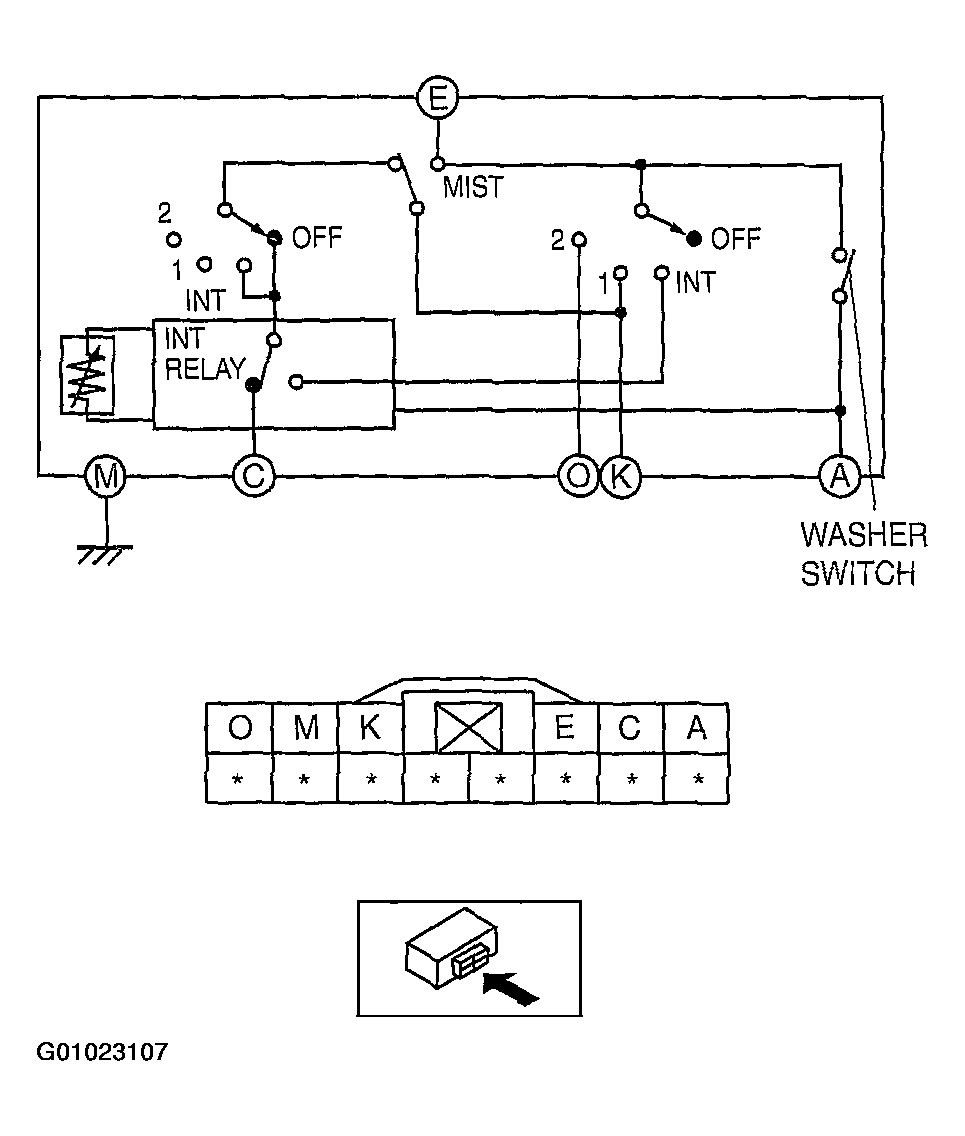

Fig 2: Identifying Wiper & Washer Switch Terminals
Courtesy of MAZDA MOTORS CORP.
