Windshield Wiper Arm And Blade Adjustment

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Operate the windshield wiper motor to set the wipers in the park position.
Set the windshield wiper arm heights as shown.

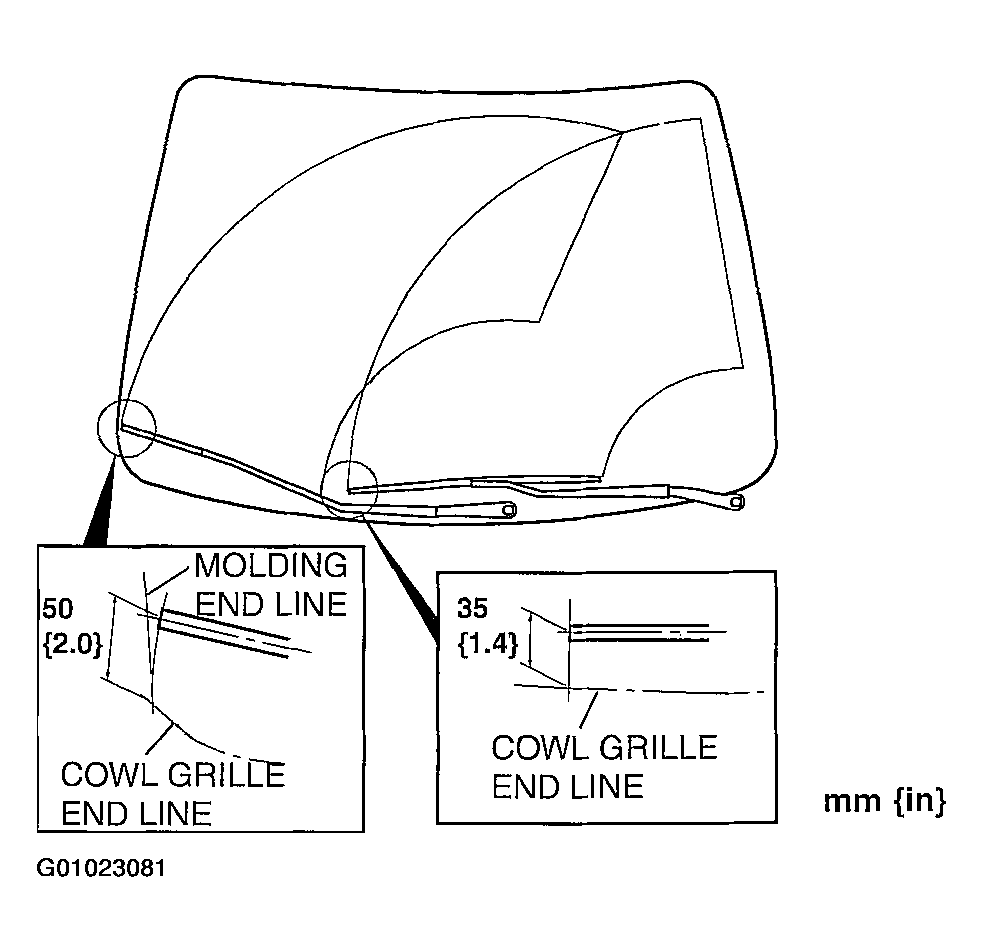

Fig 1: Setting Windshield Wiper Arm Heights
Courtesy of MAZDA MOTORS CORP.
