Washer Tank Removal/Installation [4SD]: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front bumper.
Remove in the order indicated in Fig 1.

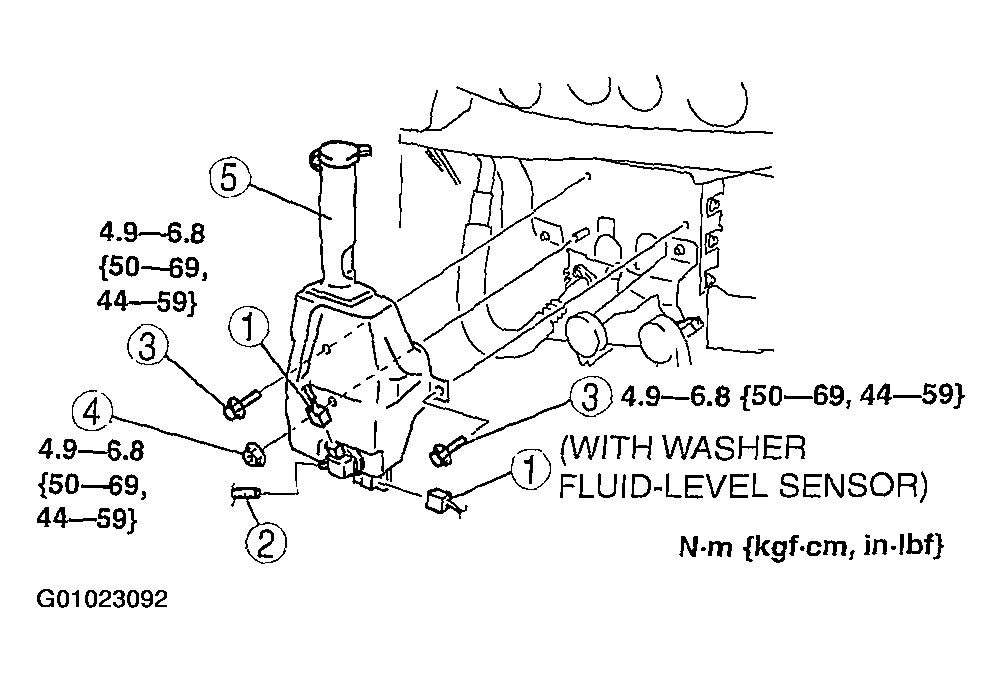

Fig 1: Removal Order Of Washer Tank - 4SD
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Fig 2: Removing/Installing Washer Tank - 4SD
Courtesy of MAZDA MOTORS CORP.
