Rear Wiper Arm And Blade Removal/Installation [5HB, WGN]: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in Fig 1.

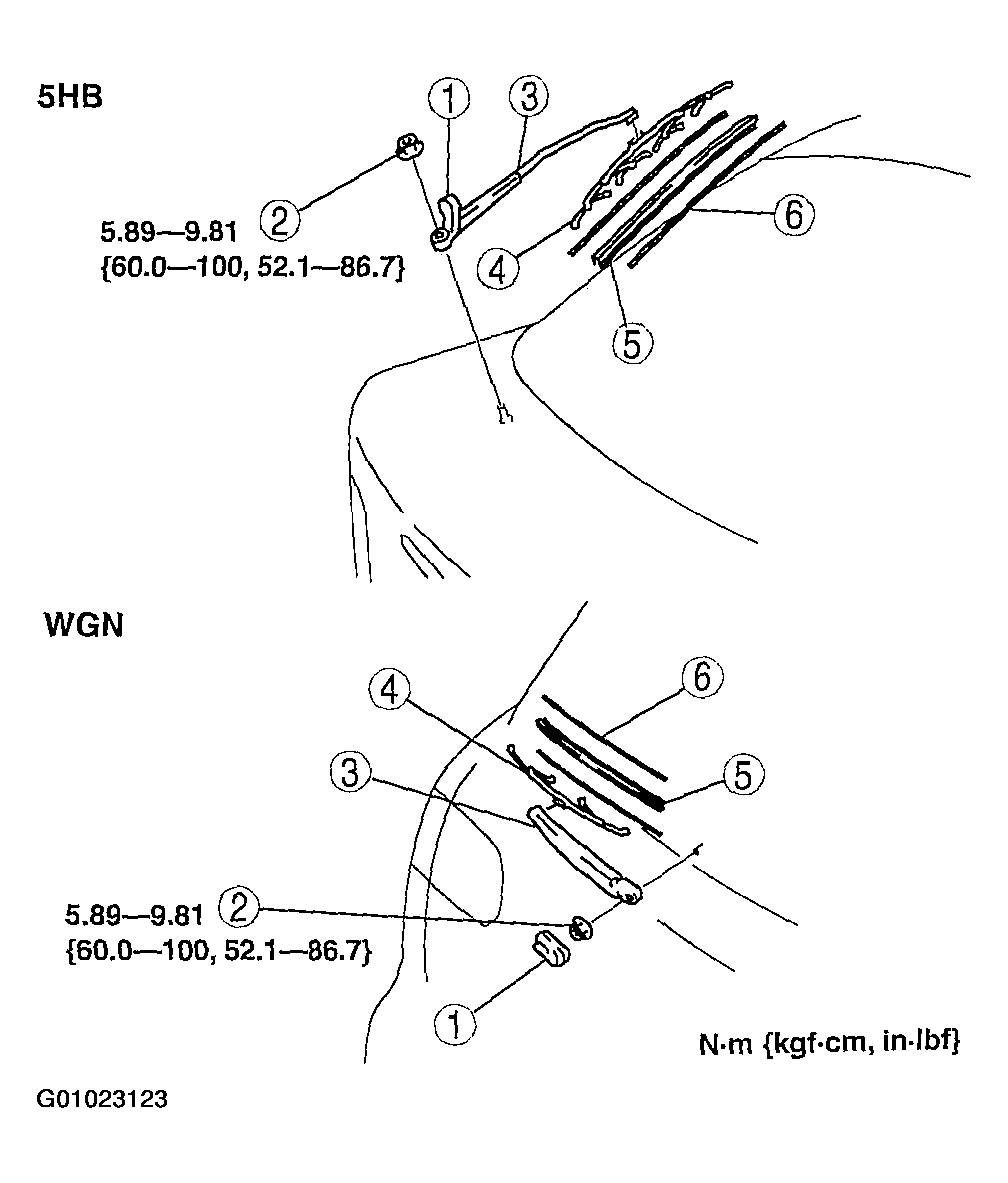

Fig 1: Removal Order Of Rear Wiper Arm & Blade - 5HB, WGN
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT [5HB, WGN] )

Fig 2: Removing/Installing Rear Wiper Arm & Blade - 5HB, WGN
Courtesy of MAZDA MOTORS CORP.
