Rear Washer Nozzle Adjustment [5HB, WGN]

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Insert a needle or an equivalent tool into the spray hole of the rear washer nozzle and adjust the nozzle direction as shown.

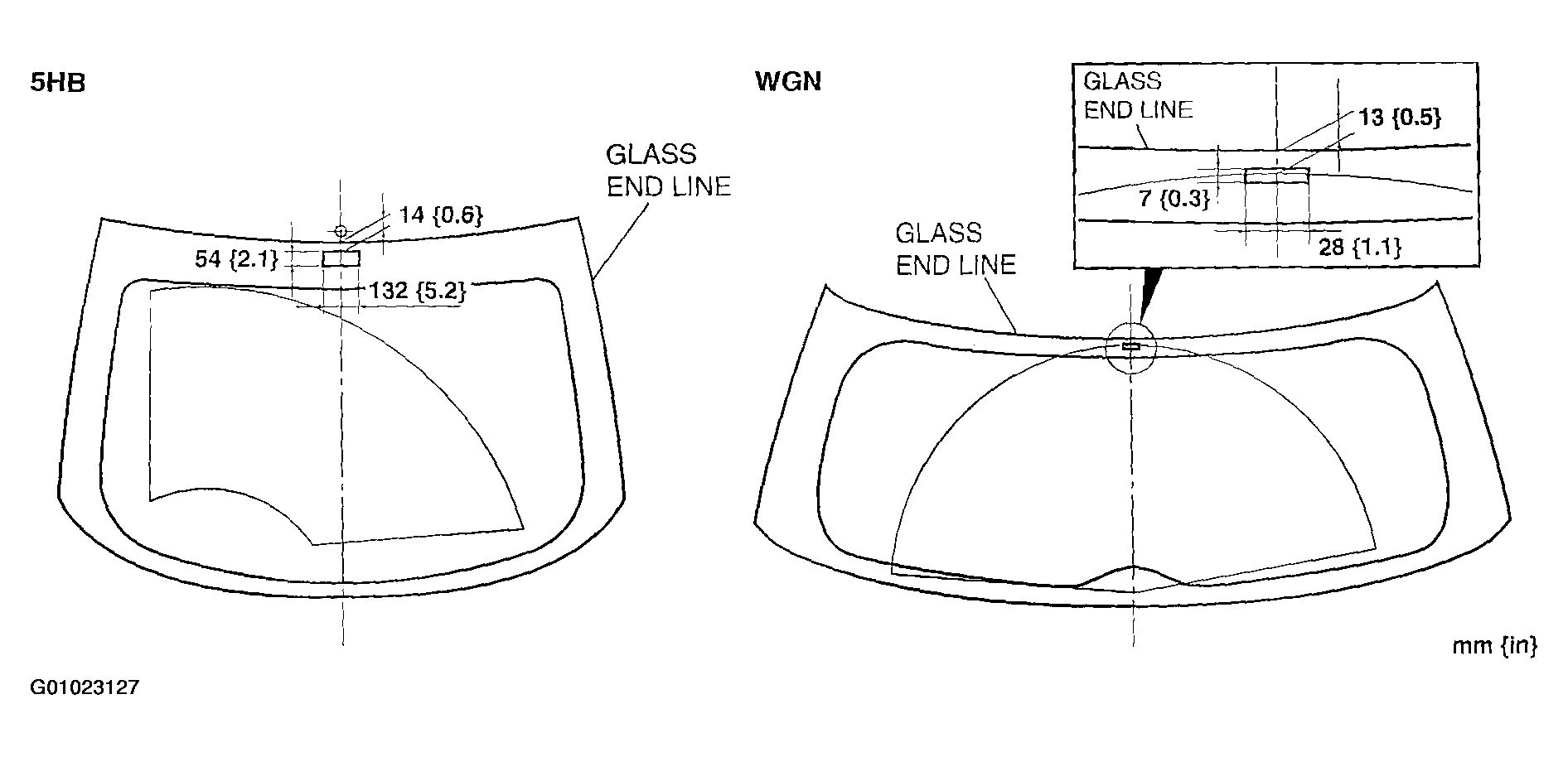

Fig 1: Adjusting Rear Washer Nozzle - 5HB, WGN

Courtesy of MAZDA MOTORS CORP.
