Intermittent Rear Wiper Relay Removal/Installation [5HB, WGN] 5HB: WGN

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk side trim.
Remove in the order indicated in Fig 1.

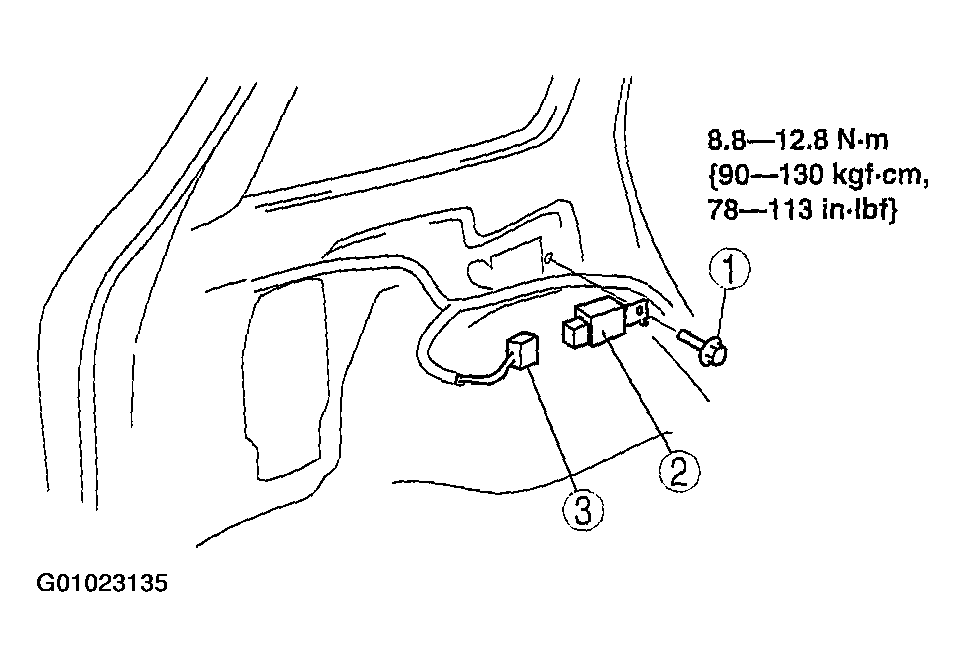

Fig 1: Removal Order Of Intermittent Rear Wiper Relay - WGN
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Fig 2: Removing/Installing Intermittent Rear Wiper Relay - WGN
Courtesy of MAZDA MOTORS CORP.
