Transmission Range Sensor/Switch: Tribute
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Place transmission in "N" position. Disconnect negative battery cable, then disconnect positive battery cable. Remove battery and battery tray. Remove breather tube, MAF and IAT sensors. Remove air intake and air cleaner, then remove thermostat housing. Disconnect transmission range sensor electrical connector. Loosen transmission range sensor mounting bolts.

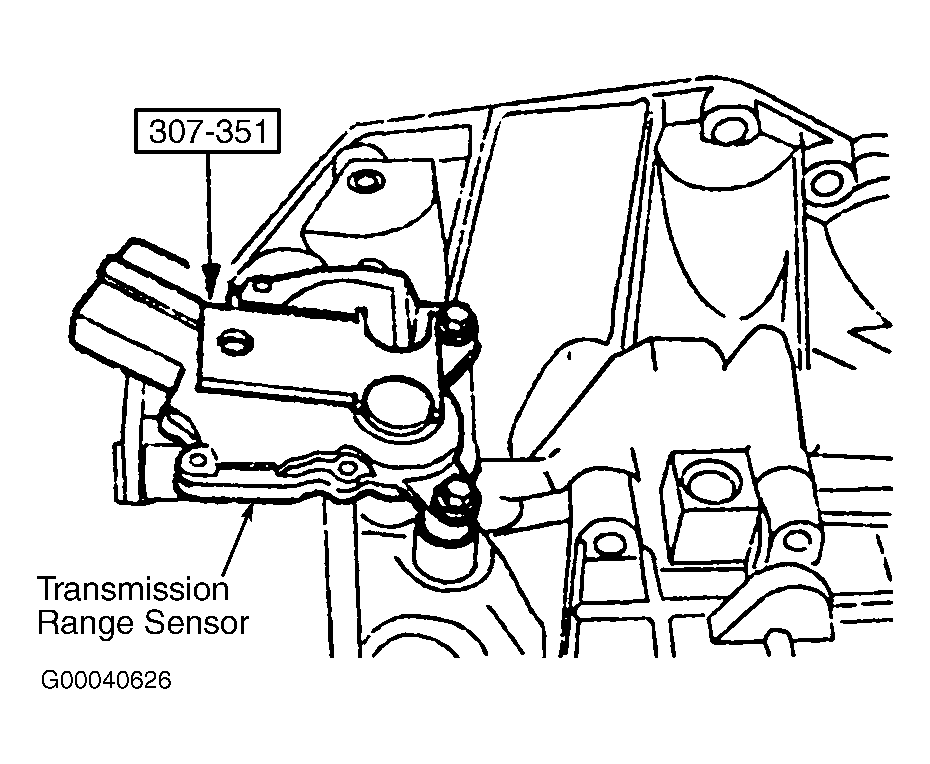

- Ensure transaxle in "N" position. Using alignment bracket (307-351), align transmission range selector. See Fig 1. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Check correct operation of sensor with parking brake applied. Engine should start only when transmission is placed in "N" and "P" positions. Backup lights should activate with transmission in "R" position.
