WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

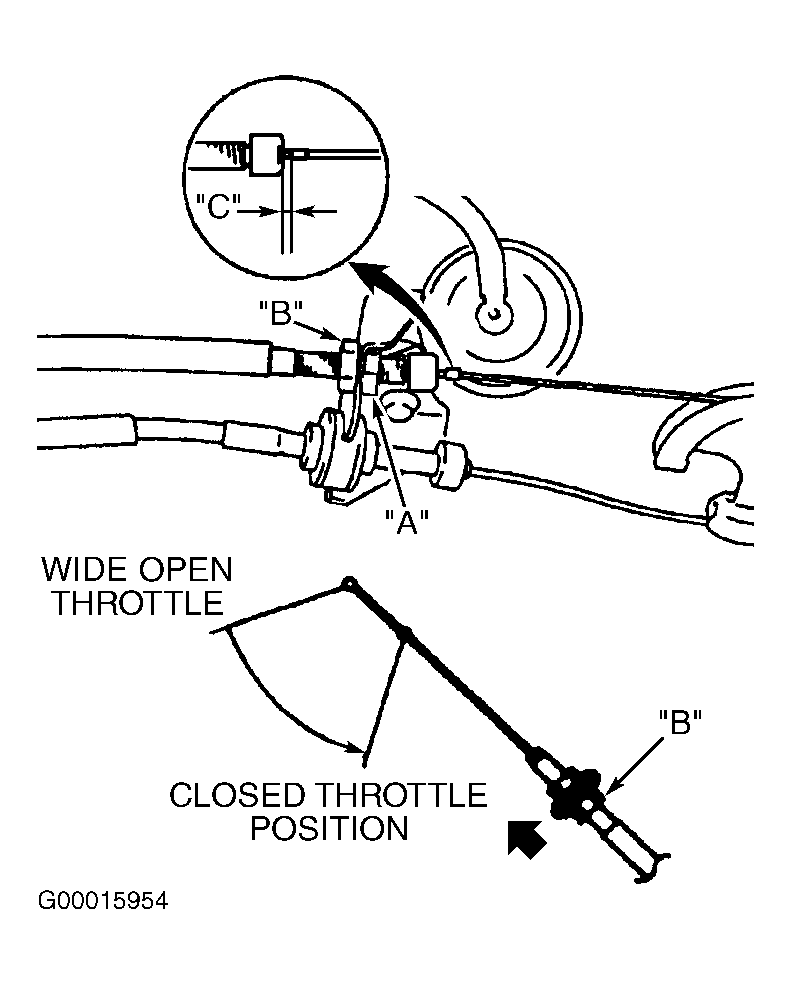

Loosen adjusting nuts "A" and "B". With throttle lever closed, adjust nut "B" to wide open throttle position. See Fig 1. Tighten nut by hand. With throttle lever in closed position, push down on throttle cable, and tighten nut "A" to specification. See TORQUE SPECIFICATIONS . Ensure cable does not come off bracket. Throttle cable adjustment should be .03-.05" (.8-1.5 mm) at nut "A". Move throttle cable and verify smooth operation.
