Overdrive-Front Band: B-Series
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

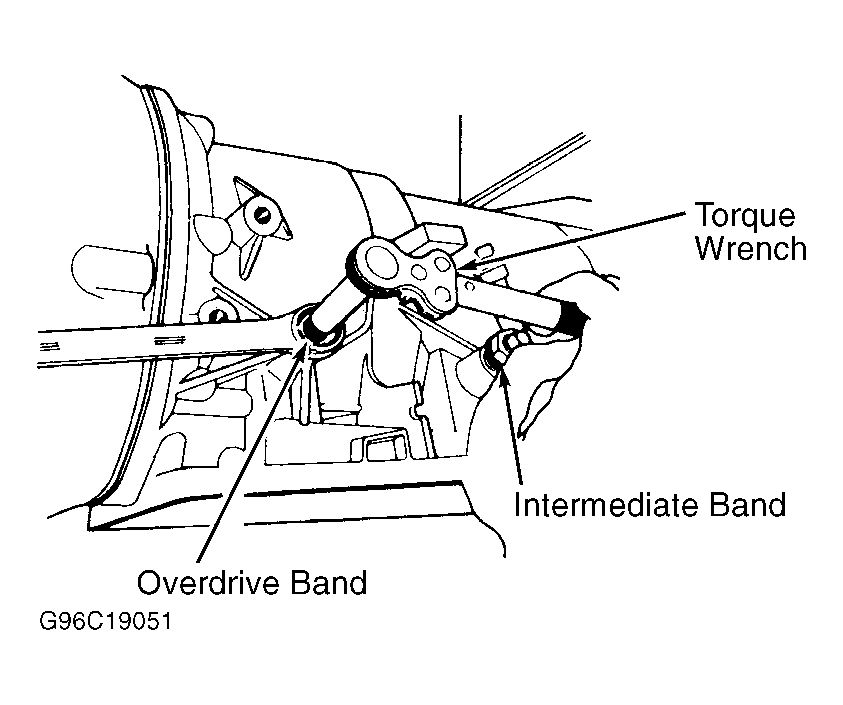

Raise and support vehicle. Remove shifter cable and transmission range sensor. Remove and discard overdrive-front band lock nut. Using torque wrench, tighten overdrive-front band adjustment screw to specification. See TORQUE SPECIFICATIONS . Back off overdrive-front band adjustment screw exactly 2 turns, and hold position. Apply petroleum jelly to locknut seal, and install NEW overdrive-front band locknut. While holding overdrive-front band adjustment screw stationary, tighten overdrive-front band lock nut to specification. See TORQUE SPECIFICATIONS . See Fig 1. Install shifter cable and transmission range sensor. Lower vehicle.
