Gearshift Lever: Millenia

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner assembly. Place gearshift lever in Park. Loosen gearshift selector cable mounting nut at transaxle. Push selector cable toward cable bellows and hold position.
  2. Center nut on selector cable in a no-load position. See Fig 1. Tighten selector cable mounting nut to Specification. See TORQUE SPECIFICATIONS . Install air cleaner assembly. Move gearshift selector through all positions ensuring no components interfere with lever.

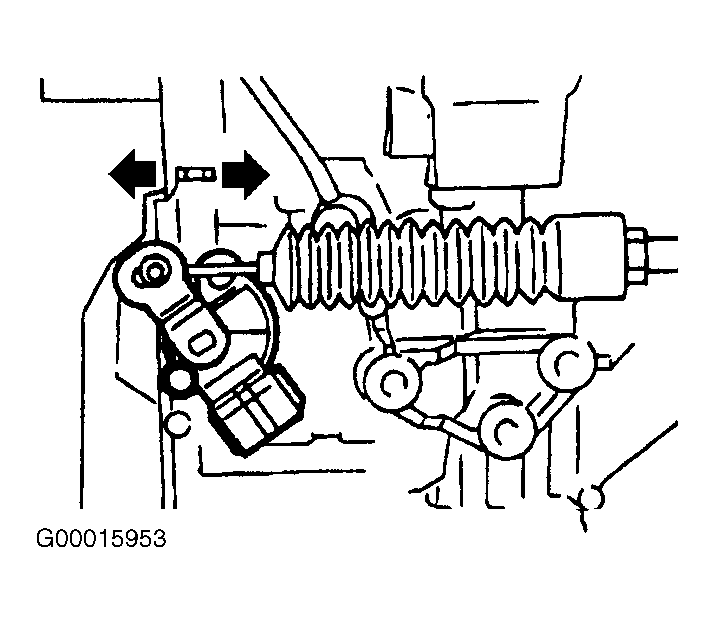

Fig 1: Adjusting Gearshift Selector Cable (Millenia)
G00015953Courtesy of MAZDA MOTORS CORP.
