Liftgate Latch And Lock Actuator Removal/Installation [5HB, WGN]

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim.
  3. Remove the liftgate side trim.
  4. Remove the liftgate lower trim.
  5. Remove in the order indicated in Fig 1.
    Fig 1: Removal Order Of Liftgate Latch & Lock Actuator - (5HB, WGN)
    G01026845Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.

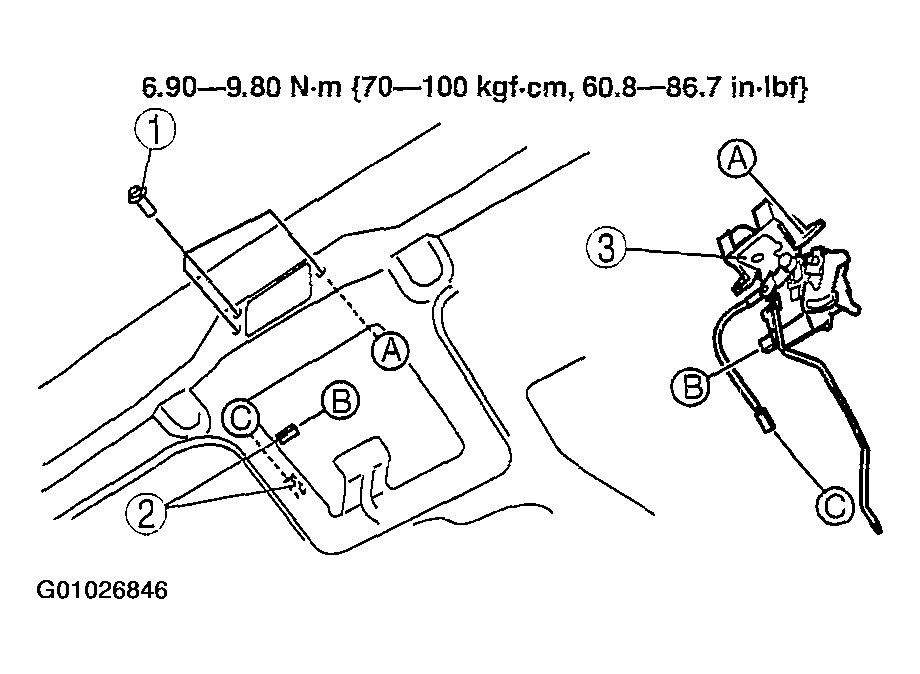

Fig 2: Removing/Installing Liftgate Latch & Lock Actuator - (5HB, WGN)
G01026846Courtesy of MAZDA MOTORS CORP.
