Oil Pump Sprocket Removal/Installation Note (AJ)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the oil pump bolts in the order as shown in the illustration.

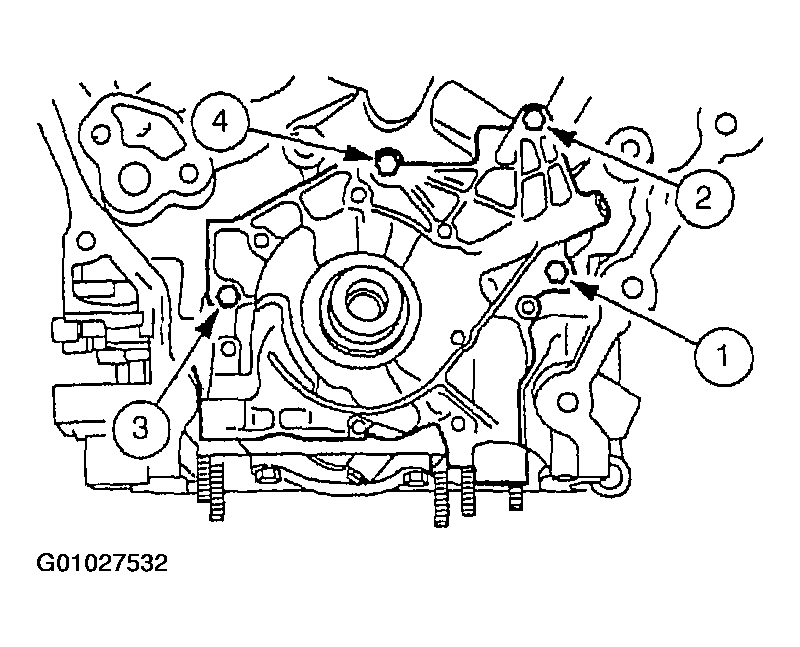

Fig 1: Oil Pump Bolts Loosening Sequence (AJ)
Courtesy of MAZDA MOTORS CORP.
