Oil Pump Installation Note (AJ)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the oil pump bolts in the order as shown in the illustration.

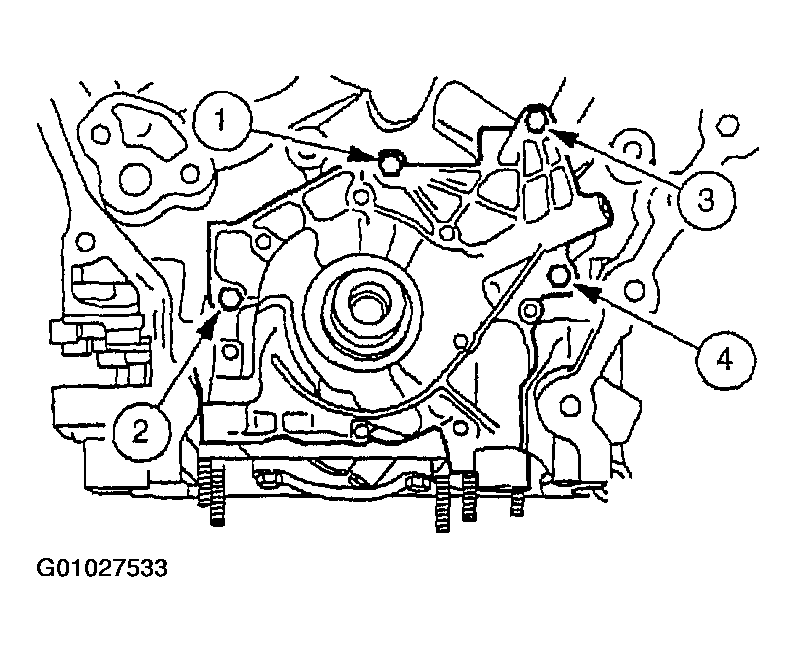

Fig 1: Oil Pump Bolts Tightening Sequence (AJ)
Courtesy of MAZDA MOTORS CORP.
