Oil Pan Installation Note (L3)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Use a square ruler to align the junction of the oil pan and the cylinder block on the engine front cover side.

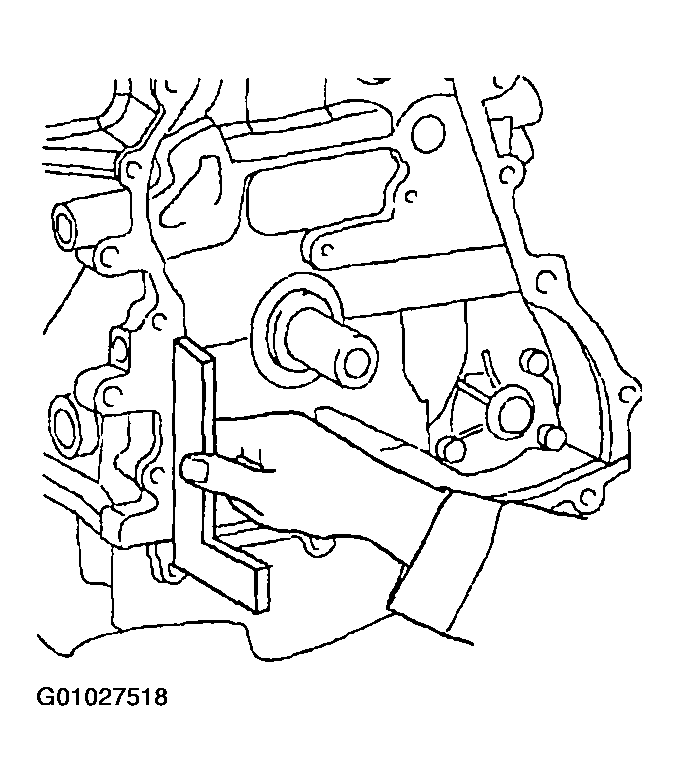

Fig 1: Aligning Junction Of Oil Pan And Cylinder Block Using Square Ruler
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the oil pan along the inside of the bolt holes.

Fig 2: Applying Silicone Sealant To Oil Pan
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in the order as shown in the illustration.

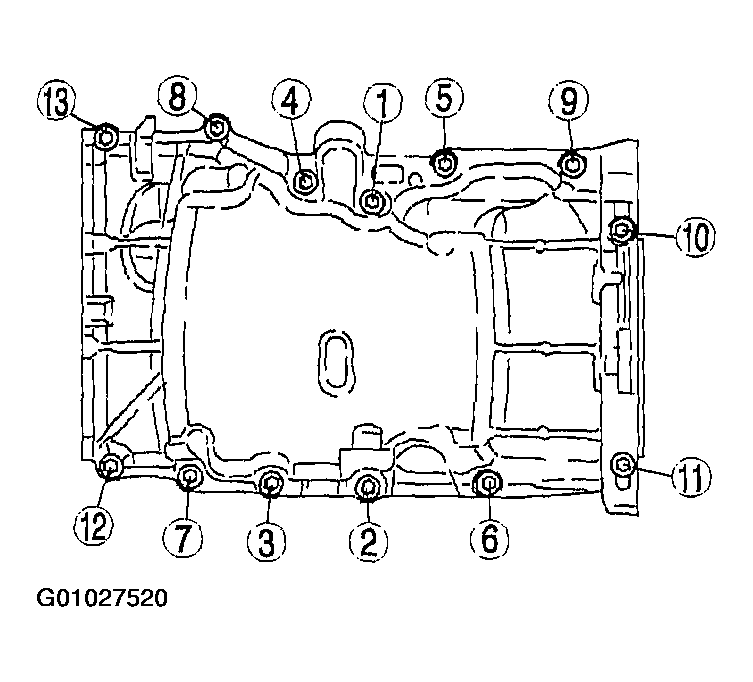

Fig 3: Oil Pan Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
