Oil Pan Installation Note (AJ)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pan bolts and studs as shown in the illustration.

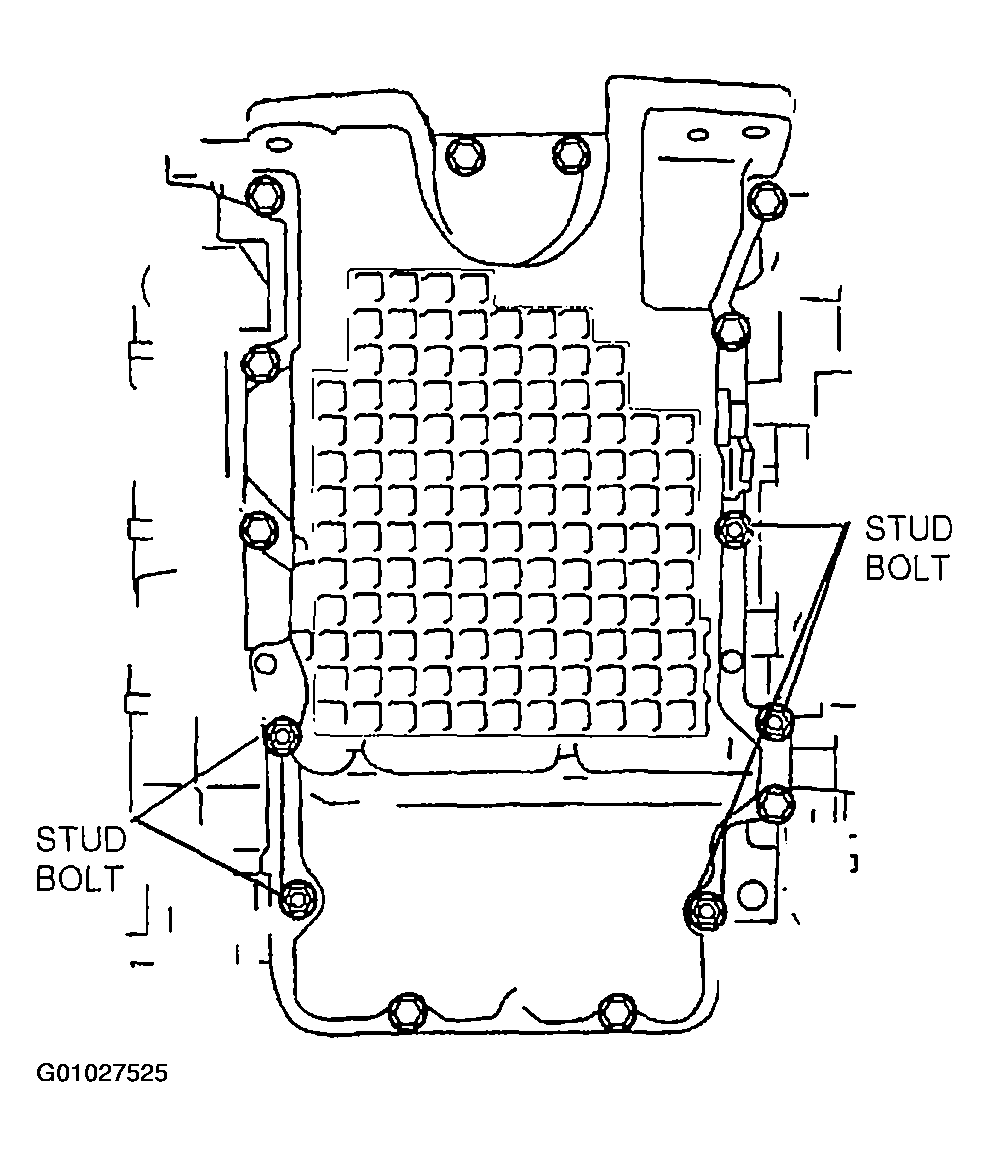

Fig 1: Oil Pan Bolts And Studs Installing Sequence
Courtesy of MAZDA MOTORS CORP.
Tighten the transaxle housing bolts to oil pan.

Fig 2: Tightening Transaxle Housing Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the oil pan bolts and studs in several passes in the order as shown in the illustration.

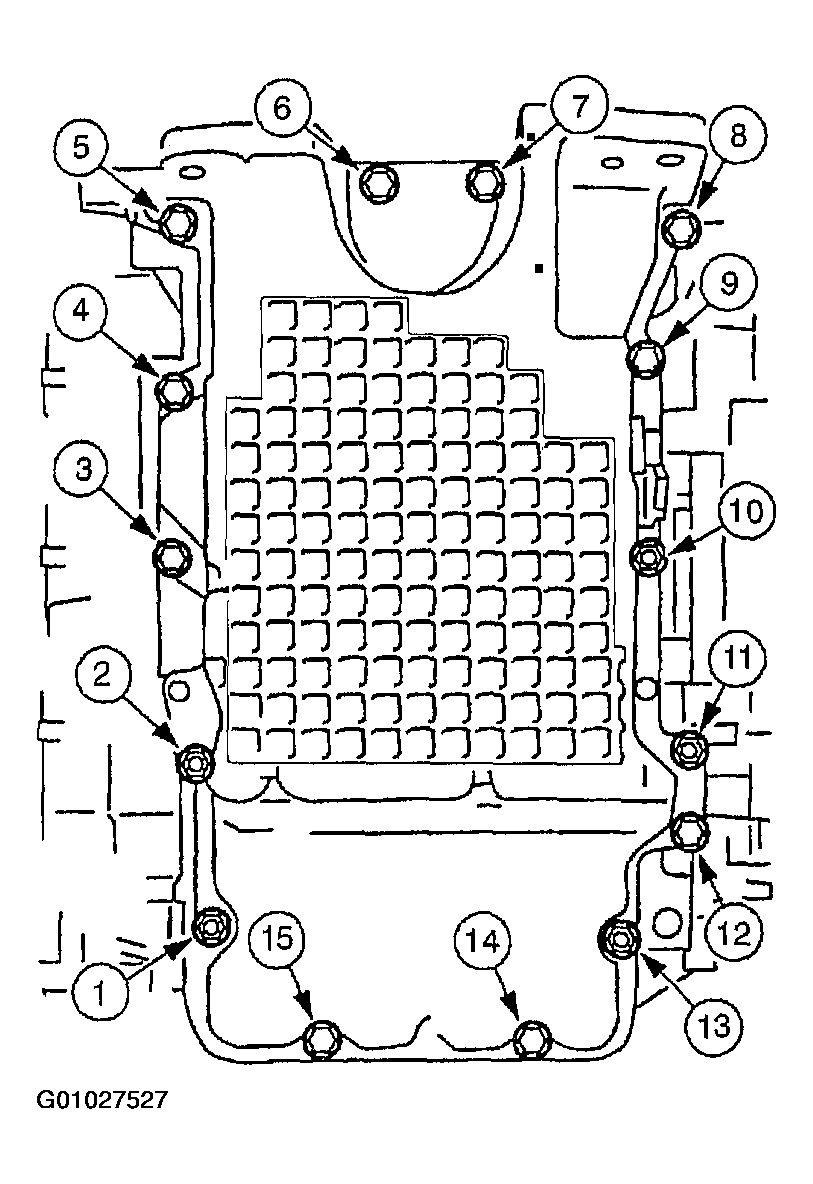

Fig 3: Oil Pan Bolts And Studs Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
